Vehicle System Disassembly & Assembly 10
Install Mast
1. Install the mast on the frame of the vehicle. The
weight of the mast is approximately 2600 to 4400
kg (5732 to 9700 lb).
2. Start the engine. Operate the control lever for the
tilt cylinders until the holes in the cylinder rods are
aligned with the holes in the mast.

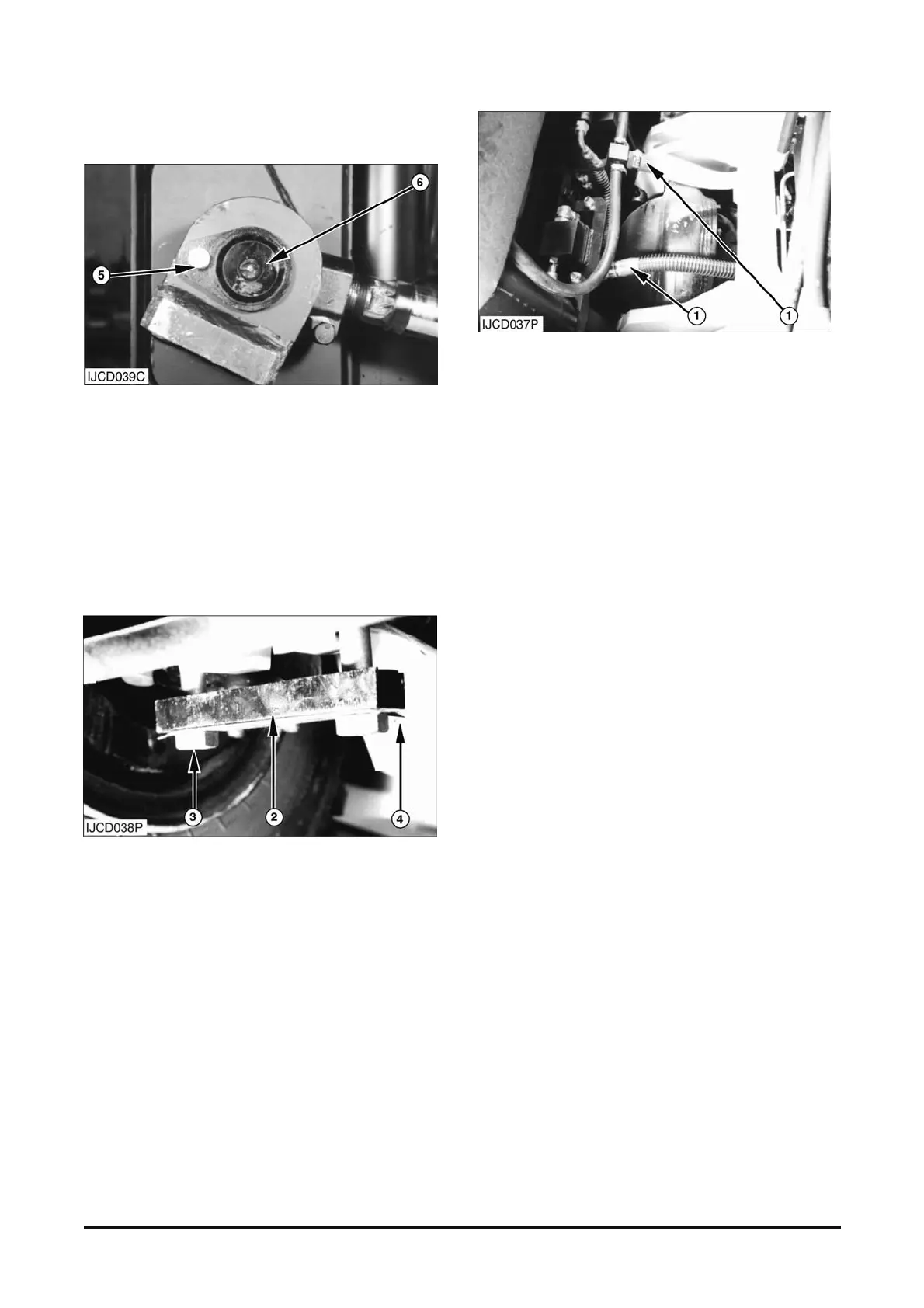

3. Install two pins (6). Install bolts (5) and retainers
to hold both pins in place.
4. Install bolts (3), clip (4) and block (2) on each side.
Torque bolts (3) to 800 ± 100 N•m (590 ± 74 lb•ft).
5. Bend back the tabs on clips (4) against the bolt
heads.
6. Connect hydranlic lines (1).
NOTE : If lift cylinders were removed from the mast,
adjust both lift chains to equal tension. Run the mast
to full lift. If mast does not kick to either side no
shims are required. If mast does kick to one side
disconnect cylinder from support assembly on that
side. Add shims, reassemble and repeat. Repeat
process until “kicking” is corrected. Do not exceed 3
mm (.12 in) of shims.
End By :
a. Install bracket assembly carriage.
