Doosan D110S-5 with OCDB User Manual

Vehicle System Disassembly & Assembly 7

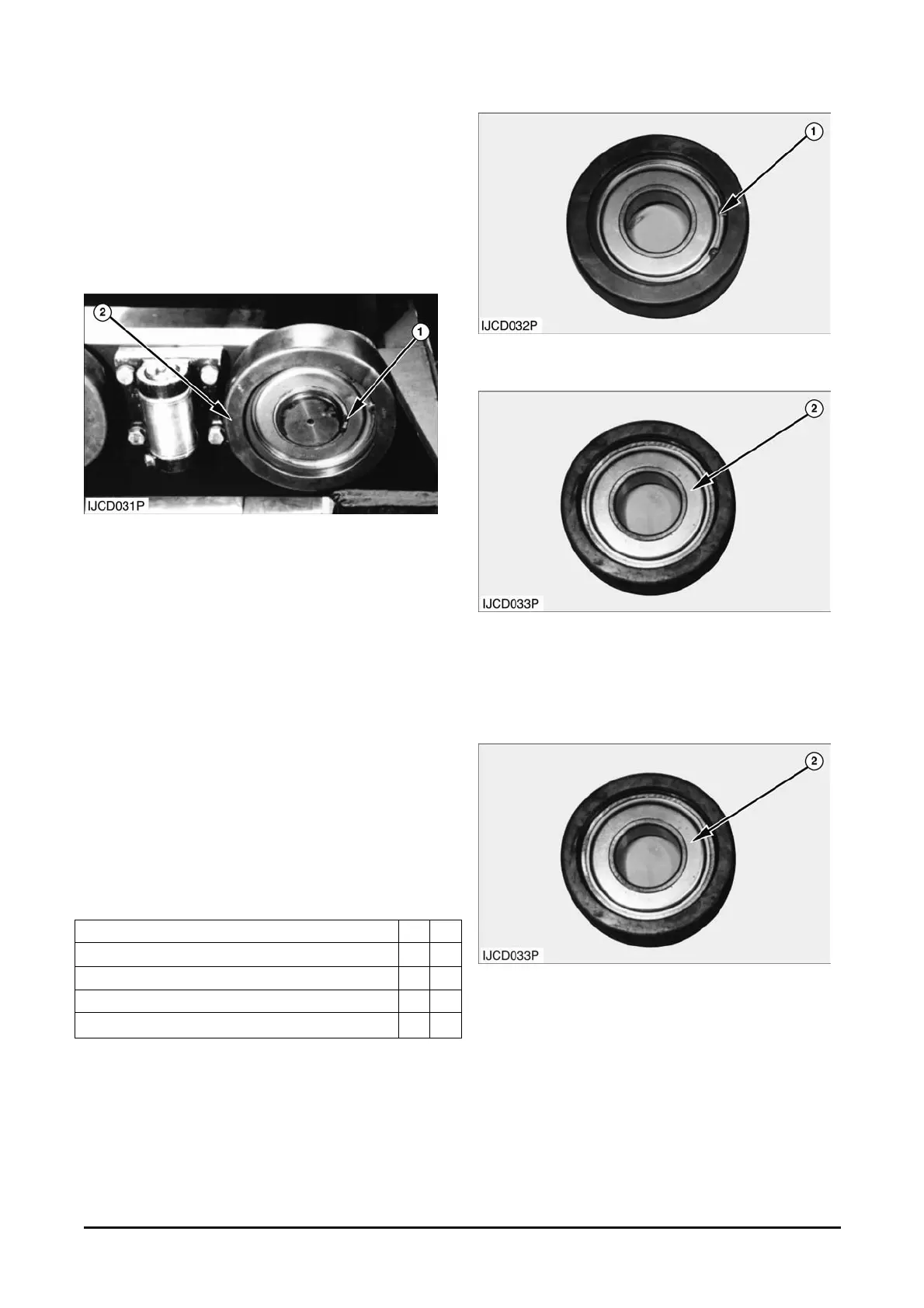

Carriage Rollers
Remove & Install Carriage Rollers
Start By :
a. Remove carriage.
1. Remove the snap ring (1) that holds the roller in
place.
2. Remove load roller (2) from the carriage.
NOTE : The following steps are for installation of the
carriage rollers.
3. Put the load roller in position on the carriage.
4. Install the snap ring that holds the roller in place.
End By :
a. Install carriage.
Disassemble & Assemble Carriage
Rollers
Tools Needed A B
Bearing Cup Puller Attachment
1
Puller Assembly
1
Ratchet Box Wrench
1
Bearing Installer
1
Start By :
a. Remove carriage rollers (load).
1. Remove snap ring (1) from the roller.
2. Remove bearing (2) from the roller using the tool
group (A).
NOTE : The following steps are for the assembly of
the carriage rollers.
3. Put (pack) clean grease in the bearings for the
load roller.
4. Install bearing (2) in the roller using tool (B).
