Vehicle System Disassembly & Assembly 14
Assembly
Tools Needed A B C
Vernier Calipers 1
Inside Vernier Calipers 1
Mast Gauge 1
1. Make sure all parts are clean and free of dirt and
foreign material.
2. Check all parts for damage. If damaged, use new
parts for replacement.

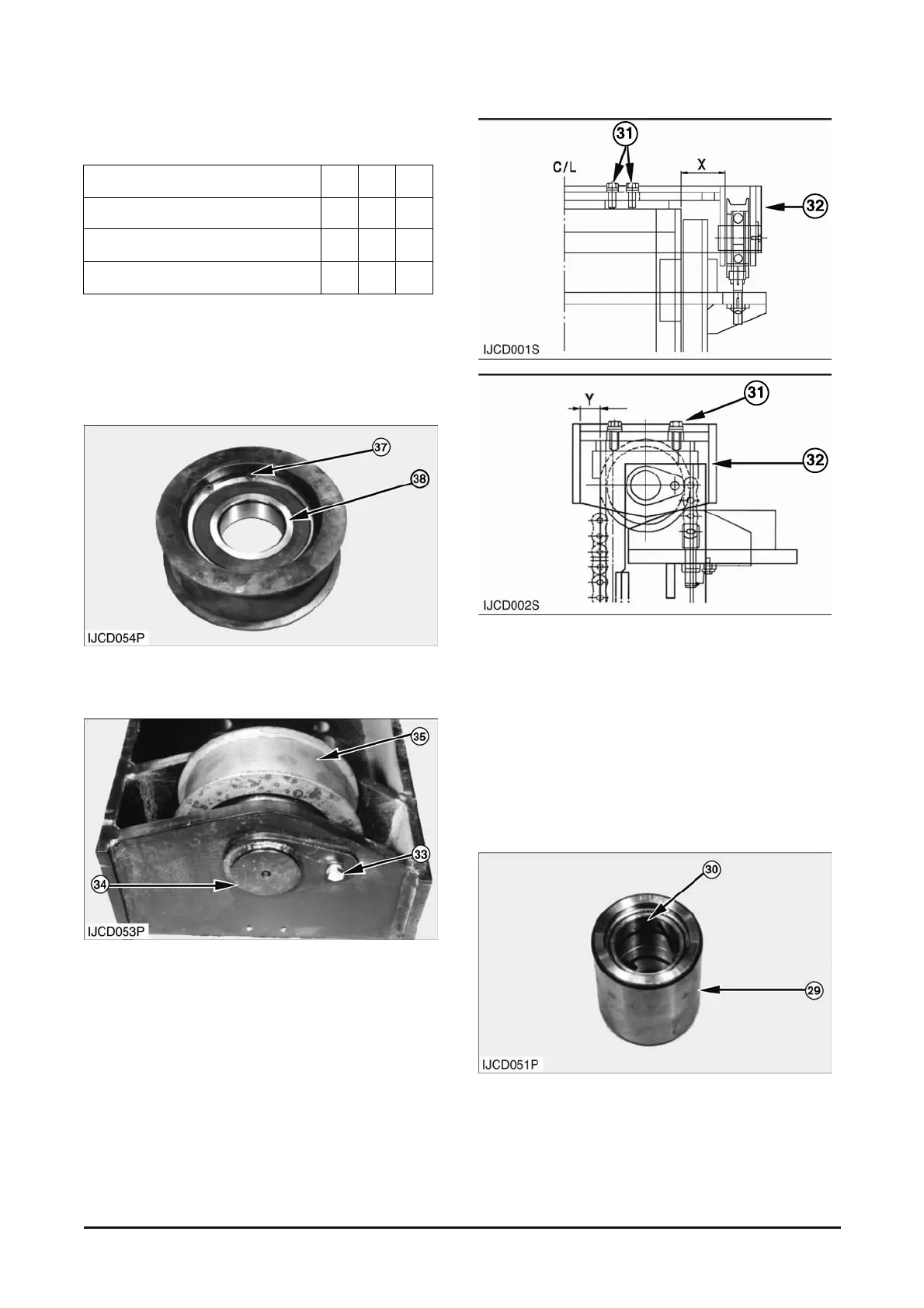

3. Install bearing (38) and snap ring (37) into the
wheel if they were removed.
4. Install chain sheaves (35), pins (34), washers and
retaining bolts (33) that hold pins (34) to the
crosshead assembly.
5. Put crosshead assembly (32) in position and
install washers and bolts (31). Adjust crosshead
assembly (32) of which distance difference (X)
between left hand and right hand should be within
1.5mm(.06 in) from side of the inner beam.
Tighten bolts.
6. When crosshead assembly (32) is assembled,
distance difference (Y) between left hand and
right hand should be within 1.5 mm (.06 in) from
front of the inner beam.
7. Install new bushes (30) into the roller.
To Next Page
