Doosan D110S-5 with OCDB User Manual

Vehicle System Disassembly & Assembly 15

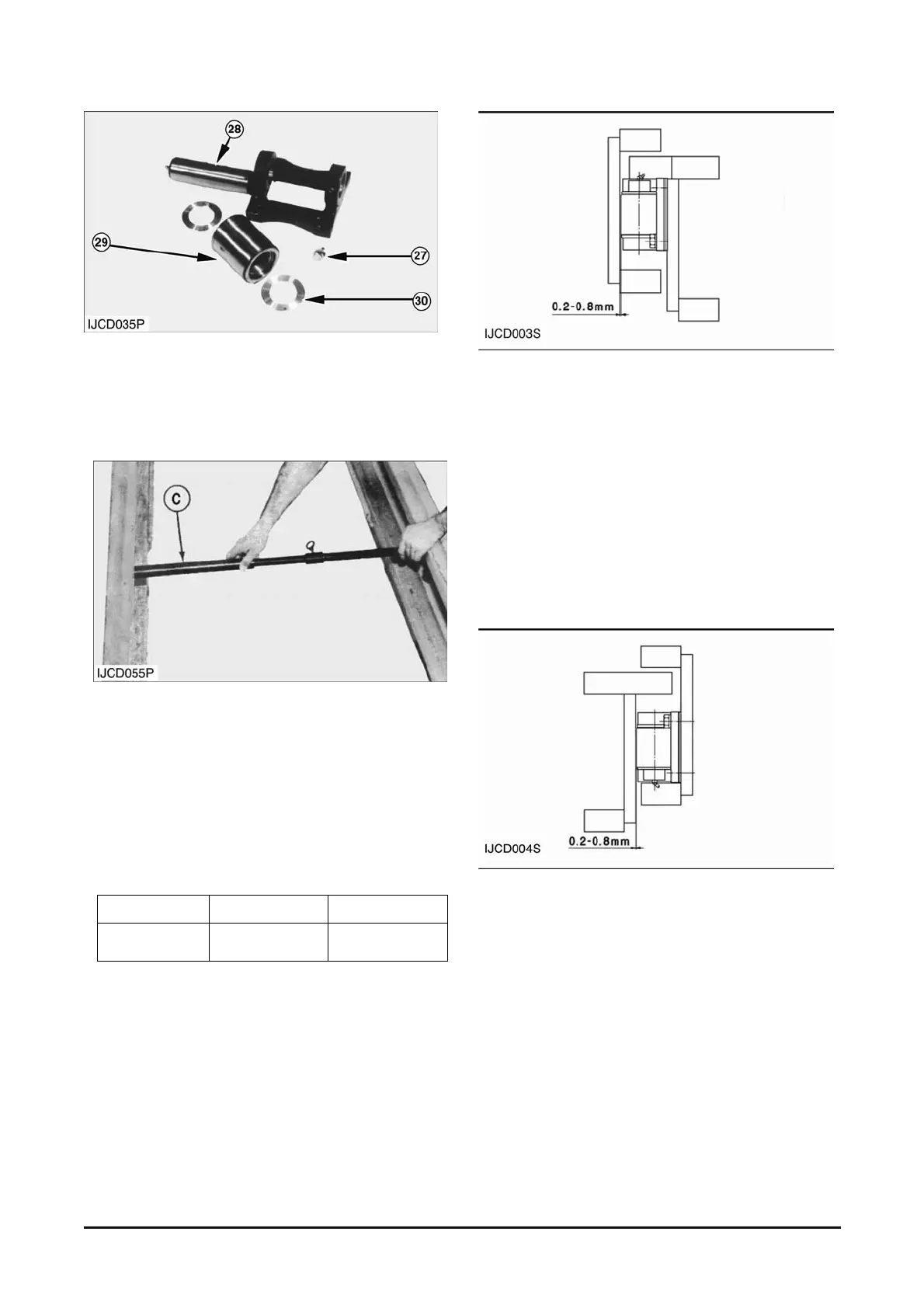

8. Install the shaft, spacers and roller (29) to the
bracket.
Install bolt (27) and washer using Loctite No.242.
Install grease fitting (28) to the shaft. Be careful
for assembling direction.
Typical Example
9. To shim the inner mast (lower) side roller, move
gauge (C) up and down inside outer mast channel
(8) to find the narrowest point across the outer
mast channels in track where the side roller travel.
Measure the channel lap which is the distance
between the outer rail upper face and inner rail
lower face. Record this measurement. The
channel lap is to be shown in the below table.
MFH 3.0~4.5 M 5.0~6.0 M
CHANNEL
LAP
1115 mm 1315 mm
10. Install the inner mast channel side roller and
bracket assemblies (22) without shims on the
inner mast.
11. Measure the distance between inner mast side
rollers with tool (A). Add shims between one of
side rollers to be 0.2~0.8 mm (.008~.031 in)
clearance.
12. Divide the shims into two groups to have the
same thickness and install them on each side of
the inner channel behind side roller and bracket
assemblies (22).
13. To shim outer mast (upper) side roller(18),
measure outside of the inner mast channel (24)
to find the widest point across the inner mast
channels in the track where side roller (18) travel
using tool (A). Record this measurement.
14. Install the outer mast channel side roller and
bracket assemblies (18) without shims on the
outer mast.
15. Measure the distance between outer mast side
rollers (18) with tool (B). Add shims between one
of side rollers to be 0.2~0.8 mm (.008~.031 in)
clearance.
