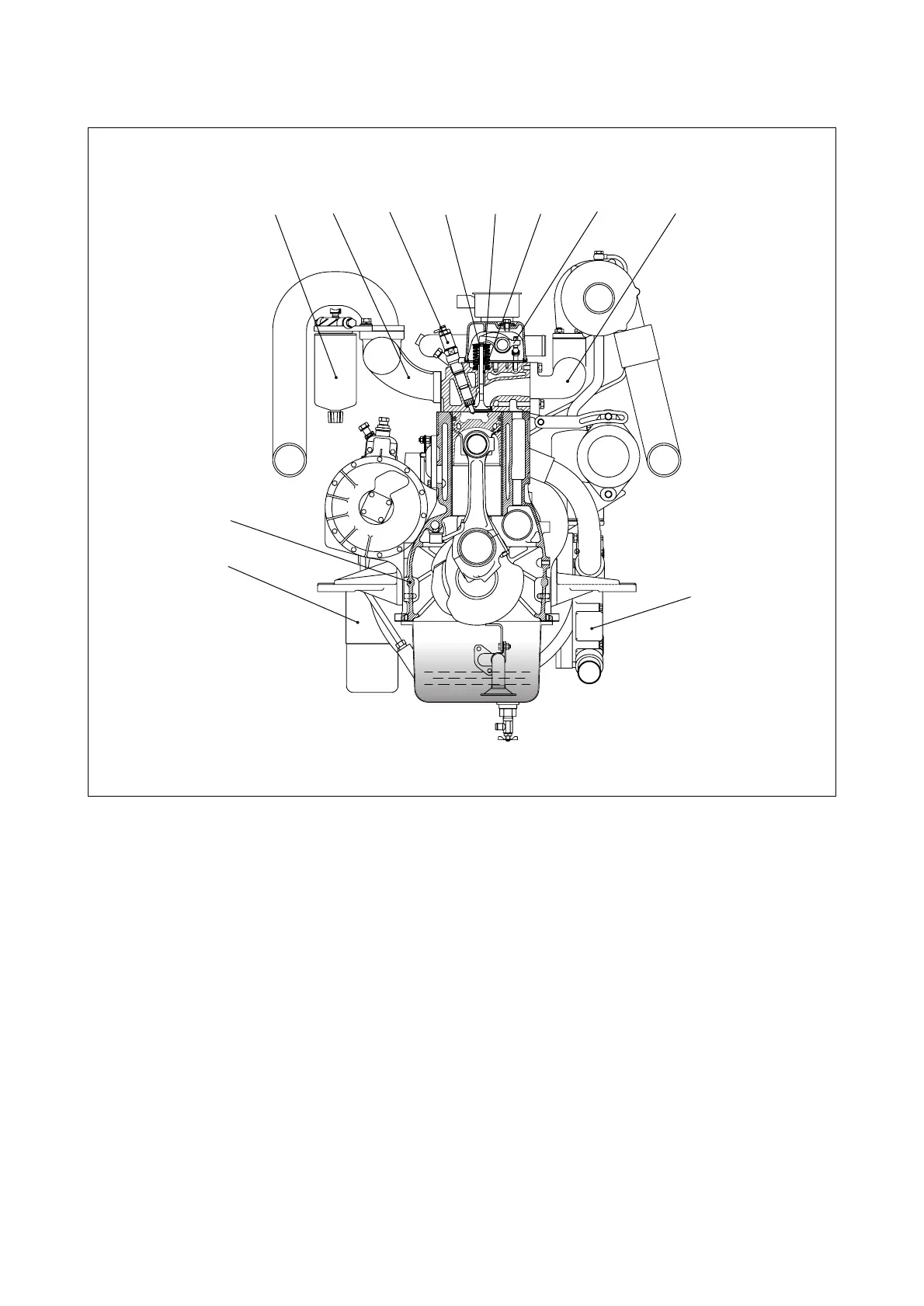

2.1.2. Engine sectional view (cross)
- 6 -
EA9O1002
12
9
10
34567 8
11
1. Fuel filter 7. Rocker arm
2. Intake manifold 8. Exhaust manifold
3. Injection nozzle assembly 9. Cylinder block
4. Valve cotter 10. Oil filter
5. Valve stem seal 11. Oil cooler
6. Valve guide
