Doosan D1146T - Electrical Equipment

3.11. Electrical Equipment

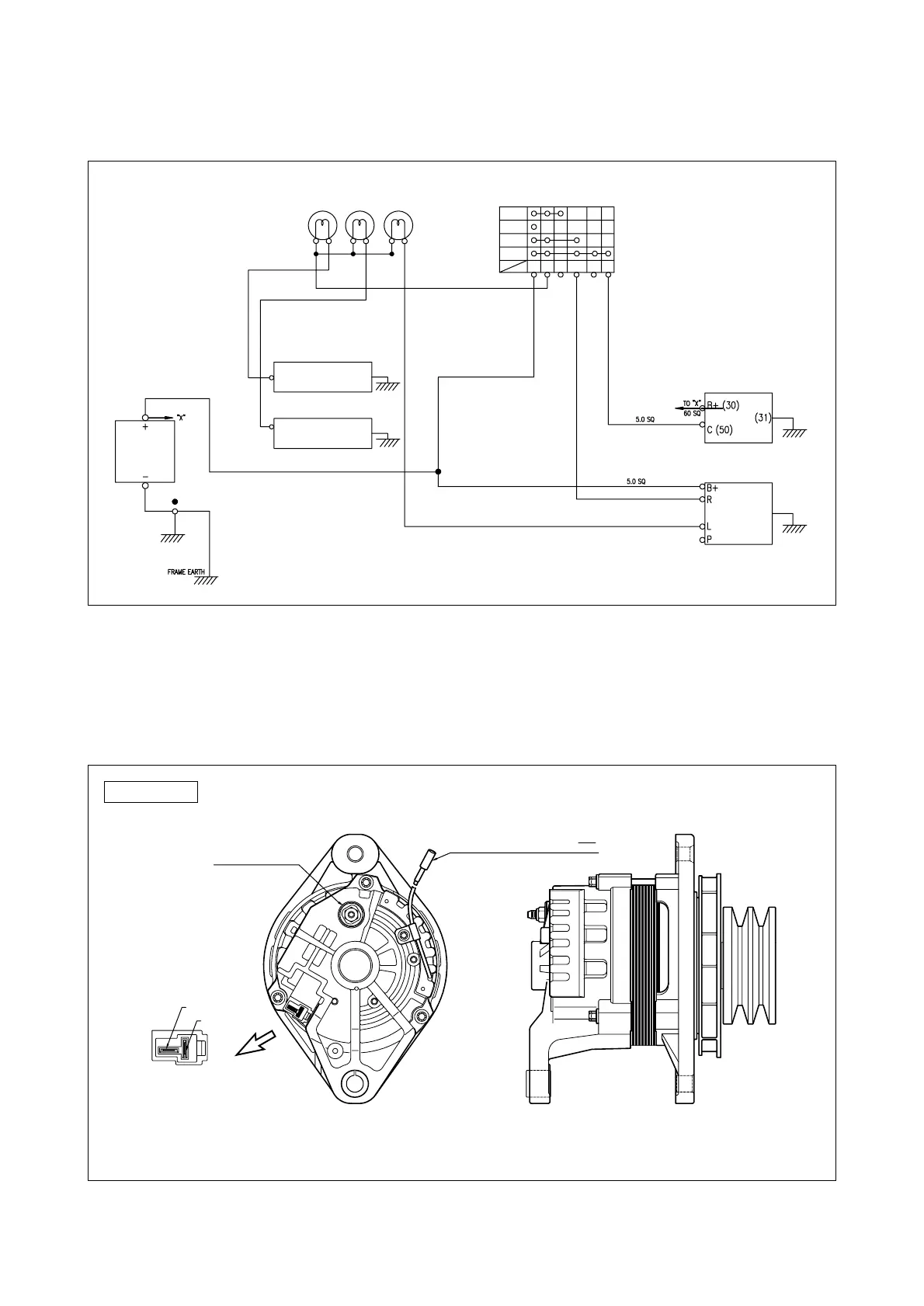

3.11.1. Wiring circuit
3.11.2. Alternator
The alternator is fitted with integral silicon rectifiers. A transistorized regulator mounted on the
alternator body interior limits the alternator voltage. The alternator should not be operated
except with the regulator and battery connected in circuit to avoid damage to the rectifier and
regulator.
- 24 -
BATTERY
OIL PRESS. W/R SW
(65.27441-7006)
STARTER
(65.26201-7063)
ALTERNATOR
(65.26101-7120)
OVER HEAT W/R SW
(67.27441-6008)
* STANDARD
LOW OIL PRESS.
W/R LAMP
OVER HEAT
W/R LAMP
CHARGE
LAMP
* OPTION
* STANDARD
* STANDARD
POS
* STANDARD
KEY SWITCH
(60.25501-7003)
HEAT
OFF
ON
START
TML
BCBR R1 R2ACC
5.0 SQ
5.0 SQ
5.0 SQ
5.0 SQ60 SQ
60 SQ
0.85 SQ
0.85 SQ
0.85 SQ
0.85 SQ
0.85 SQ
E/G EARTH
EA8O3006
P-TAB : KET GP 890545
TACHOMETER CHARGE INDICATOR
ALDO SYSTEM FREQUENCY =
M6 x 1.0 THREAD
BATTERY TERMINAL
RPM
10
"L" Terminal
"R" Terminal
CONNECTOR HOUSING
KET MG 620042
TERMINAL
KET ST 740254
EA902008
24V x 45A
