3.10. Turbocharger (for D1146T, P086TI, PU086T)
The exhaust gases of the engine are passed through the turbine rotor of the turbocharger. Air
compressor impeller mounted on the same shaft draws in fresh air and delivers it at a higher
pressure to the cylinders.
The turbocharger is naturally air-cooled. Lubrication of the main bearing is by oil under pres-
sure from the engine lubricating system.
- 23 -
EA603004

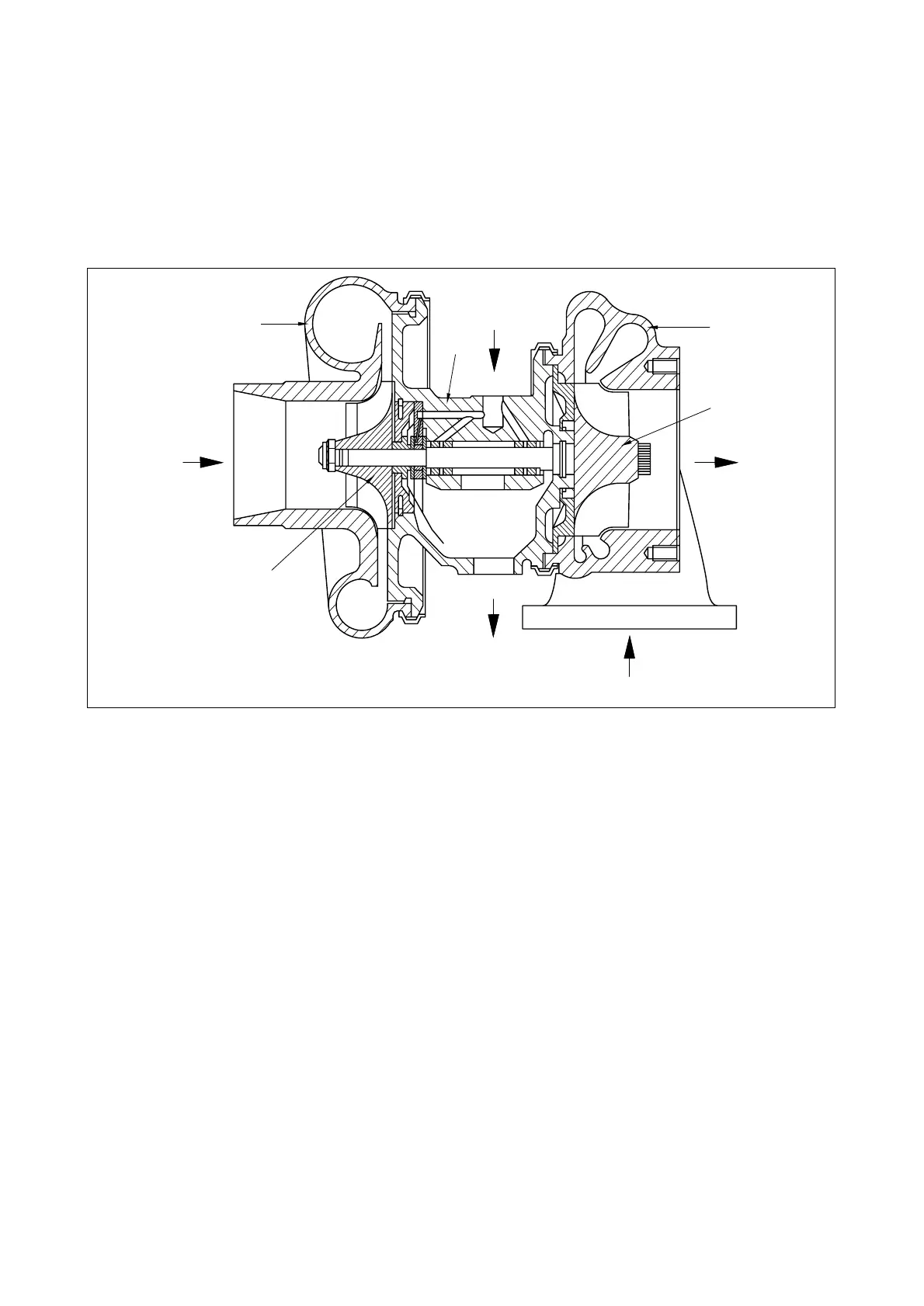

1. Compressor casing A. Air inlet
2. Turbine casing B. Gas outlet
3. Compressor wheel C. Gas inlet
4. Impeller D. Oil supply
5. Turbine E. Oil return
