Doosan D20S-7 - Drive Wheel Bearing (Power Shaft and Drive Wheel) - Apply Grease and Reassemble

Maintenance Section
-229-
Drive Wheel Bearing (Power Shaft
and Drive Wheel) – Apply Grease
and Reassemble

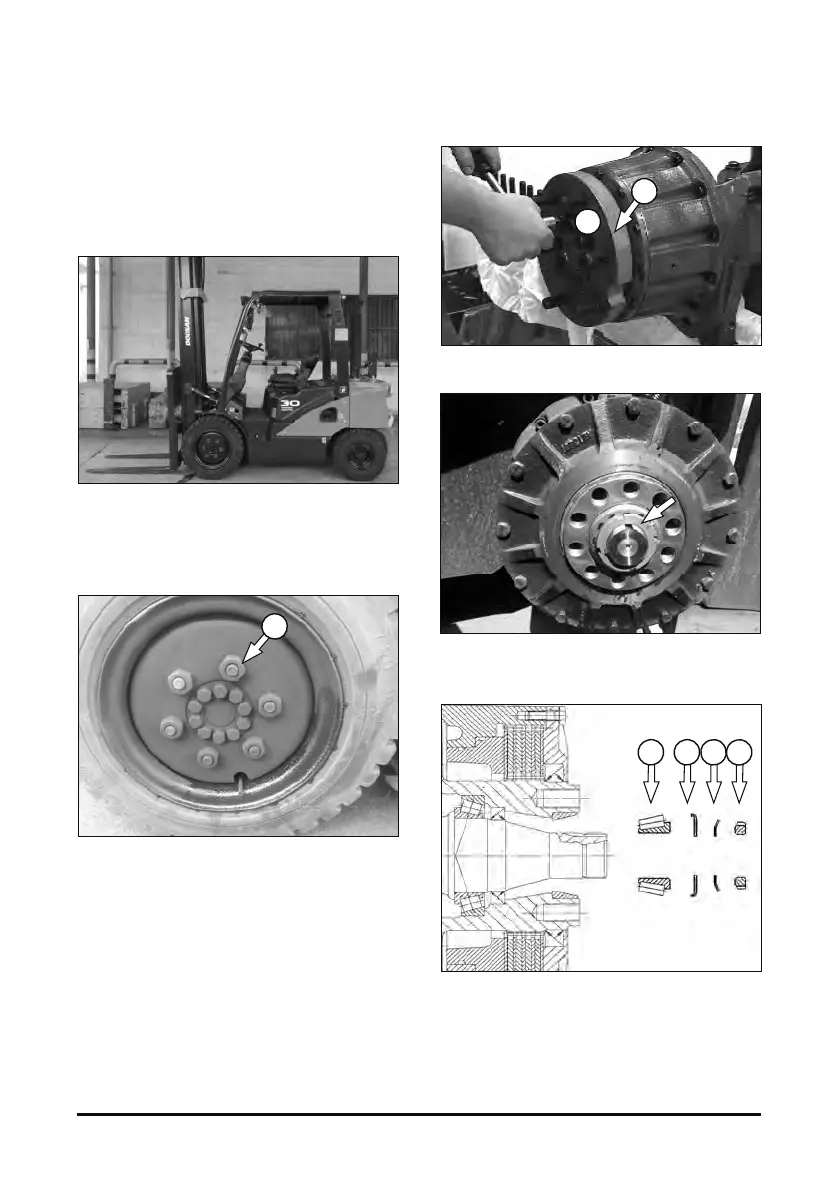

Park the lift truck level with the forks lowered,
parking brake engaged, transmission in NEUTRAL
and the engine stopped.
1. Lift the drive wheels off the ground. Place
stands or blocking under the frame and the mast
to support the lift truck. Loosen the wheel
mounting nuts(1) and remove the drive wheel
assembly.
2. Loosen the adapter assembly bolts(1) and
remove the disk brake adapter(2).
3. Straighten the lock washer tangs.
4. Loosen the wheel bearing nut(1). Remove the
lock washer(2), grease shield plate(3) and
wheel bearing cone(4).
4 2 1 3
1
1
2
