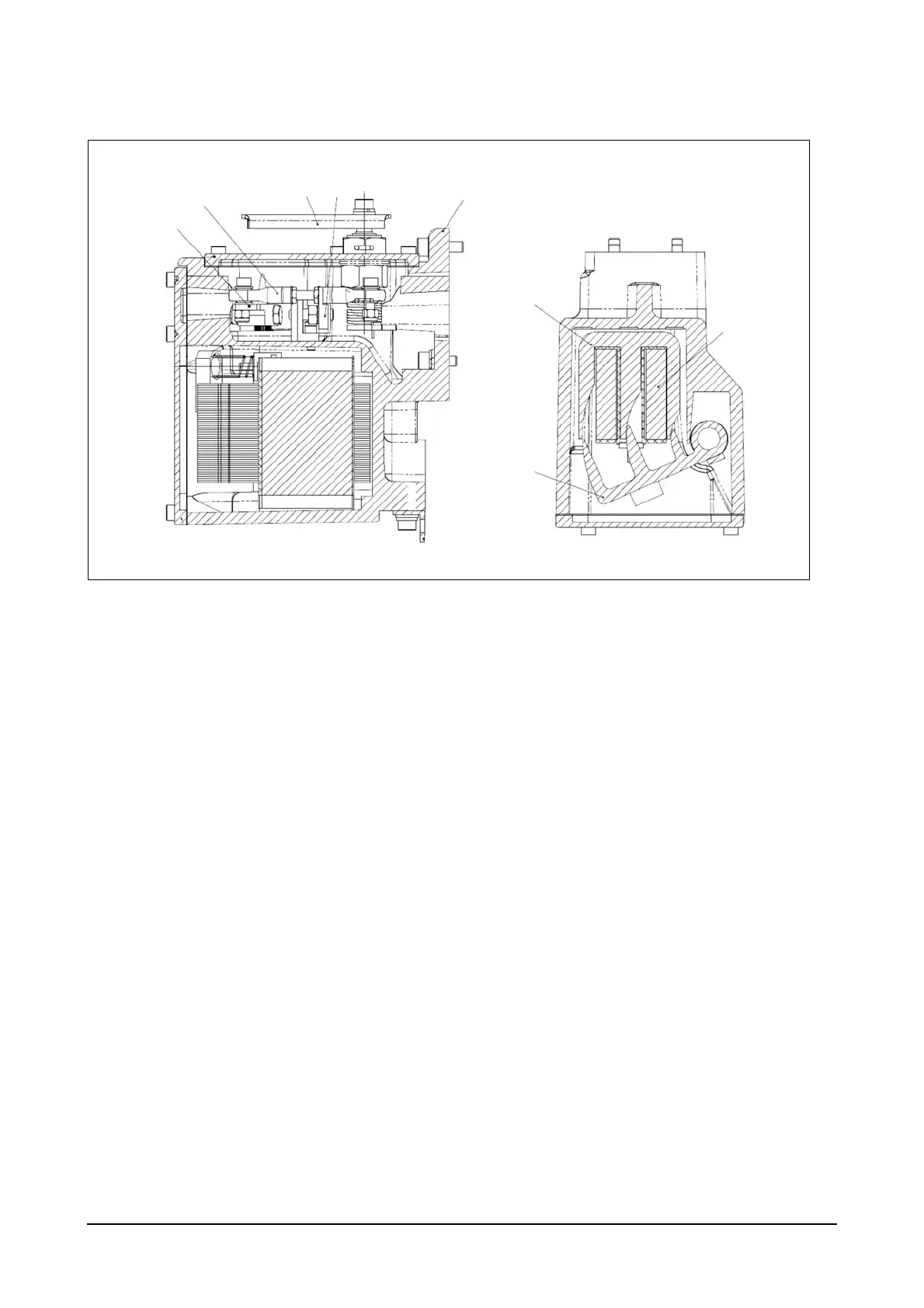

3. Outside view and main components of governor
1) Frame : The body of the governor. Made of ALDC-12 with high corrosion resistance.
2) Ball link assembly : A bearing assembly which connects the injection pump rack and governor
actuator operating lever.
3) Stop plate : A part assembled with the ball link assembly. It serves to stop the engine by
means of the emergency stop lever.
4) Static core assembly : A welded assembly composed of several layers of pure iron. A coil is wound
around a bobbin, press fitted into the frame of the static core and the assem-
bly, and then fixed in place with an epoxy resin.
5) Moving core assembly : A welded assembly composed of several layers of pure iron. When the gover-
nor controller adjusts the engine, the moving core assembly is activated to
control the fuel and adjust the speed.
6) Operating lever : A lever which connects the shaft and ball link assembly.
7) Stop lever : An emergency stop lever which stops the engine manually when the engine
cannot be stopped by the control panel. (Material: P.O. sheet)
8) Coil : A copper wire made of 0.85 ￠ LG B enamel and wound 715 turns around a
bobbin. It is connected to the governor controller and acts as an electromag-
net.
