2. Product appearance
Digital Speed Controller is made of a rigid aluminum case taking into account anti-shock, electromagnetic
resistance and environmental protection. An embedded system containing graphic LCD and high perfor-
mance MCU is inside the controller and a heat sink is located on the outside of the case for protection and
precise control of actuator operating elements.
A terminal block is located on the bottom and right of the front side for easy connection to external
devices. Over speed, run and crank signals are displayed on the front LED and contact points (a or b) are
also available for outputs on external controllers or indicators.
RS232 and CAN communication is available and DSUB-9 connector enables universal use of RS232
communication.
Users can easily input and adjust values for parameter inputs using 8 button keys. In addition, graphic
LCD shows graphic displays, bar graphs and design symbols so that users can readily identify the control
information while external LED displays important conditions of the engine.
EDL11160002

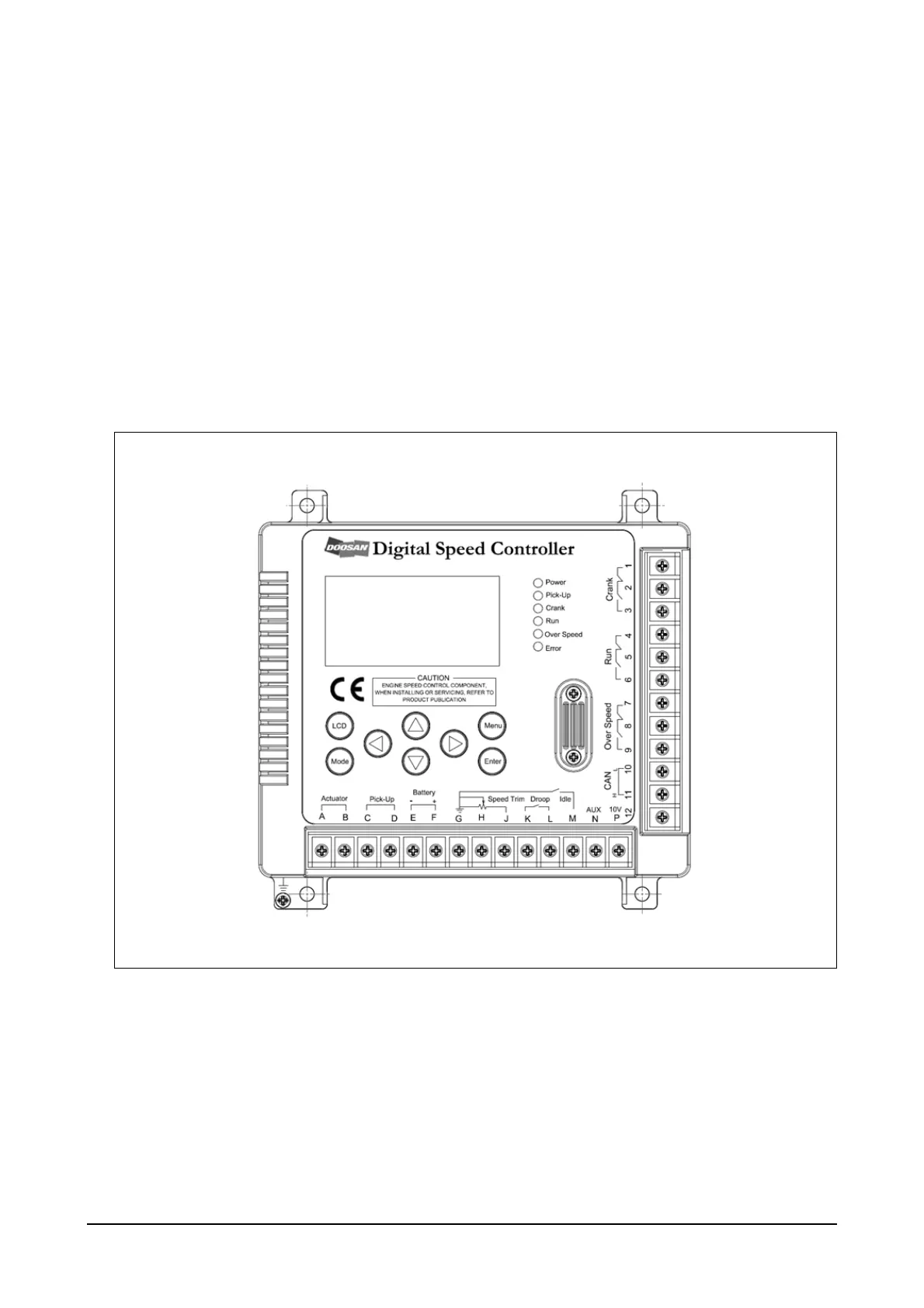

Product Front View
