- 30 -

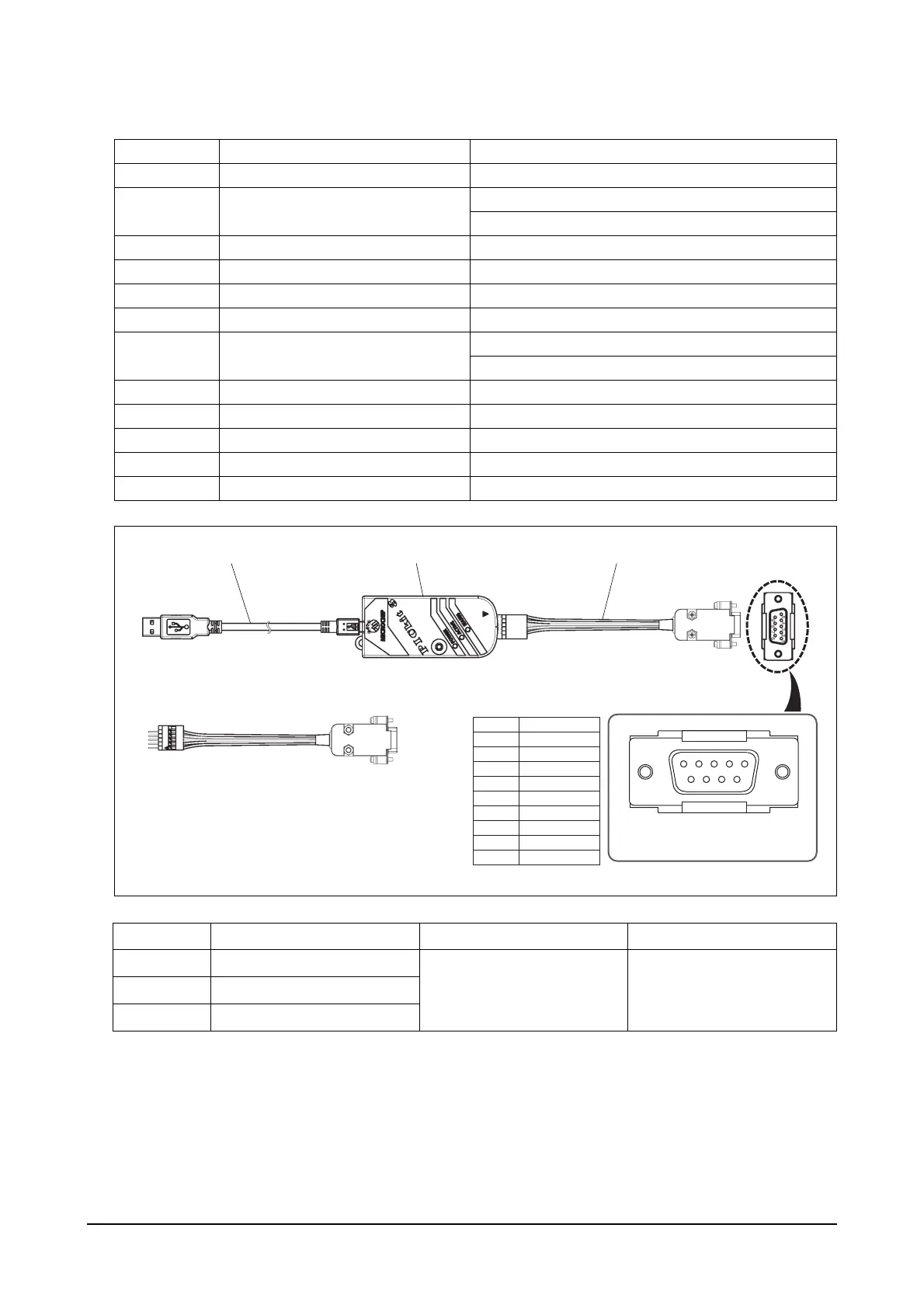

3. Product specification
No. Item Description
1 MCU 16-bit DSC dsPIC33FJ256
2 Display
Graphic LCD 128*64
LED: 6 ea
3 Keypad 8 Button Keys
4 Output 3 Contact Points (a and b)
5 Input RMS 3V (Min)
6 Memory 128 Mb
7 Communication
RS232 57600 bps
CAN (J1939)/250 kbps
8 Rated Power DC 24V (12V ~ 30V)
9 Current Consumption 120 mA
10 Operating Temperature -20 ~ 70
°C
11 Storing Temperature -30 ~ 80°C
12 Operating Humidity 0 ~ 95%
32
D-SUB Cable Rear View
D-SUB Female
Connector
1
EDL11160081
54321
9876
Pin No. Description
1
-
2
-
3
-
4
-
5GND
6 +3.3V
7 /MCLR
8 PGC2
9 PGD2
No. Item Part No. Name
1 D-SUB Cable
850329-00502 Toolkit Cable2 Pick It
3 USB Cable
