Doosan DP222LBF - Configuring cranking rpm; Configuring gear number

- 51 -

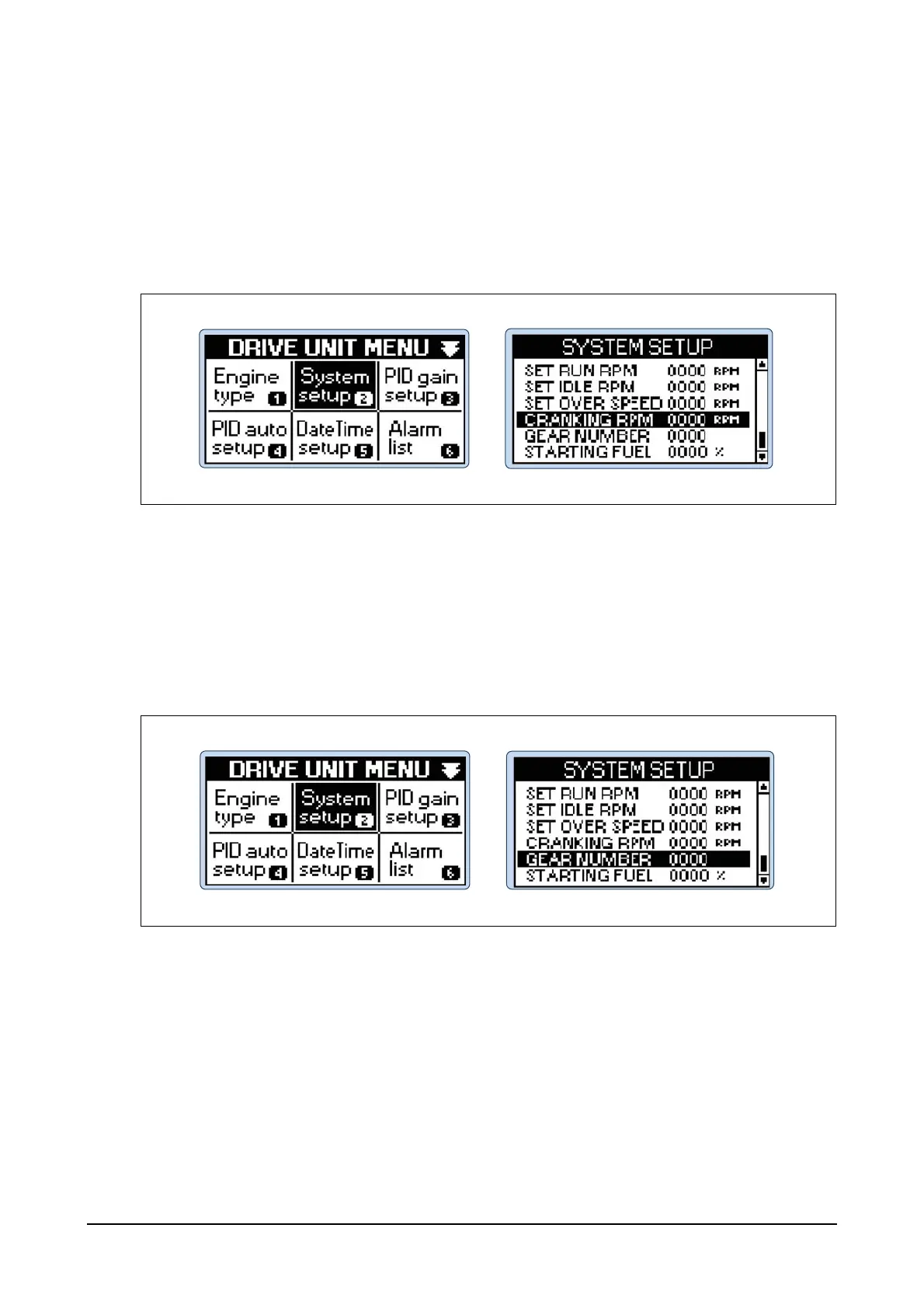

Configuring cranking rpm
Step 1) Press Menu button of the controller and then you can see DRIVE UNIT MENU.
Step 2) Select System setup menu in DRIVE UNIT MENU using Up, Down, Left and Right buttons
and then press Enter button.
Step 3) Select CRANKING RPM in SYSTEM SETUP menu and then press Enter button. Use Up and
Down buttons to increase or decrease the RPM values at which the controller starts to con-
trol the actuator when the engine starts to operate and then press Enter button.
Configuring gear number
Step 1) Press Menu button of the controller and then you can see DRIVE UNIT MENU.
Step 2) Select System setup menu in DRIVE UNIT MENU using Up, Down, Left and Right buttons
and then press Enter button.
Step 3) Select GEAR NUMBER in SYSTEM SETUP menu and then press Enter button.
Use Up and Down buttons to increase or decrease the number of gear teeth in the engine
and then press Enter button.
EDL11160060


EDL11160061


