5. About the engine
86
3) Remove 12 cononecting rod and pistonb assemblies as
the same procedure.

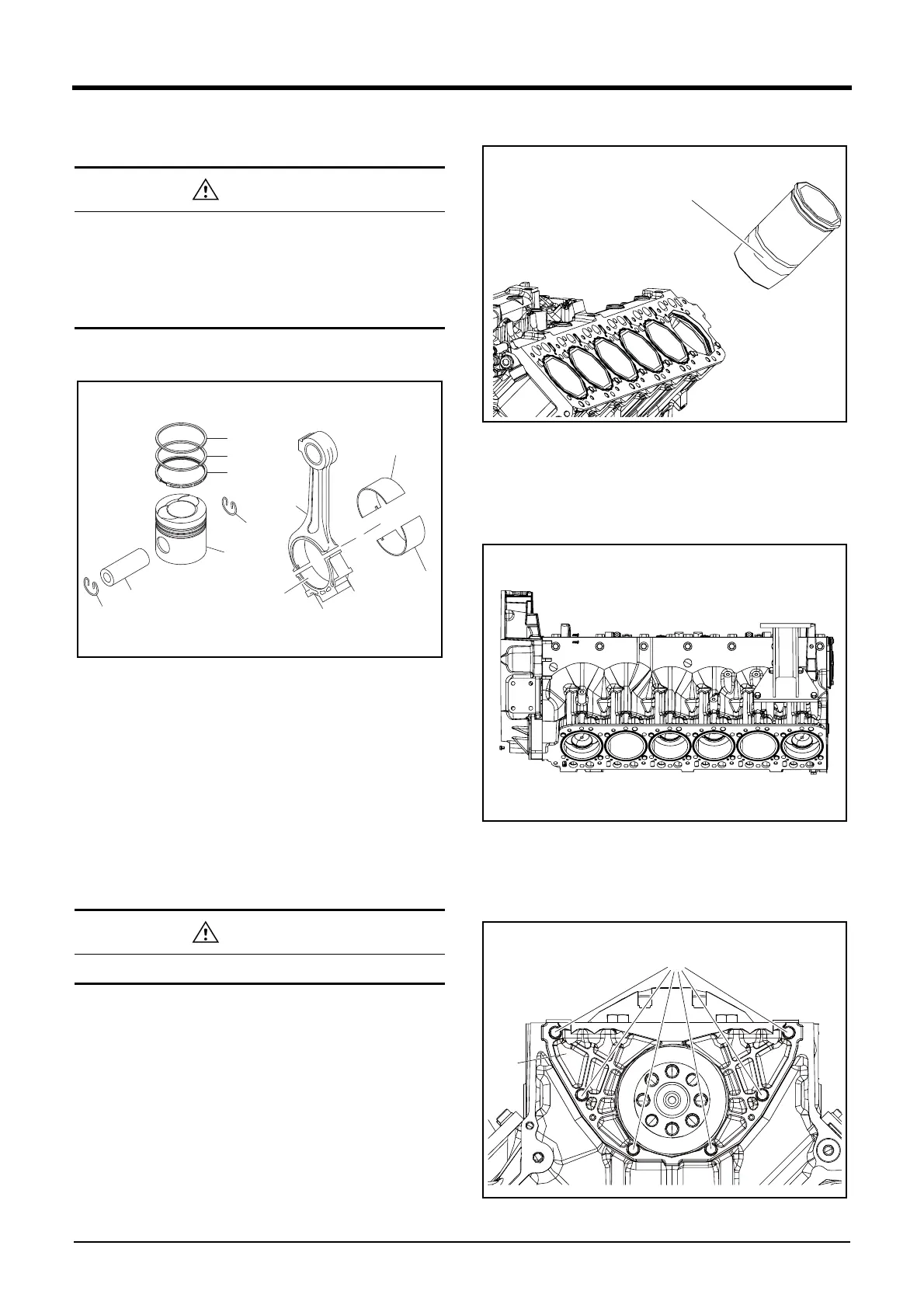

44. Disassemble the piston from the connecting rod.
DV2213177A
1) Remove 2 snap rings(B) with the smap ring-
plier(T7510001E).
2) Remove the piston pin(C).
3) Remove the piston(A) from connecting rod(G).
4) Remove the top ring(D), 2nd ring(E), oil ring(F) with the
piston ring plier(T7621010E).
5) Remove the upper connecting rod bearing(I) from
conneting rod(G).
6) Remove the lower connecting rod bearing(J) from
connecting rod cap(H).
45. Remove the cylinder liner.
DV2213089A
1) Remove the cylinder liner(A) from the cylinder block with
the cylinder liner puller(EF.123-365).
2) Remove 12 cylinder liners as the same procedure.
46. Change the engine position.
DV2213178A
1) Change the engine positon. The crankshaft direction is
upward.
47. Remove the front oil seal.
DV2213090A
• Be careful not to interference between the crank-
shaft and the crank weight.
• Be careful not to mix disconnected connecting rods,
connecting rod caps, and removed connecting rod
bolts as they are set aside.
Be careful not to mix the parts each other.
A
