5. About the engine
87
1) loosen 6 fixing bolts(A).
2) Remove the front oil seal(B).

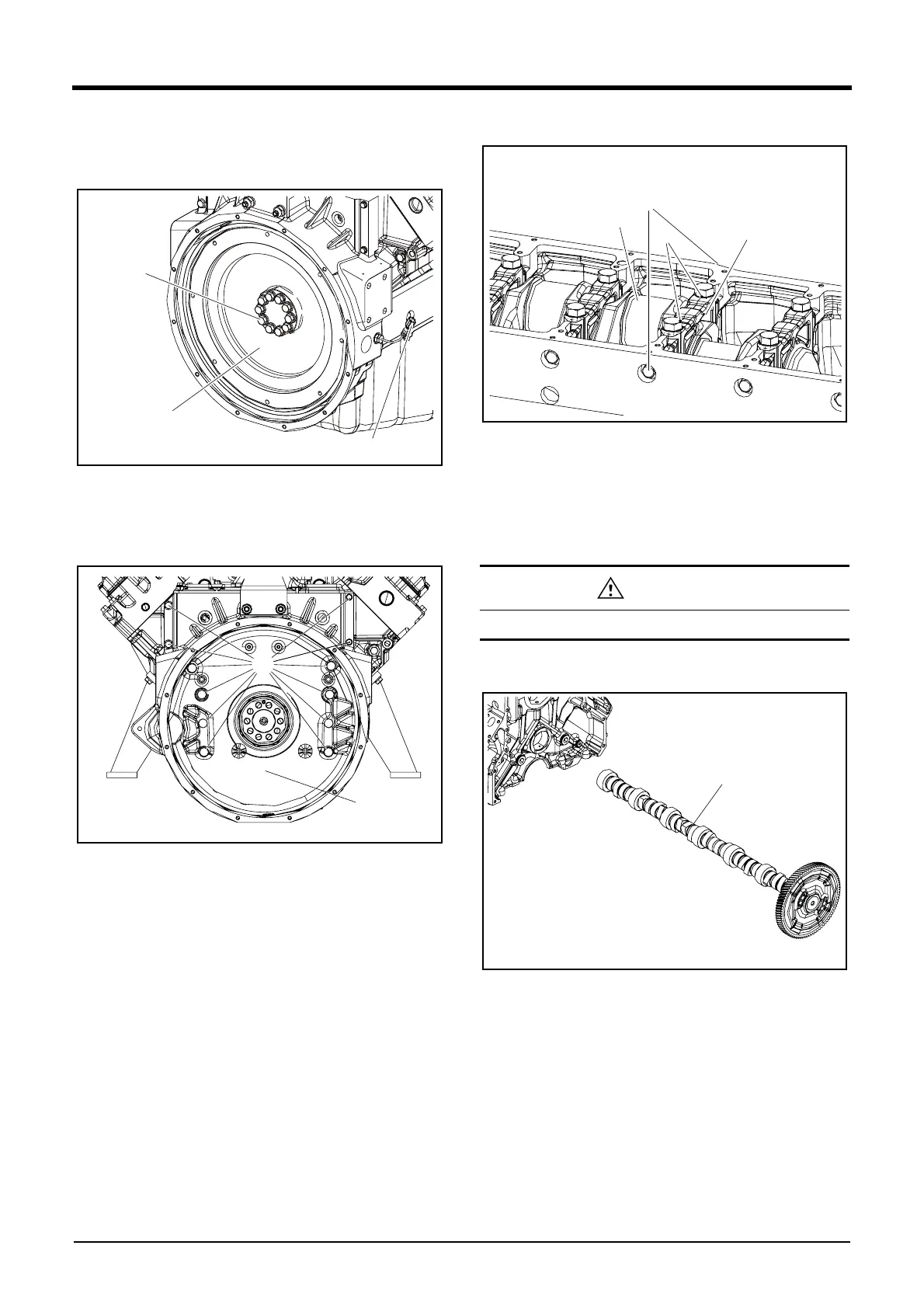

48. Remove the flywheel.
DV2213091A
1) Remove the tacho sensor(A).
2) Loosen 10 hex bolts(B) and then remove the flywheel.
49. Remove the flywheel housing.
DV2213179A
1) Loosen 12 fixing bolts(A).
2) Remove the flywheel housing(B).
50. Remove the crankshaft.
DV2213093A
1) Loosen 2 side fixing bolts(A) and 2 bearing cap bolts(B).
2) Remove bearing cap(C).
3) Remove 12 bearing caps as the same procedure.
4) Remove the crankshaft(D).
5) Remove the main bearing and the thrust bearing.
51. Remove the camshaft.
DV2213094A
1) Remove the camshaft(A) from cylinder block.
C
B
A
i
h
B
A
1
2
3
4
5
6
7
8
CAUTION
Be careful not to lose bearings.
A
D
C
B
A
