3. Radiator mounting bolt
• Tool: 24 mm ( )
• Torque: 27 kg•m (265 N•m, 195 ft lb)
4. Tightening bolt for hydraulic oil tank
• Tool: 24 mm ( )
• Torque: 27 kg•m (265 N•m, 195 ft lb)
5. Tightening bolt for fuel tank
• Tool: 24 mm ( )
• Torque: 27 kg•m (265 N•m, 195 ft lb)
6. Tightening bolt for pump
• Tool: 17 mm ( )
• Torque: 49 kg•m (480 N•m, 354 ft lb)

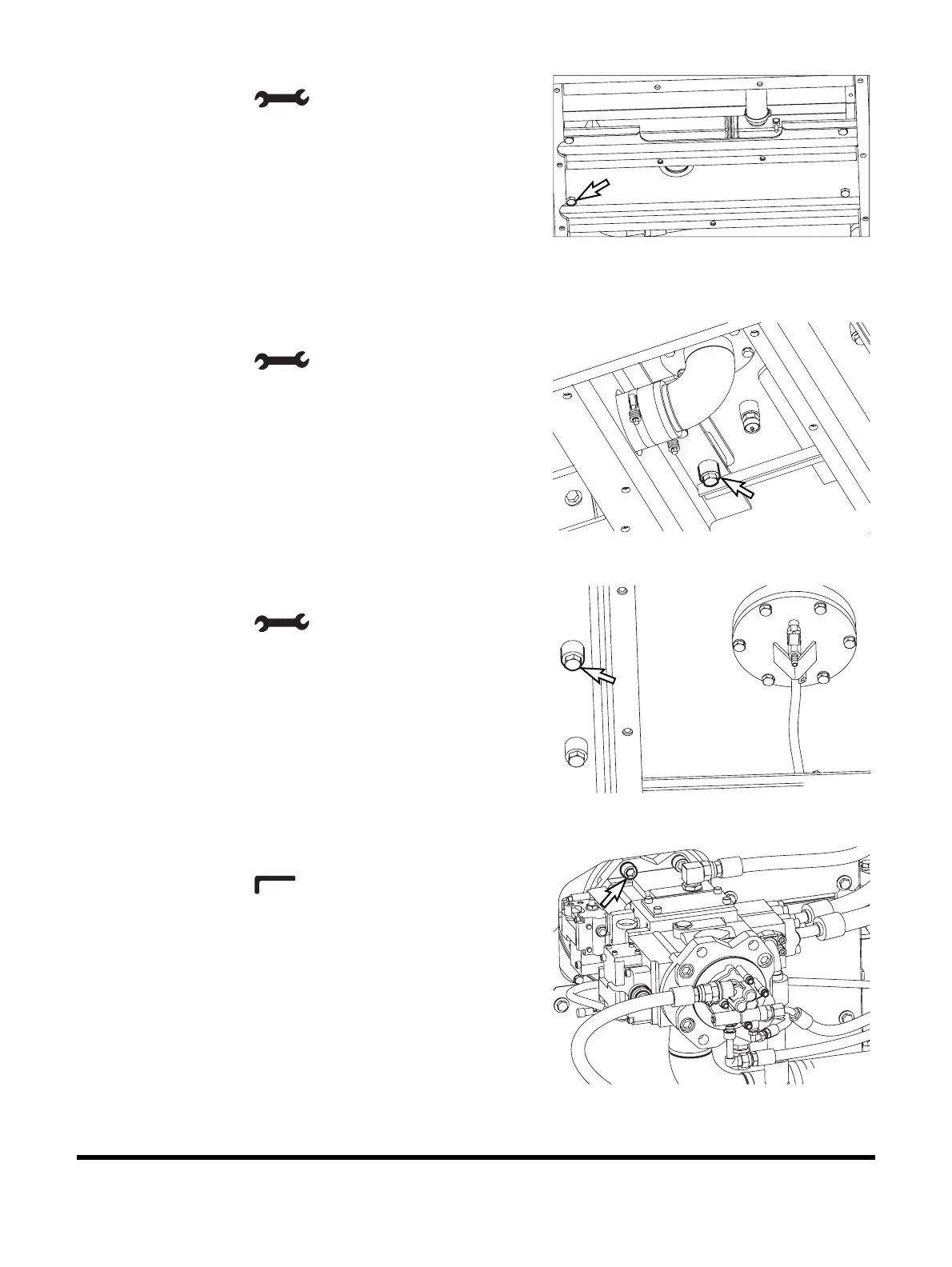

FG001420
Figure 100
FG006450
Figure 101
FG001422
Figure 102
FG001423
Figure 103
