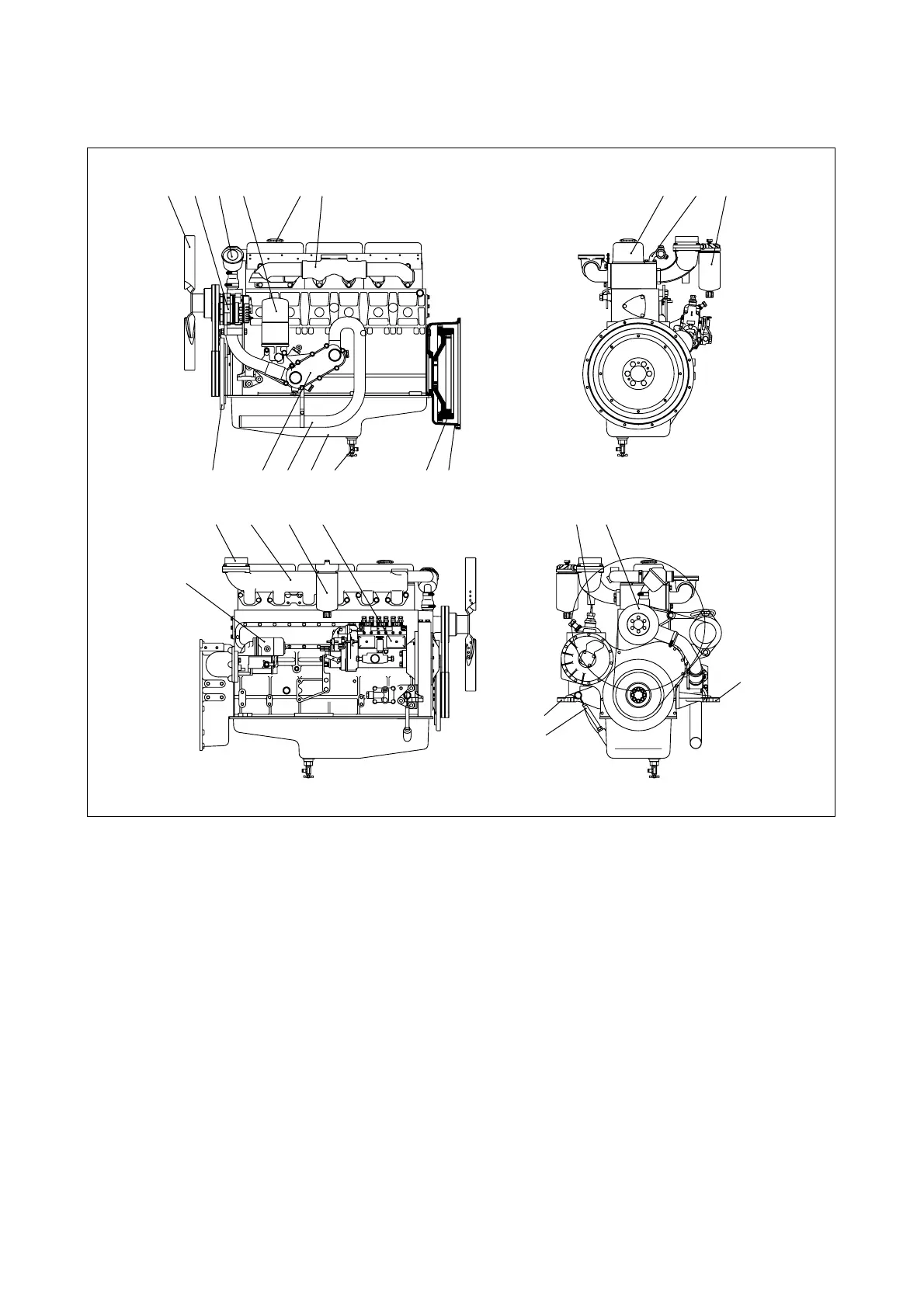

2.1.3. Engine assembly views
1) D1146/PU086
- 7 -
1
7891011 12
18
17
19 20 21 22 23
24
24
25
13
234 56 131415
EA9O1003
1. Cooling fan 10. Oil pan 19. Intake manifold
2. Alternator 11. Oil drain valve 20. Fuel filter
3. Thermostat 12. Flywheel 21. Injection pump
4. Oil filter 13. Flywheel housing 22. Injection pipe
5. Oil filter cap 14. Cylinder head cover 23. Water pump
6. Exhaust manifold 15. Cooling water pipe 24. Mounting bracket
7. Vibration damper 16. Fuel pipe 25. Oil level gauge
8. Oil cooler 17. Starter
9. Cooling water pipe 18. Intake stake
(from radiator)
