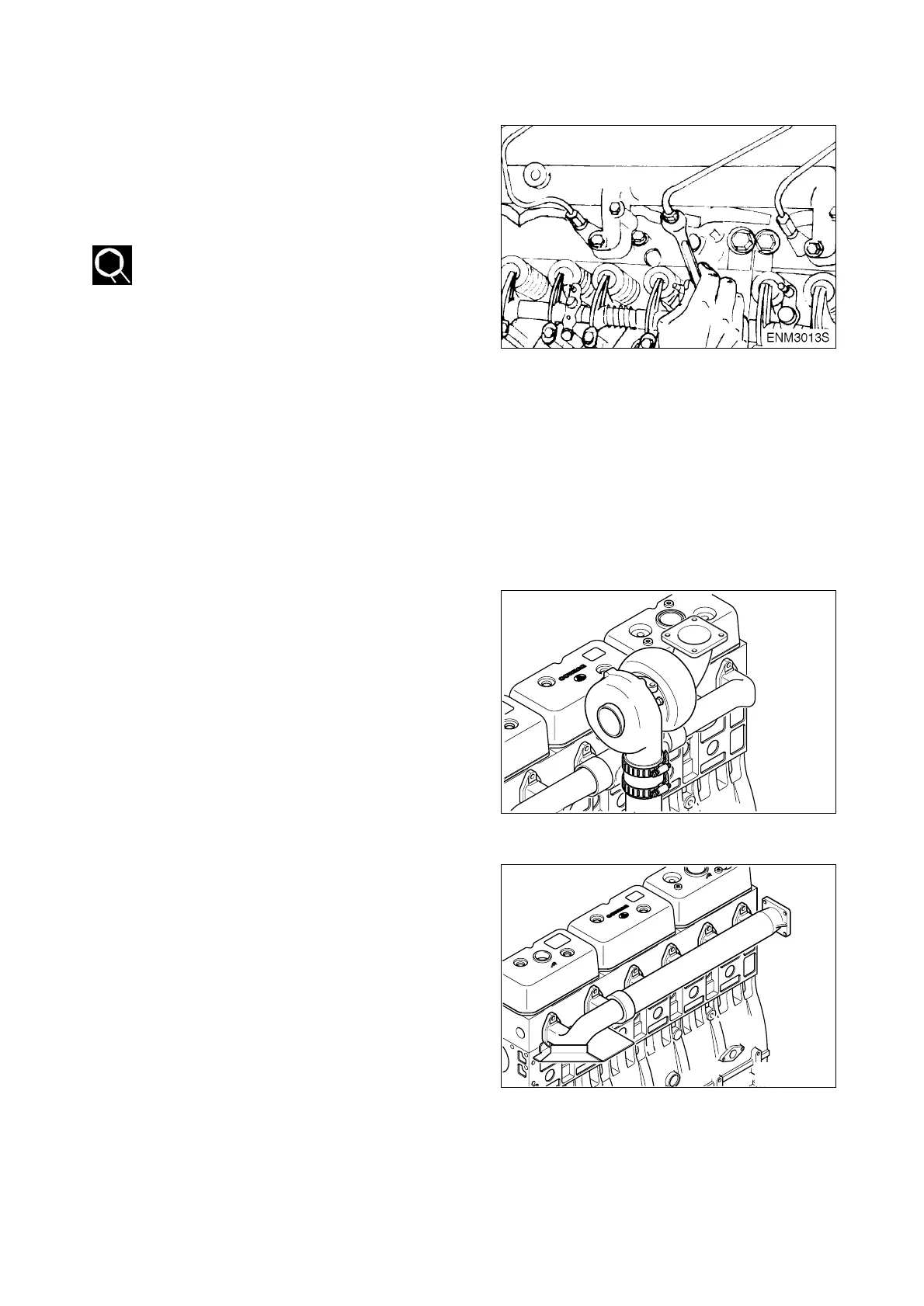

9.1.16. Nozzle
•
Remove the fuel supply high pressure
pipe and its assembling nuts that are
connected between fuel injection
pump and nozzle and disassemble the
pipes.
•
After installing the special tool
for removing nozzle temporarily,
loosen the holder and then ham-
mer up with a hammer which is a
special tool so as for nozzle assem-
bly to be disassembled.
(Be careful not to damage the nozzle
at disassembled.)
•
Pull the seal ring out through the noz-
zle hole of cylinder head and scrap it.
9.1.17. Turbo charger
(D1146T/PU086T, P086TI)
•
Disassemble the oil supply pipe
that supplies oil from cylinder block to
turbo charger and the oil discharge
pipe that discharges oil from turbo
charger to cylinder block.
•
Remove the turbo charger assembling
nuts and disassemble it from the
exhaust manifold.
9.1.18. Exhaust manifold
•
Remove the exhaust manifold assem-
bling
nuts and disassemble the heat
shield from the exhaust manifold.
•
Then disassemble the exhaust mani-
fold and gasket.
•
Scrap the used gasket.
- 70 -
