Dorma MUXD 19 - Booking Activity; Tamper Status; System Run

MUXD 19" (B6L 19")
4. Commissioning
19

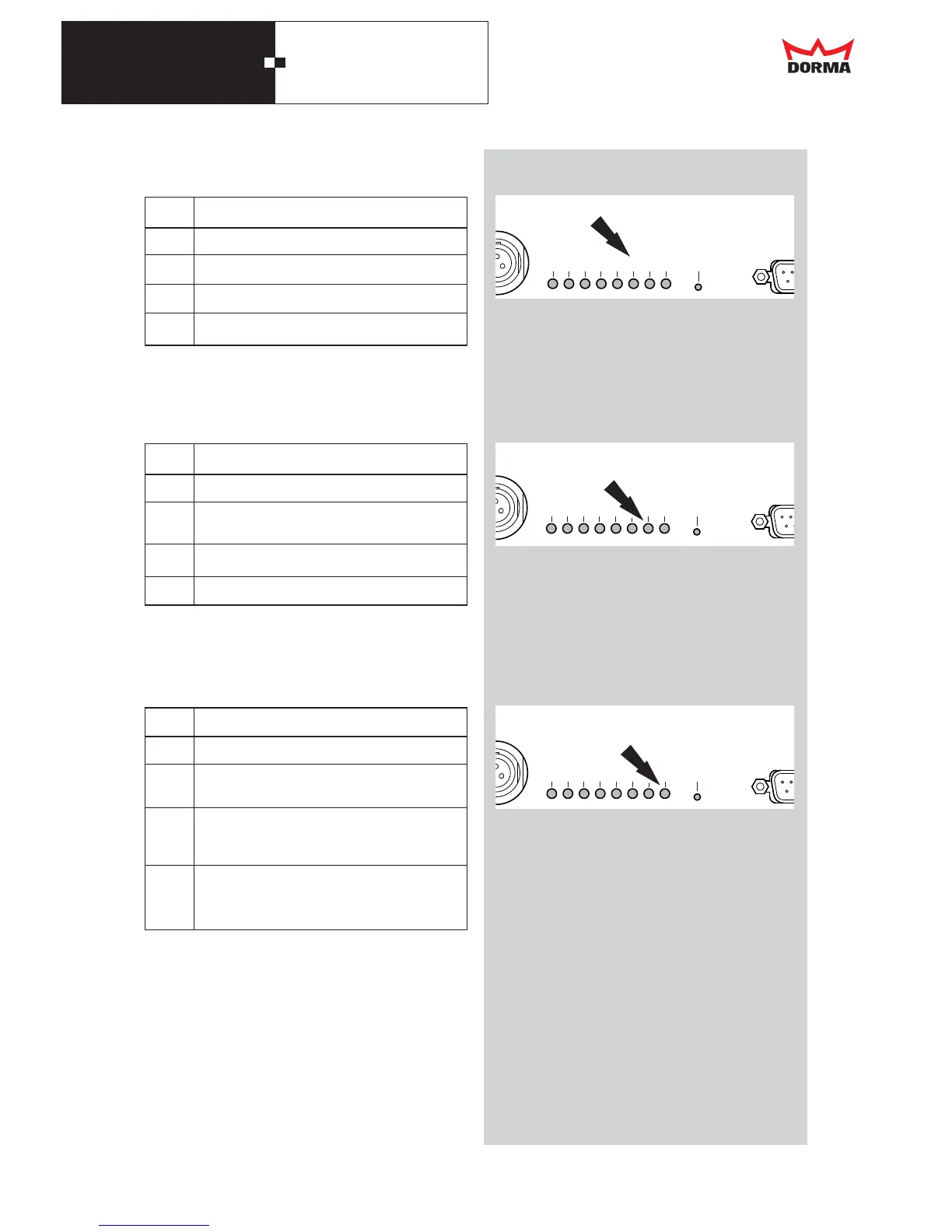

4.4.6 Booking activity
Booking activity
4.4.7 Tamper status
Tamper status of the device and devices connected
to it
4.4.8 System Run
Software diagnostics
Internal Voltage
Supply Voltage
SubBus1 Activity
SubBus Power
SubBus2 Activity
Booking Activity
Tamper Status
System Run
Reset
OWER
Internal Voltage
Supply Voltage
SubBus1 Activity
SubBus Power
SubBus2 Activity
Booking Activity
Tamper Status
System Run
Reset
O
WER
R
Internal Voltage
Supply Voltage
SubBus1 Activity
SubBus Power
SubBus2 Activity
Booking Activity
Tamper Status
System Run
Reset
O
WER
R
LED
off
green
red
yellow
Meaning
No booking is being processed at the moment.
A booking is being processed.
Error in carrying out the booking
Successfully executed booking without door opening
LED
off
green
red
yellow
Meaning
–
Normal status. Tampering was not detected.
Tampering was detected.
–
LED
off
green
red
yellow
Meaning
–
Normal operation
Malfunction: The CMOS battery is flat and must
be replaced
There are diagnostic or error messages that can
be read out via the service functions.
