Dorma MUXD 19 - LAN Link;Speed; LAN Activity

MUXD 19" (B6L 19")
4. Commissioning
20

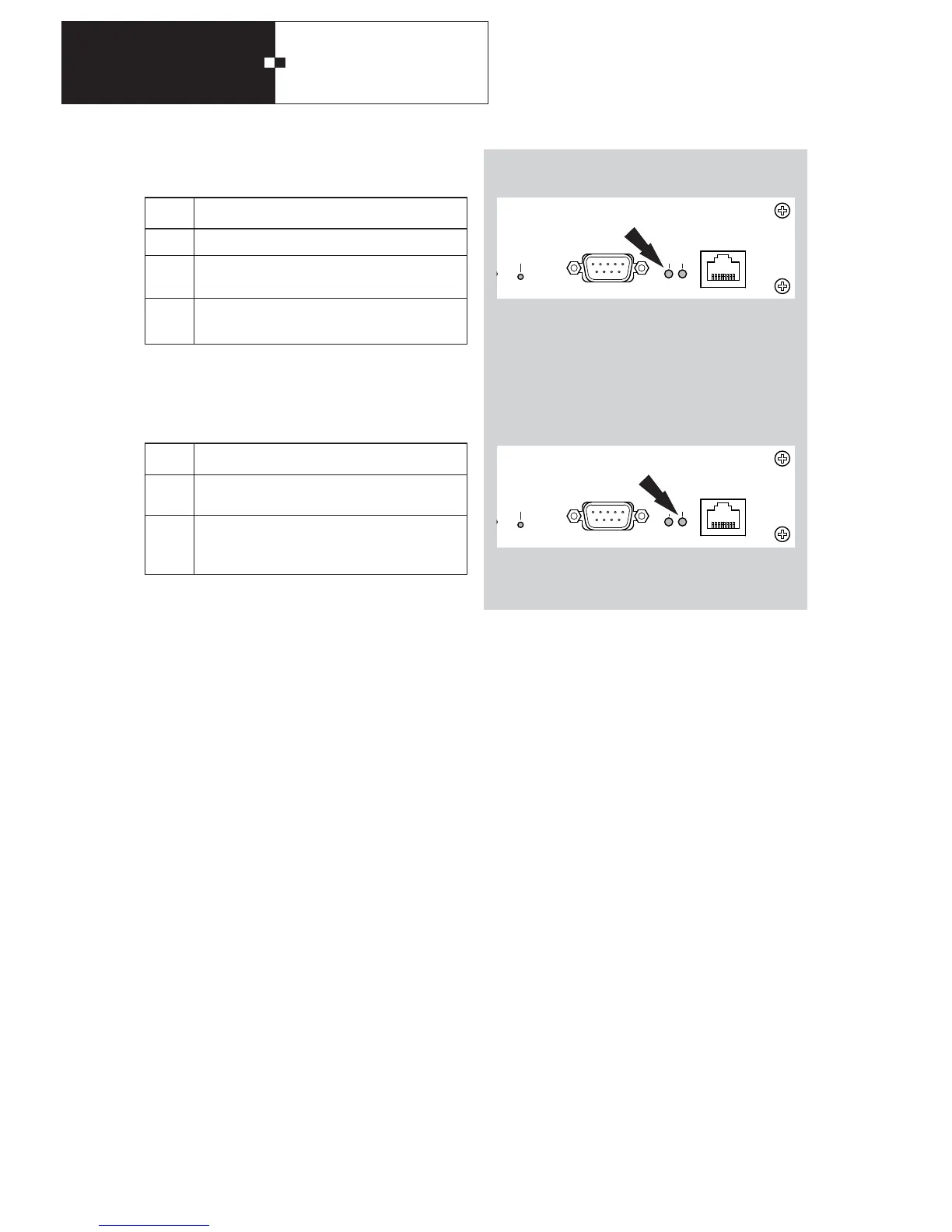

4.4.9 LAN link/speed
Connection/speed display of the Ethernet interface
4.4.10 LAN activity
Ethernet activity
y
tiv
ity
r
S
tatus
ys
tem Run
Reset
LAN-Activity
RS232 Service
LAN 10/100 BaseTx
LAN Link / Speed
y
tiv
ity
r
S
tatus
ys
tem Run
Reset
LAN-Activity
RS232 Service
LAN 10/100 BaseTx
LAN Link / Speed
LED
off
green
yellow
Meaning
No Ethernet connection available.
Ethernet connection at a transfer rate of
100 Mbit/s is available.
Ethernet connection at a transfer rate of
10 Mbit/s is available.
LED
off
green
Meaning
No MUXD activity at the Ethernet interface.
Usage data (terminal <-> host/terminal <->
terminal) is being transferred at the Ethernet
interface.
