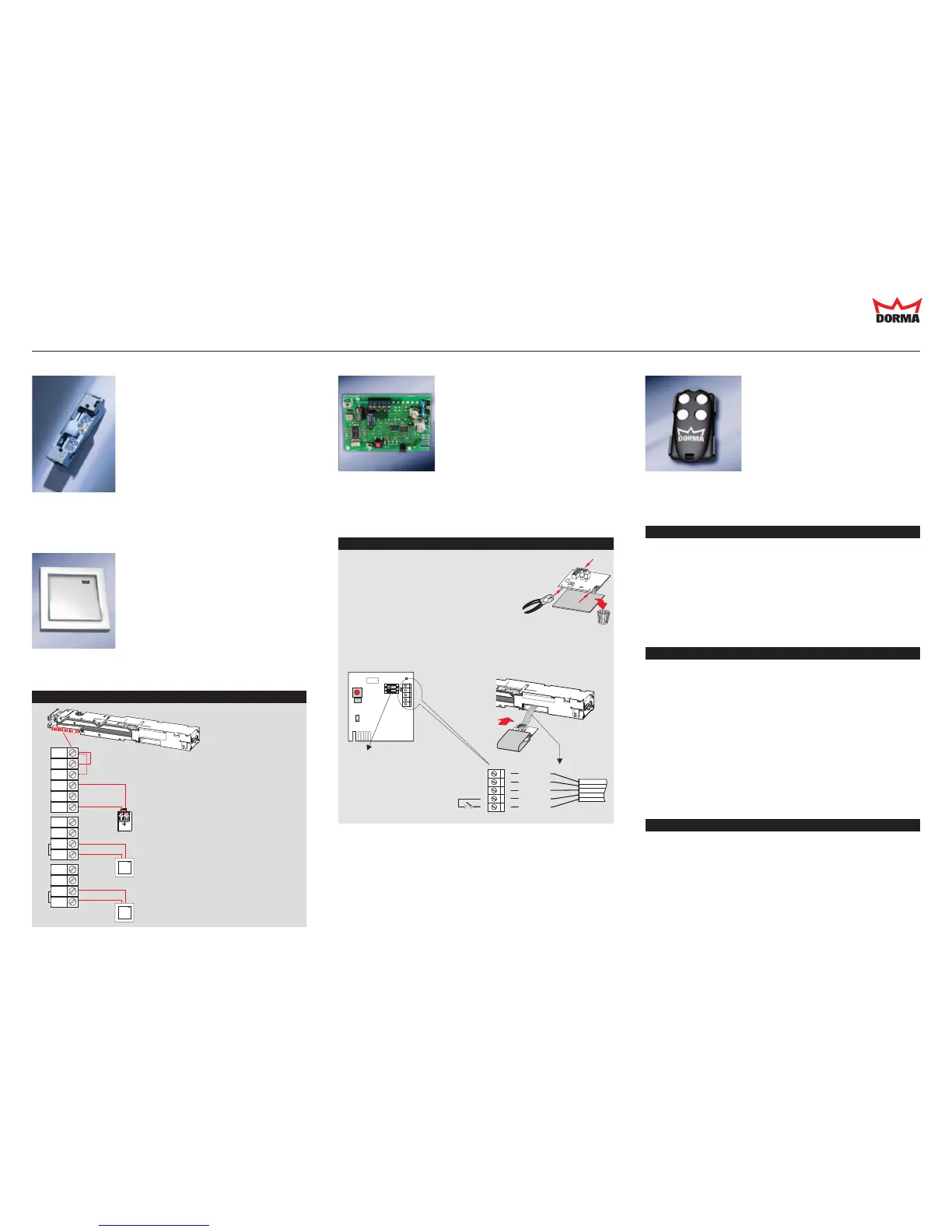

In the PowerMotion mode (automatic door opening, automatic door closing), an electric strike is needed in order to release
the door latch. A signal is emitted by an external activator, the door opens on release of the latch by the electric strike, and
then automatically closes after a preset hold-open time.
Electric strike with adjustable latch, suitab-
le for over-rebated and flush-closing doors,
non-handed. 24 V DC, 130 mA
Models:
– Basic: Fail-secure (locked when power
disconnected), Art. No. 15117124
– Basic-Safe: Fail-safe (unlocked when
power disconnected), Art. No. 15137124
Accessories: Stainless steel striking plate
type FLM 24, Art. No. 15180224
DORMA RC-R radio receiver DORMA RC-T handheld transmitter
Technical data
Frequency: 433.92 MHz
Output: 1 channel, floating N.O. contact,
self-learning for up to 64 transmitters
Power supply data: 24 V DC
Current input: max. 100 mA
Art. No.: 16562301170
Technical data
Frequency: 433.92 MHz, 4 channels,
digitally coded, with individual
assignability
Power supply: 12 V battery
Range: 15 m indoors
Art. No.: 16562101170
Jumper 1U to 64 = Basic electric strike (fail-secure)
Electric strike connections
Activator connections (e.g.
pushbutton unit, radar detector)
Activator connections (e.g.
pushbutton unit, radar detector)
Terminal diagram: Electric strike and activator
The DORMA RC-T enables doors to be opened and closed by radio
remote control. Several transmitters can be married to each receiver.
Each transmitter must be programmed/married individually.
Functional description
Function 1 – Open Door
Press the programmed pushbutton on the transmitter:
• The door moves to the Opened position and closes after the
preset hold-open time.
Function 2 – Permanent Open
Press the programmed pushbutton on the transmitter:
• The door moves to the Opened position and remains there.
Press the same pushbutton again: Door closes.
Programming
Function 1 – Open Door
1. Briefly depress the SW pushbutton on the RC-R receiver PCB.
• The LED on the pushbutton glows for 5 sec.
2. During these 5 sec., press one of the pushbuttons on the trans-
mitter.
• Function 1 is programmed and is available at this pushbutton.
Function 2 – Permanent Open
1. Depress the SW pushbutton on the RC-R receiver PCB until the
LED next to the pushbutton extinguishes again.
• The LED flashes 30 times.
2. This is followed by a brief steady glow (approx. 3 sec.). As soon as
you see this steady glow, press a pushbutton on the transmitter.
Cancelling the programmed settings
The programming must be cancelled before the pushbuttons are
re-assigned with different functions.
1. Switch off the RC-R receiver (switch mains disconnector to “OFF”).
2. Press and hold pushbutton SW on the RC-R receiver PCB.
3. Switch on power again (mains disconnector “ON”).
• LED lights up
4. Release pushbutton SW immediately.
The DORMA RC-R radio receiver (required for the RC-T handheld
transmitter) is installed in the PORTEO unit. When using the RC-T
handheld transmitter, therefore, there is none of the cabling that
otherwise has to be installed for door activation.
Installation of the RC-R radio receiver
1. Remove the backplate from the receiver PCB.
2. Connect the wires from the PORTEO to the PCB
as indicated by the colour code.
3. Once the handheld transmitter has been
programmed/married to the receiver,
wrap the PCB in sponge rubber and slide
into the compartment.
DORMA System 55 handheld pushbutton
Once the PORTEO has been commissioned, set DIP switch A to on
to activate the electric strike. For other settings, see front page.
Art. No.:
19144701170
Function 1 – Open Door
Press pushbutton:
• Door opens and closes
Function 2 – Permanent Open
1. Quickly double-click pushbutton (current
impulse relay function):
• Door opens and remains in that position.
2. Quickly double-click pushbutton again:
• Door closes.
DORMA Basic electric strike
Jumper 1U to 63 = Basic-Safe electric strike (fail-safe)
PORTEO. Accessories.
WN 057 323 45532, 03/08 Subject to change without notice.
