E7900 Series

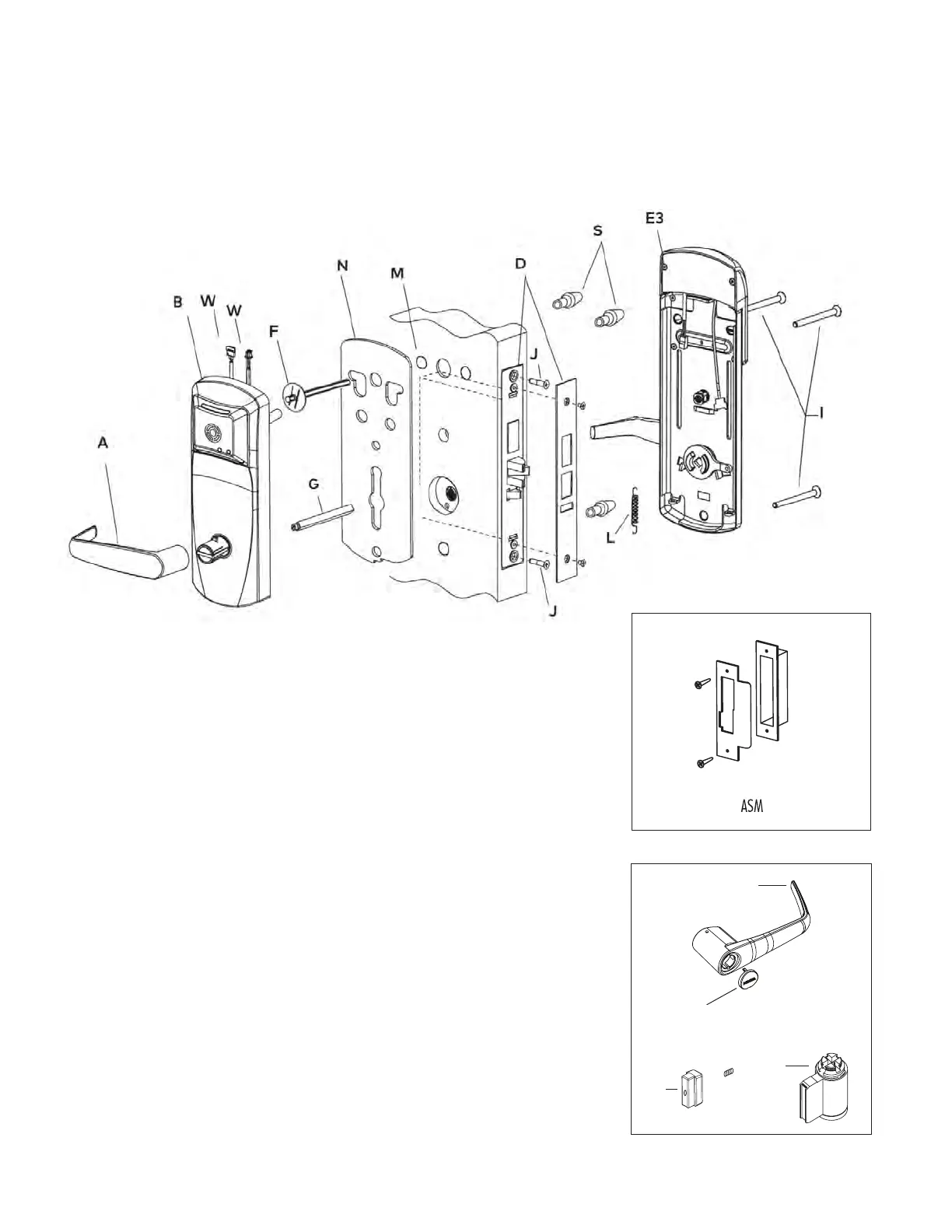

2 Checklist and Exploded Views

Note: D - American Standard Mortise illustrated.

2.2 ASM (For Cylindrical, see Appendix B)

KD10114-E-1122

Table of Contents2
Introduction and Disclaimers3
Checklist and Exploded Views4
2.1 Parts and Tools List4
Asm5
2.3 Autodeadbolt ASM Inside Trim Assembly6
ASM, 79T Toggle Mode (for Cylindrical, See6
Autodeadbolt - ASM Inside Trim Assembly for 79T (Toggle Mode)7
Cylindrical Unit and Inside Trim Assembly for 79M Standard Mode (See7
2.7 Inside Trim Assembly 79T Toggle Mode Cylindrical7
Installation of ASM Models8
Check the Mortise Handing8
3.2 Install the Strike9
3.3 Install the Mortise10
Install the Outside Housing & Inside Trim Assembly Without Key Override11
Programming and Software Setup15
5.1. Overview15
LUNA Installation and Setup17
17 5.2.1. Downloading the LUNA17
17 5.2.2. LUNA Software Installation17
17 5.2.3. Opening LUNA for the First17
17 5.2.4. Changing Your Password17
Credential (LUNA)18
Adding Users (LUNA)18
18 5.3.3. Assigning Credentials18
19 5.3.4. Adding Locks (LUNA)19
19 5.3.5. Creating an E-Plex Door19
Group (LUNA)19
19 5.3.6. Schedules (LUNA)19
19 5.3.7. Programming E-Plex Locks19
19 5.3.8. Creating the Program File19
Aurora Installation and Setup20
Aurora Software Installation20
20 5.4.2. Opening Aurora for the First20
20 5.4.3. Changing Your Password20
E-Plex Setup (Aurora)21
21 5.5.2. Defining a Person Type (Aurora)21
Adding Users (Aurora)21
22 5.5.4. Assigning Credentials to Users22
22 5.5.5. Adding Locks (Aurora)22
23 5.5.7. Schedules (Aurora)23
23 5.5.8. Assigning Schedules to Doors23
24 5.6. Additional Topics for Wireless Setup24
24 5.6.1. Adding and Configuring a24
Gateway (Aurora)24
24 5.6.2. Joining an E-Plex Gateway as a24
Router (Aurora)24
26 5.6.4. Assigning E-Plex Locks to a26
26 5.6.5. Joining a Lock to a Gateway26
M-Unit for Offline Lock Setup28
About the M-Unit28
Transferring the Program File28
To the M-Unit28
Programming E-Plex Locks28
To the Lock28
29 5.7.6. Auditing an E-Plex 7900 Lock29
29 5.7.7. Viewing Audits (LUNA)29
30 5.7.8. Viewing Audits (Aurora)30
31 5.8.2. Site Survey Guidelines31
31 5.8.4. Scan Network31
32 5.8.5. Ping Network32
32 5.8.6. Diagnosing an E-Plex 790032
Operating the Electronic Override33
A Mortise Models42
1. Reversing the Mortise Handing42
2. Additional Steps for ASM Office45
Installing Cylindrical Models46
1. Install the Strike46
2. Install the Latch46
