Dormakaba SVA 6 Series Commissioning Instructions

SVA 6xxx Commissioning instructions
060652-45532 – 05/2023 3
3.3 Technical data
Supply voltage: 12 or 24VDC stabilized
(+/- 10%)
Temperature range: -25°C to +70°C
Relative humidity: up to 95% at 55°C
no condensation
Power consumption: 0.15 A at 12 V DC
0.3 A at 24 V DC
Status messages via potential-free contacts
Contact load capacity: 100mA at max. 30 V DC
Protection category: IP54
Tubular frame
locks
Solid door locks
Rear backset: 15mm 33mm
Distance between door
handle and locking cylinder:
92mm for
profile cylinder
94mm for
round cylinder
72 mm profile
cylinder
74 mm round
cylinder
Bolt throw: 20mm 20mm

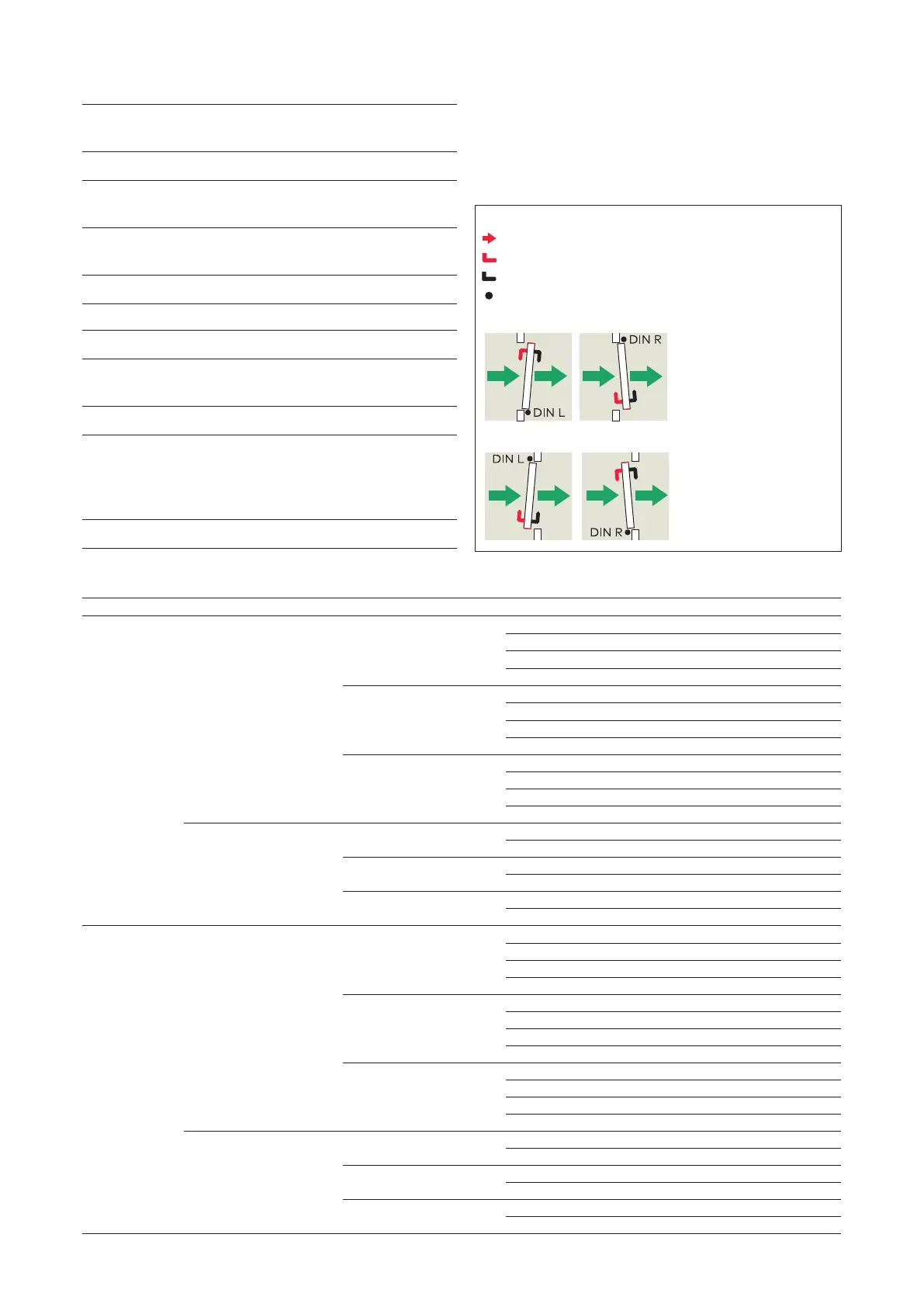

3.4 Variants
The door must always be opened in the escape
direction.
Depending on the design and type of mounting, the
escape route direction is outwards opening (normal
case) or inwards opening (special case).
Outwards opening (normal case)
Inwards opening (special case)
Door must always be opened in the escape direction
Escape direction
Door handle permanently engaged
Door handle can be electrically operated
Door hinge L/R
3.4.1 Variants for solid doors, adjustable quiescent current/operating current principle
Locking cylinder Door type Backset B DIN Type Order no.
Profile cylinder Folding door
Forend: 235 x 20
65 L-outwards/R-inwards SVA6271 
R-outwards/L-inwards SVA6272 
L-in/R-outwards SVA6273 
R-inwards/L-outwards SVA6274 
80 L-outwards/R-inwards SVA6281 
R-outwards/L-inwards SVA6282 
L-in/R-outwards SVA6283 
R-inwards/L-outwards SVA6284 
100 L-outwards/R-inwards SVA6291 
R-outwards/L-inwards SVA6292 
L-in/R-outwards SVA6293 
R-inwards/L-outwards SVA6294 
Butt door
Forend: 235 x 24
65 L-outwards/R-inwards SVA6277 
R-outwards/L-inwards SVA6278 
80 L-outwards/R-inwards SVA6288 
R-outwards/L-inwards SVA6277 
100 L-outwards/R-inwards SVA6297 
R-outwards/L-inwards SVA6298 
Round cylinder Folding door
Forend: 235 x 20
65 L-outwards/R-inwards SVA6371 
R-outwards/L-inwards SVA6372 
L-in/R-outwards SVA6373 
R-inwards/L-outwards SVA6374 
80 L-outwards/R-inwards SVA6371 
R-outwards/L-inwards SVA6382 
L-in/R-outwards SVA6383 
R-inwards/L-outwards SVA6384 
100 L-outwards/R-inwards SVA 6391 
R-outwards/L-inwards SVA 6392 
L-in/R-outwards SVA 6393 
R-inwards/L-outwards SVA 6394 
Butt door
Forend: 235 x 24
65 L-outwards/R-inwards SVA6377 
R-outwards/L-inwards SVA6378 
80 L-outwards/R-inwards SVA6387 
R-outwards/L-inwards SVA6388 
100 L-outwards/R-inwards SVA6397 
R-outwards/L-inwards SVA6398 
