7.2 Smoke detector

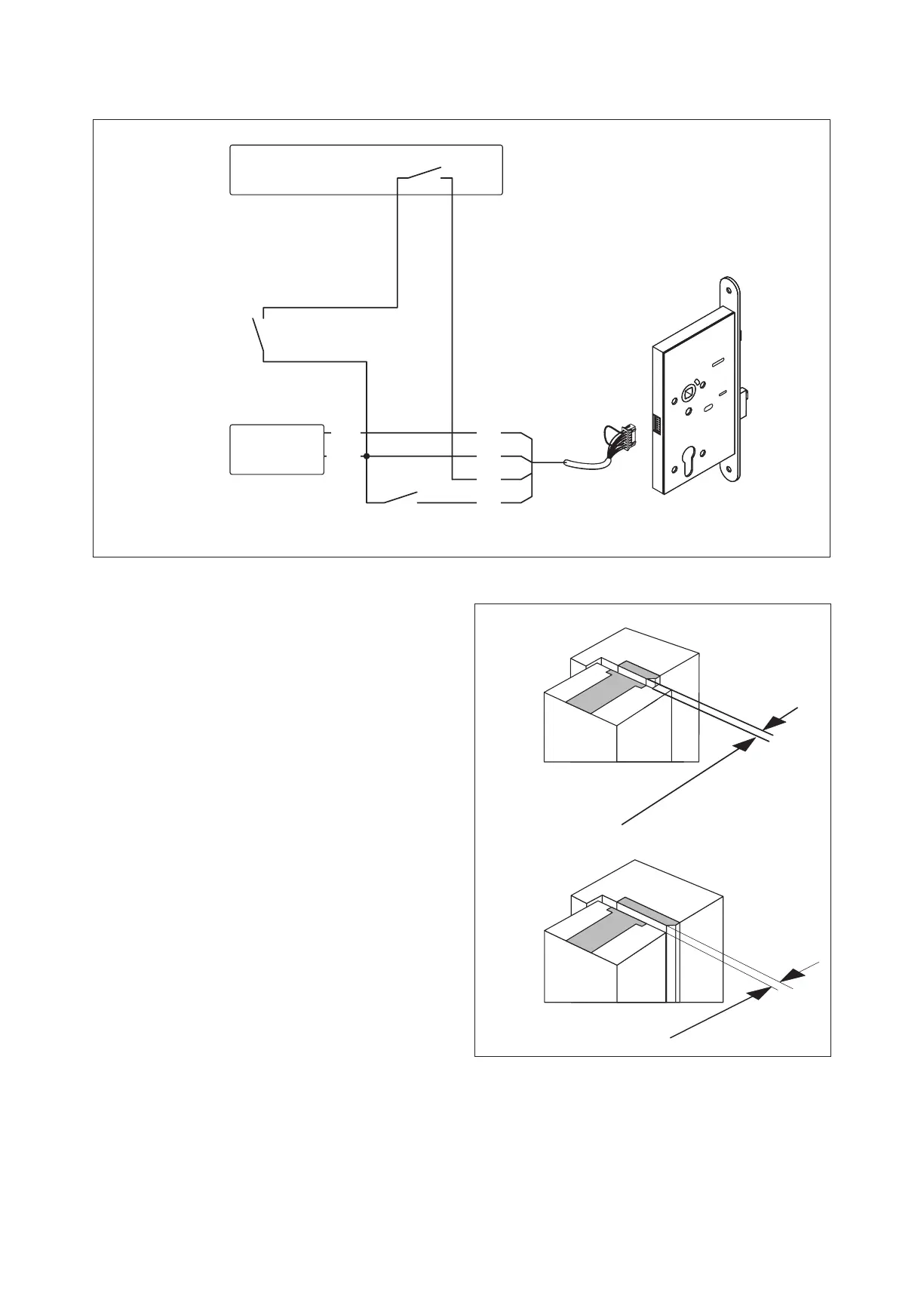

Fig. 31

Control

Option: Door contact

24V power

supply unit

24V

GND

Wiring of smoke detectors with a SVP 2000/SVP 2000F

8 Complete mounting

1. Measure the distance between forend and striking

plate (Fig. 32). If necessary, adjust the door leaf or

door frame.

2. Check that all the parts provided have been

mounted and that no subsequent modifications

have been made or additional locking devices

added.

3. Make sure that the locking points are not blocked.

4. Use a force gauge to measure and record the

actuating forces required to release the escape

door lock. The actuating forces may be max. 70N

for escape doors according to EN179 and max.

80N for escape doors according to EN1125.

5. This manual must be handed over to the facility

operator and regular maintenance and recording

duties must be observed (see chapter 10).

Fig. 32

2.5

max. 5

Rebated door

2.5

max. 5

Non rebated door

Check the door gap

SVP/SVZ door locks 2020-03WN 059744 45532

dormakaba Mounting instructions Complete mounting
