4.4 Preparatory work
4.4.1 Mill-cut and drill door leaf and door
frame for tubular frame locks
Fig. 10
*1) ST 3.9x19 A2-70 (EN ISO 7050)
*2) depending on fitting
*3) 45 at backset 35
50 at backset 40
55 at backset 45

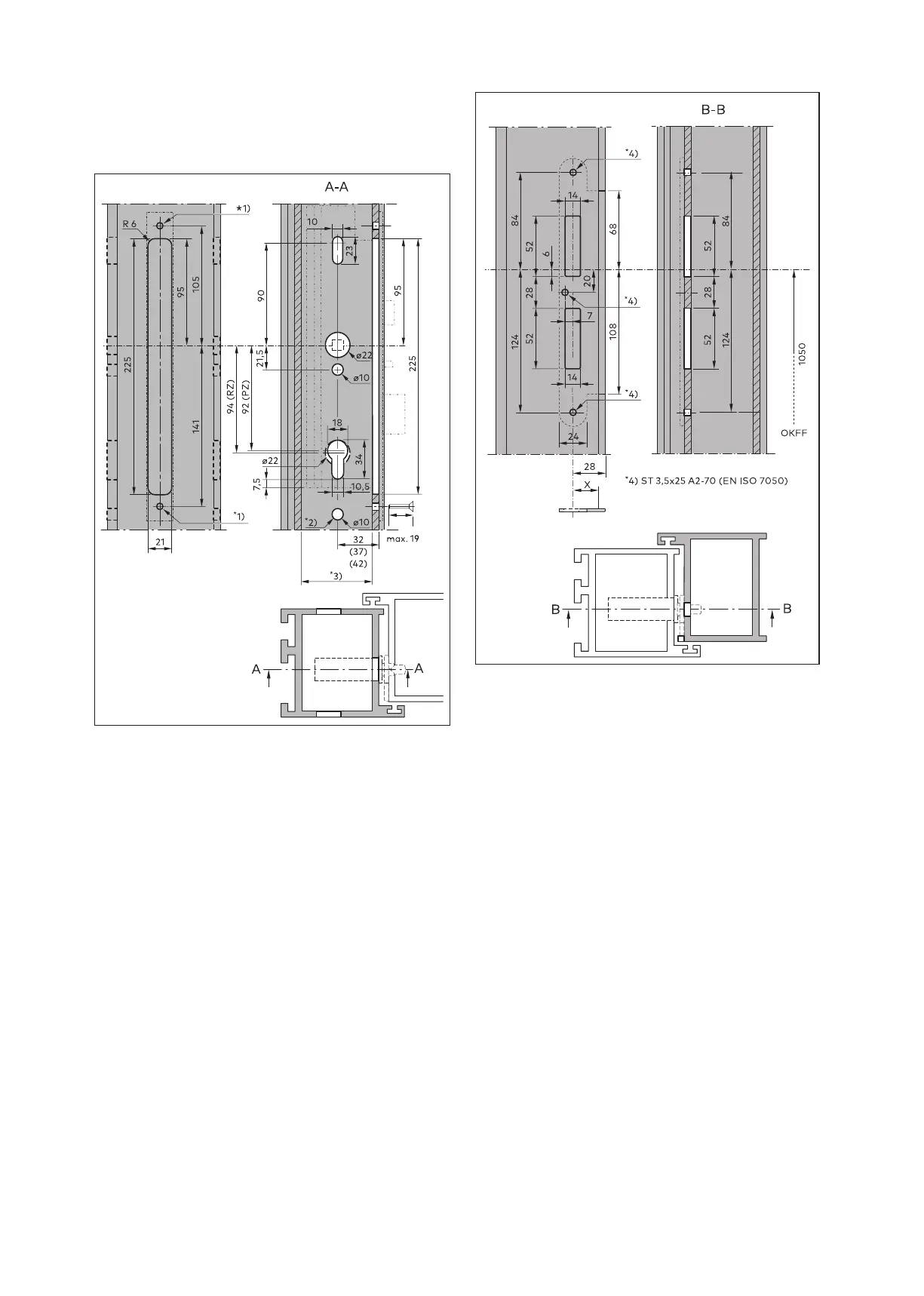

Cut-outs and pre-drilled holes in door leaf
Fig. 11 Cut-outs and pre-drilled holes in door frame
9
SVP/SVZ door locks 2020-03WN 059744 45532
dormakaba Mounting instructions Mounting
