A-13

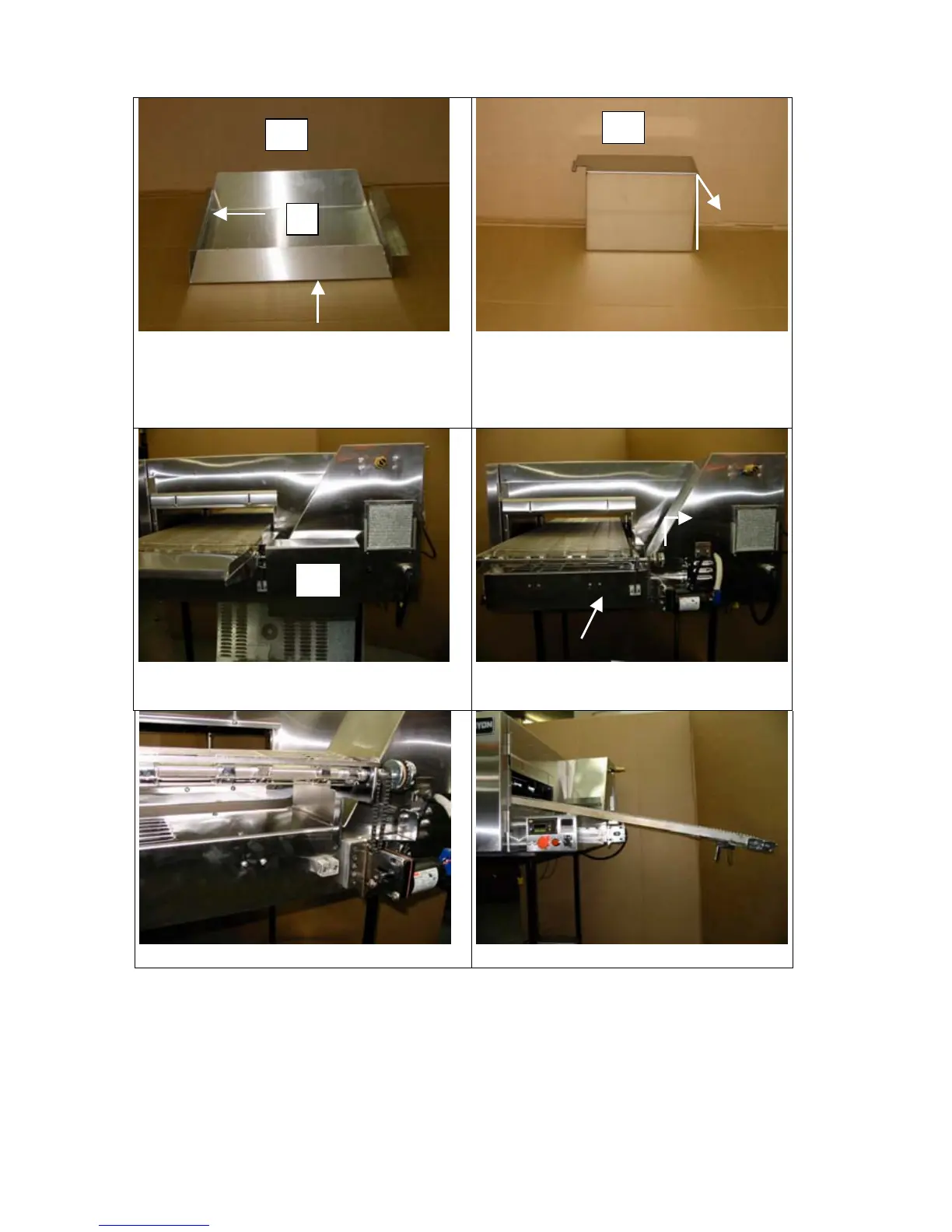

5. Left tray ( D ).
♦ To remove the tray :
♦ Push ( 1 ) to the right (5mm), then
lift (10mm), then pull to the left.
7. Remove gearbox cover ( E ).
♦ Lift ( 2cm ).
♦ Pull away from oven.
6. Remove gearbox cover ( E ). 8. Remove rubber strap.
♦ Lift gearbox to remove the chain.
9. Lift conveyor ( 2cm ) and pull it out. 10. Remove conveyor completely.
D
1
E
E
To Next Page
