Mach M3
Dr. Mach
Lamps and Engineering
10. Appendix

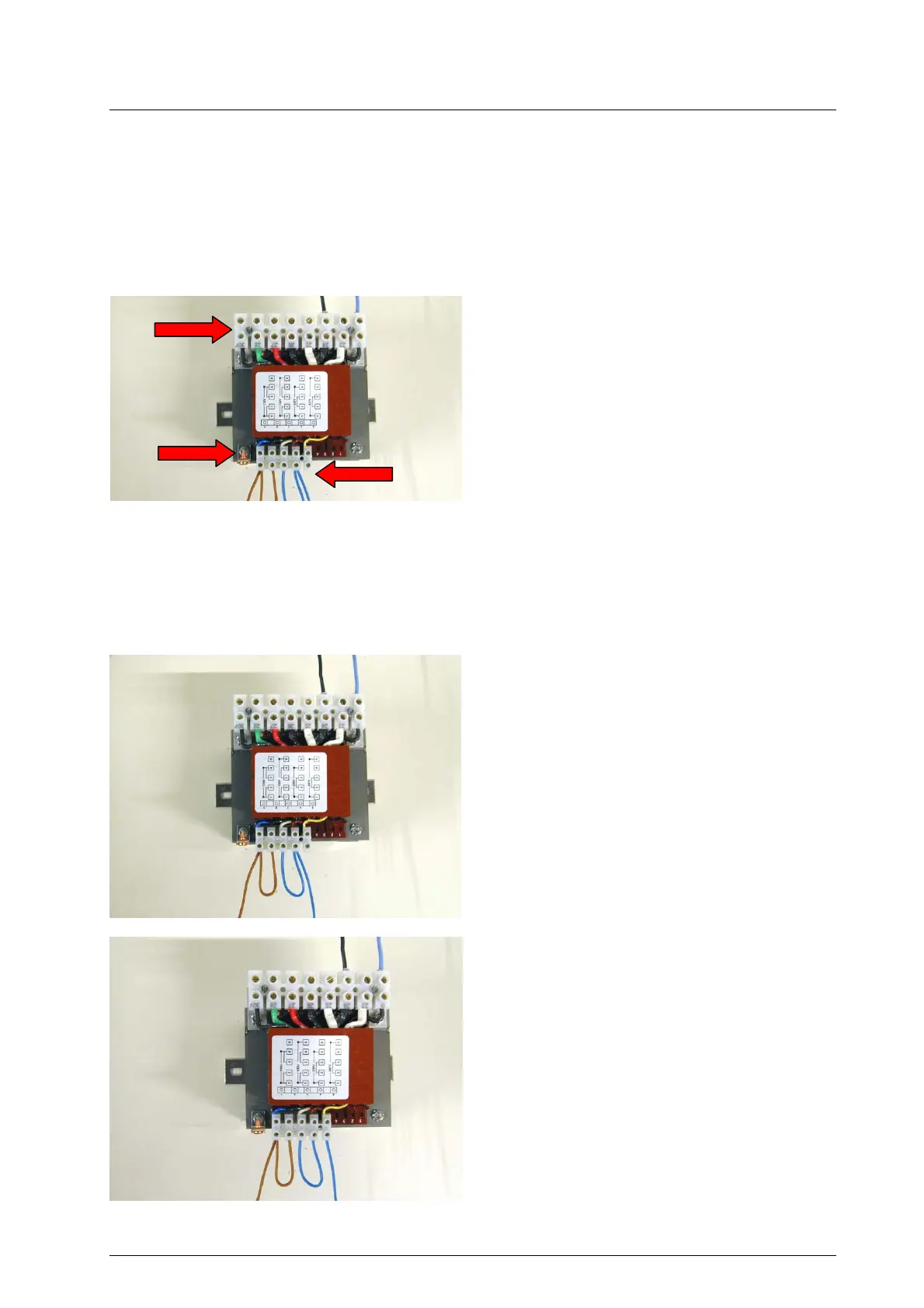

Setting the primary voltage at the
block transformer 300VA (extra)
Clamps on the transformer
Pos.1 earthing connection at the
transformer
Pos.2 primary side
Pos.3 secondary side
3
1
2
• Connect the transformer to earth. Use the provided clamps pos.1 at the transformer, respectively at
the transformer plate.
See also the explanations on page 19/46 of the mounting instructions “Ceiling and wall
attachment” no. 59500001 / edition 05.
Overview of the possible settings of the primary voltage
Setting for115V
Setting for 132V
59200001 Edition 06 28.11.2002 / Bak page 20/22
