2.2 Adjusting the illuminated area by
merging the light fields
(for F and F/H-models)

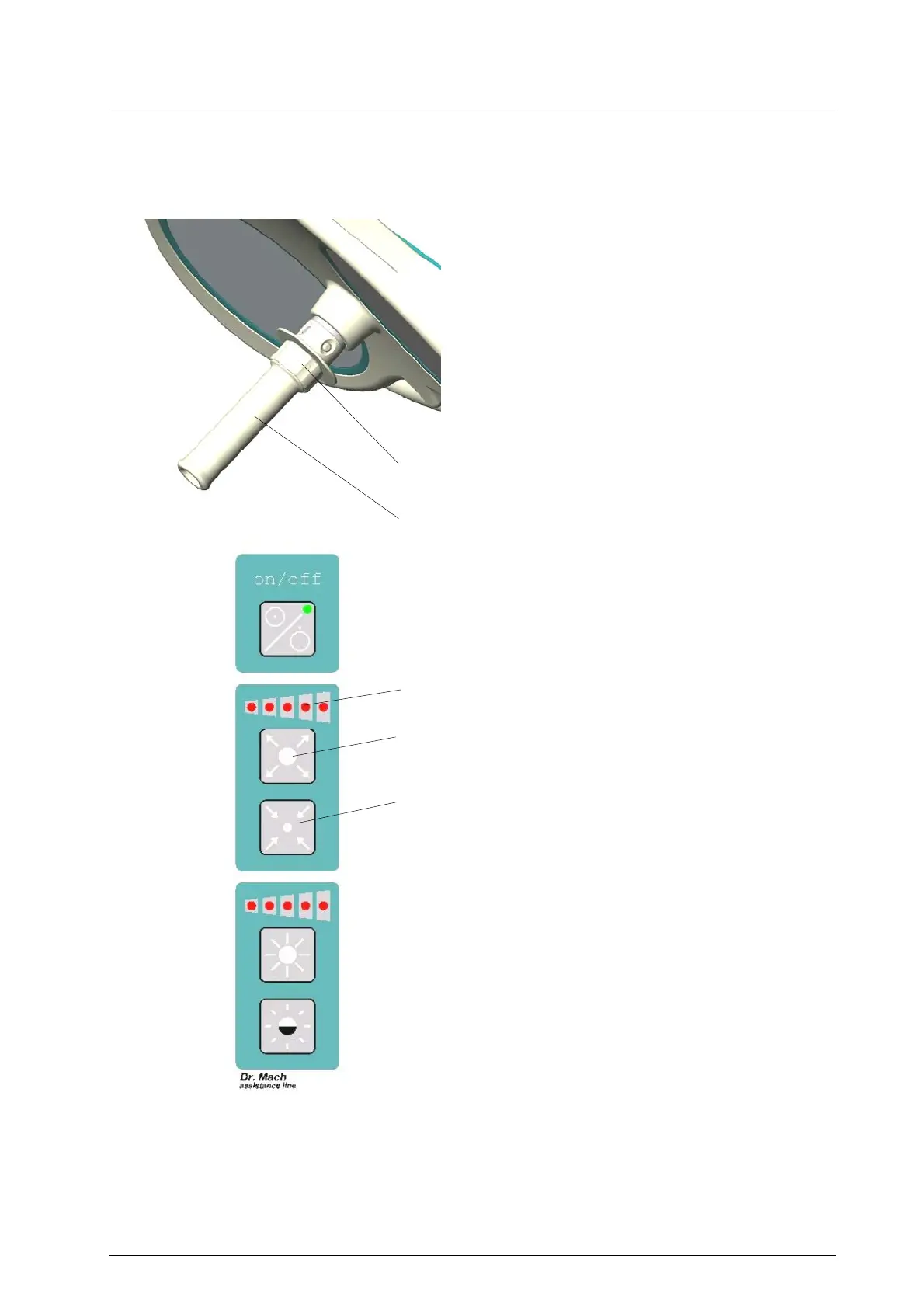

All F and F/H lamp models offer the feature of
“merging the light fields”. This feature is activated by
turning the sterilisable handle 1.
Remark:
The ring 2 has no function here.
2.3 Adjusting the illuminated area by
merging the light fields and
focusing – Duo-Focus system
(for DF and DF/H models)
DF- and DF/H-models also have a “focusing”
function (Duo-Focus).
The combination of merging of light fields and
focusing (Duo-Focus-system) enables the ideal
adjustment of the light field to the wound area in a
range from 8 cm to 35 cm diameter. Such a large
range of adjustment is not possible with conventional
technique.
To activate the focusing function turn the adjusting
ring 2 on the handle or, -if the lamp is equipped with
a keypad at the cardan bow (for DF/H-models) –
press touch buttons 5,6.
Press touch button 5 to expand the focus and touch
button 6 to bundle the light on a minimum area. The
current focused diameter is shown in the LED-display
4.
