2.4 Overview of the lamp functions

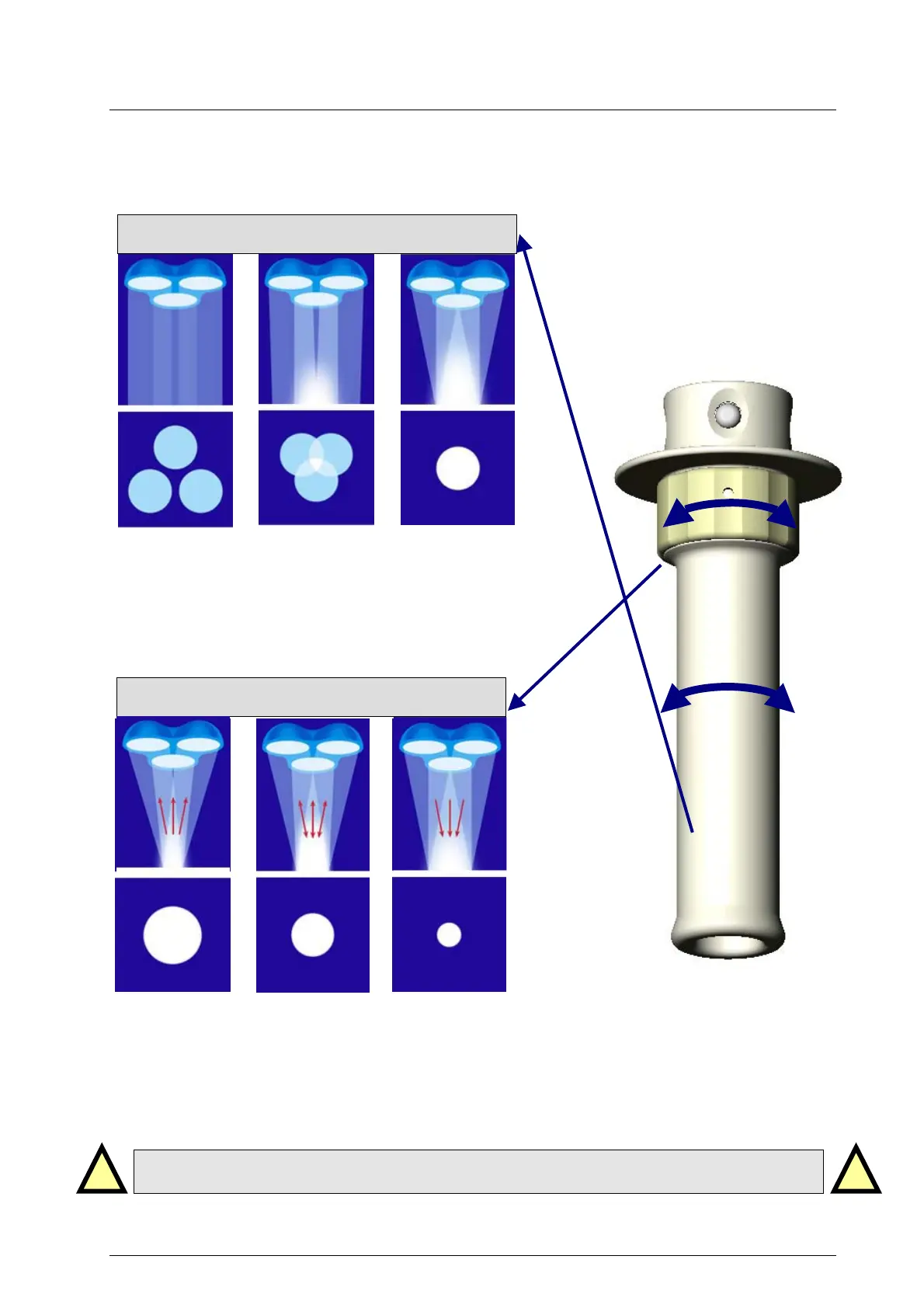

Merging of light fields and focusing
Merging the individual light fields of each reflector
is done by swivelling the reflectors. The light fields
overlap.
This feature is activated by turning the sterilisable
handle (1).
Focusing is done by moving the bulbs inside the
reflectors up or down. In this way you can further
adjust the illuminated field to an extra small or extra
large size, depending on the specific requirements.
This feature is activated by turning the ring (2) at the
top of the sterilisable handle.
FOCUSING
MERGING OF LIGHT FIELDS
Ring (2)
Handle (1)
Always activate merging of light fields first by turning the handle (1), then activate
focusing when necessary by turning the ring (2)
!!
