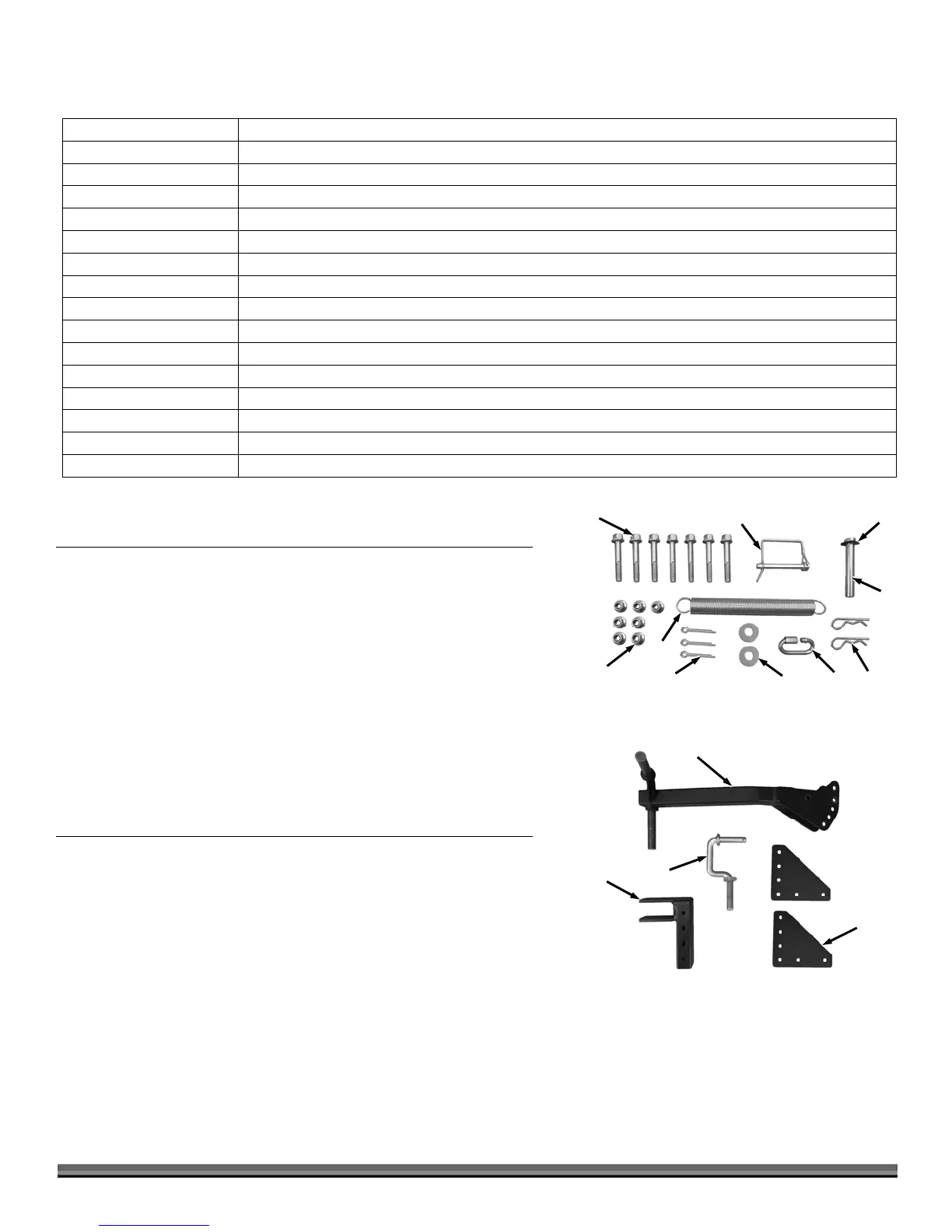

CONTACT US AT www.DRpower.com 7
Specifications
Engine
625 Series Briggs and Stratton. See your Engine owner’s manual for detailed Engine Specifications
Cutting Width
22"
Cutting Heights
2.7", 3.2", 3.7", 4.2", 4.7"
Cord Tip Speed (mph)
220
Cord Size
0.155" (Blue) or 0.175" (Green)
Offset Maximum Reach
POS #1: 29", POS #2: 40.5", POS #3: 51"
Frame
Welded Steel
Spindle Housing
Cast Aluminum
Spindle Shaft
Steel D Shaft
Drive Belt
Double V, AA62
Drive Engagement
Clutch Free Belt Drive
Cord Line Plates
5 Line Plates, 4" diameter
Mow-Ball
Heat, Impact, and UV-Resistant Polymer, 4"
Wheels
Pneumatic, 9 x 3.5-4", -Caster, Plastic, 6 x 2 x 5/8"
Machine Dimensions
66" L x 35" W x 21.5" H
Machine Weight
74 lbs.
Hardware Bag Parts (Figure 2 and Table Below)
Item Part no. Description QTY
1 ........ 33348 .......... Bolt, Hex, Flange, 3/8-16 X 2.5" ............................... 7
2 ........ 21155 .......... Pin, Snap Safety, 3/8" X 2.75" .................................. 1
3 ........ 18967 .......... Washer, Flat, Neoprene, .490" ID X
1.06" OD X .09" TH .................................................. 1
4 ........ 21154 .......... Pin, Clevis, 1/2" OD X 3.5" LG ................................. 1
5 ........ 16003 .......... Pin, Hair, 1/2" To 9/16", .12" Wire........................... 2
6 ........ 33443 .......... Link, Chain, Threaded Connector,
9/16" ID, 1/4" TH ..................................................... 1
7 ........ 12685 .......... Pin, Cotter, 3/16" X 1.5" ........................................... 3
8 ........ 33333 .......... Nut, Nylon Lock, Flanged, 3/8-16 ............................ 7
9 ........ 34147 .......... Spring, 1" Diam. X 9" L X .095" TH .......................... 1
10 ...... 15745 .......... Washer, Flat, 5/8", USS ............................................ 2
Parts Box (Figure 3 and Table Below)
Item Part no. Description QTY
1 ........ 337631 ........ Swivel Frame ............................................................. 1
2 ........ 279331 ........ Bracket, Hitch Adjustment ....................................... 2
3 ........ 337701 ........ Caster, Yoke 1
4 ........ 254891 ........ Hitch Assembly ......................................................... 1
Compare the contents of the Hardware Bag and Parts Box with the lists and
photos above. If you have any questions please contact us at
www.DRpower.com or call 1-800-DR-OWNER (376-9637) for assistance.
8
Figure 2
7
6
5
4
3
2
1
9
10
4
Figure 3
3
2
1
