28 DR
®
FIELD and BRUSH MOWER
To Replace the Drive Belt
BEFORE PERFORMING ANY MAINTENANCE PROCEDURE, STOP THE ENGINE AND DISCONNECT THE
SPARK PLUG WIRE(S).
USE ONLY DR BELTS ON YOUR MACHINE. THEY HAVE BEEN THOROUGHLY TESTED AND PROVEN FOR
MANY HOURS OF USE.
Tools Needed:
• 7/16" socket
• 1/2" wrench
• 9/16" wrench
• Gloves
1. Drain the gas and oil.
2. Remove the Blade Belt following the instructions as outlined in the previous page.
3. Remove the pin and collar (Figure 17), and then pull the power unit away from the deck.
4. Tilt the power unit forward onto the attachment pin.

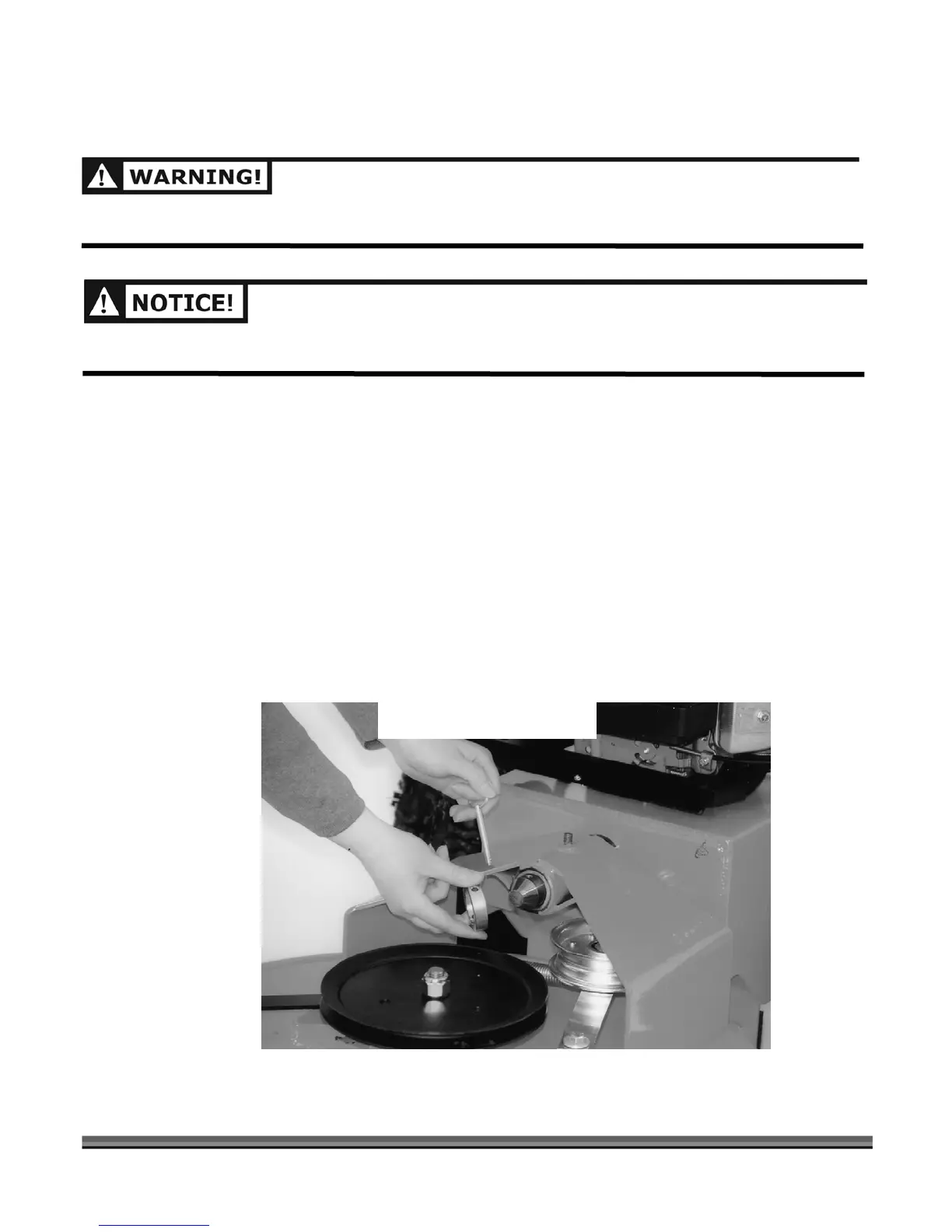

Figure 17
Remove Pin and Collar
To Next Page
