DR PRO-16 User Manual

8 DR
®
PRO-16 Battery Lawn Mower
Specifications
Model Number
CE73016XEN
Cutting Width
380mm (15 inch)
Cutting Height 25 - 75 mm (1-3"); 6 positions; single point adjustment
Motor Power
700 W Brushless Motor
Peak Voltage (V)
62.7
Battery
41421 (2.5 Ah) battery Included
Charger
41423 (2.5 Ah) charger included
Wheel Size Front: 150mm (6"); material, Rear: 180mm (7")
Wheel Material
PVC and rubber
Dimensions
51.5" Long X 17.5" Wide (Side Discharge Chute removed) X 39" High
Weight
26 kg
Parts Supplied in Shipping Box:
Item # Description Qty
1 ............. Grass Catcher Assembly ......................... 1
2* ........... 2.5 Ah Charger ........................................ 1
3 ............. Lower Handlebar ..................................... 1
4 ............. Wrench Handle Assembly ...................... 1
5* ........... 2.5 Ah Battery . ........................................ 1
6 ............. Rotary Knob Assembly ............................ 1
* Shipped separately
Compare the contents of the Shipping Box with the “Parts Supplied” list above.
If you have any questions please contact us at www.DRpower.com or call 1-800-
DR-OWNER (376-9637) for assistance.
Charge the Battery Pack before your first use
The DR PRO-16 Battery Lawn Mower uses a sealed, Lithium-Ion Battery Pack.
You MUST charge the Battery Pack for at least 60 minutes before you use the
Mower for the first time. If you do not charge it before using the Mower, the
Battery Pack’s charging capacity may decrease.
1. Connect the charger to a 120VAC outlet. When the Battery is not installed
(no load condition): The Red LED will be lit.
2. Insert the Battery into the Charger (Figure 4). Under normal charging the
Green LED will Blink.
3. When the Battery is fully charged, the Green LED will remain light,
indicating that charging is complete.
4. Unplug the Charger from the Outlet and remove the Battery.
Note: There are more detailed instructions for charging and maintaining
the Battery/Charger in Chapter 4
4

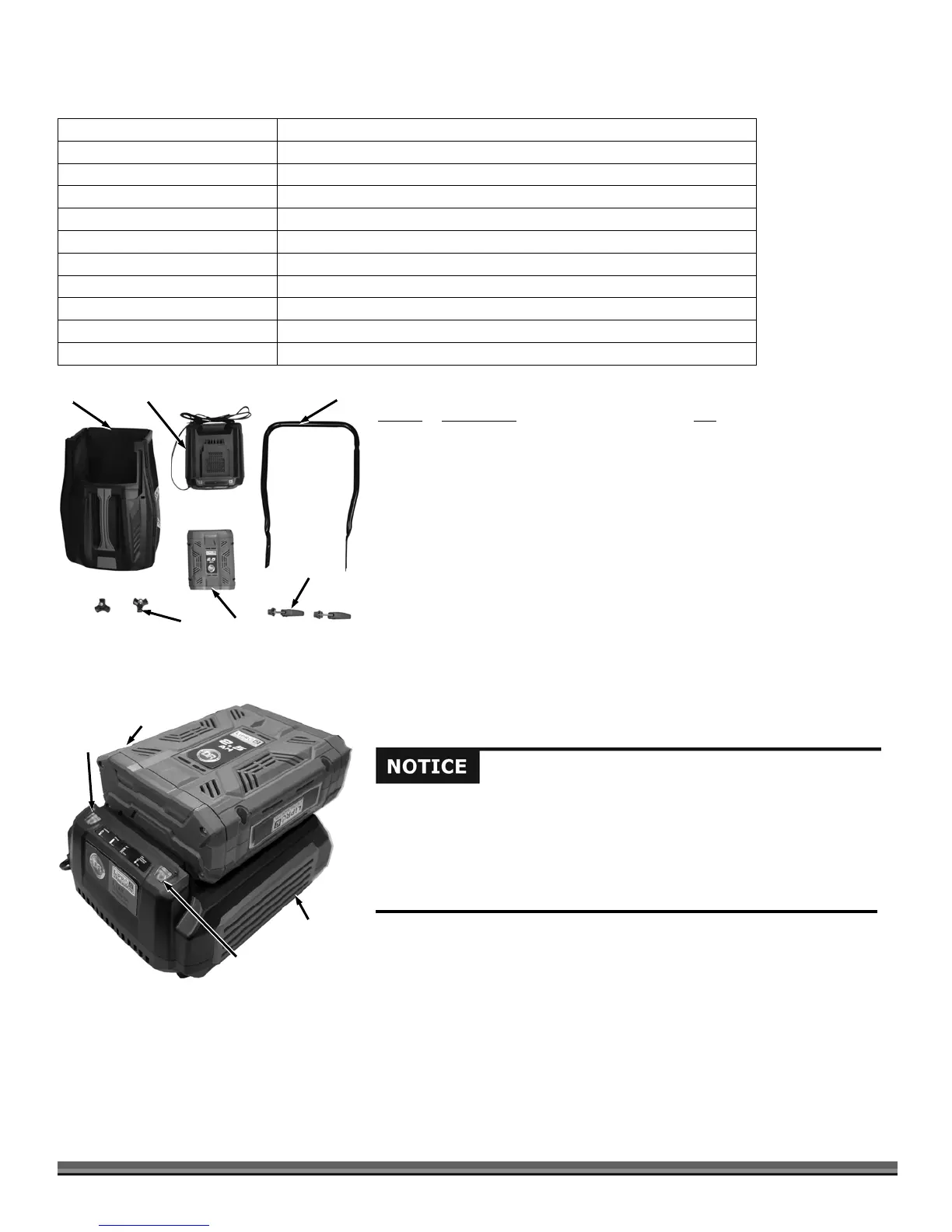

Figure 3
6
3
1
2
5
Figure
4
Charger
Battery
Red LED
Green
LED
•
Make sure t
he Charger Power Supply is plugged into a normal household
voltage, 120volts, 60Hz, AC only.
•
You should operate the Battery Charger in a dry place with temperatures
between 50ºF (10ºC) and +100ºF (+37.8ºC). Operating above +100 ºF
can cause Battery Pack leakage, rust, or degradation of the Battery Pack
performance.
