12 DR
®
WIDE-CUT LAWN MOWER

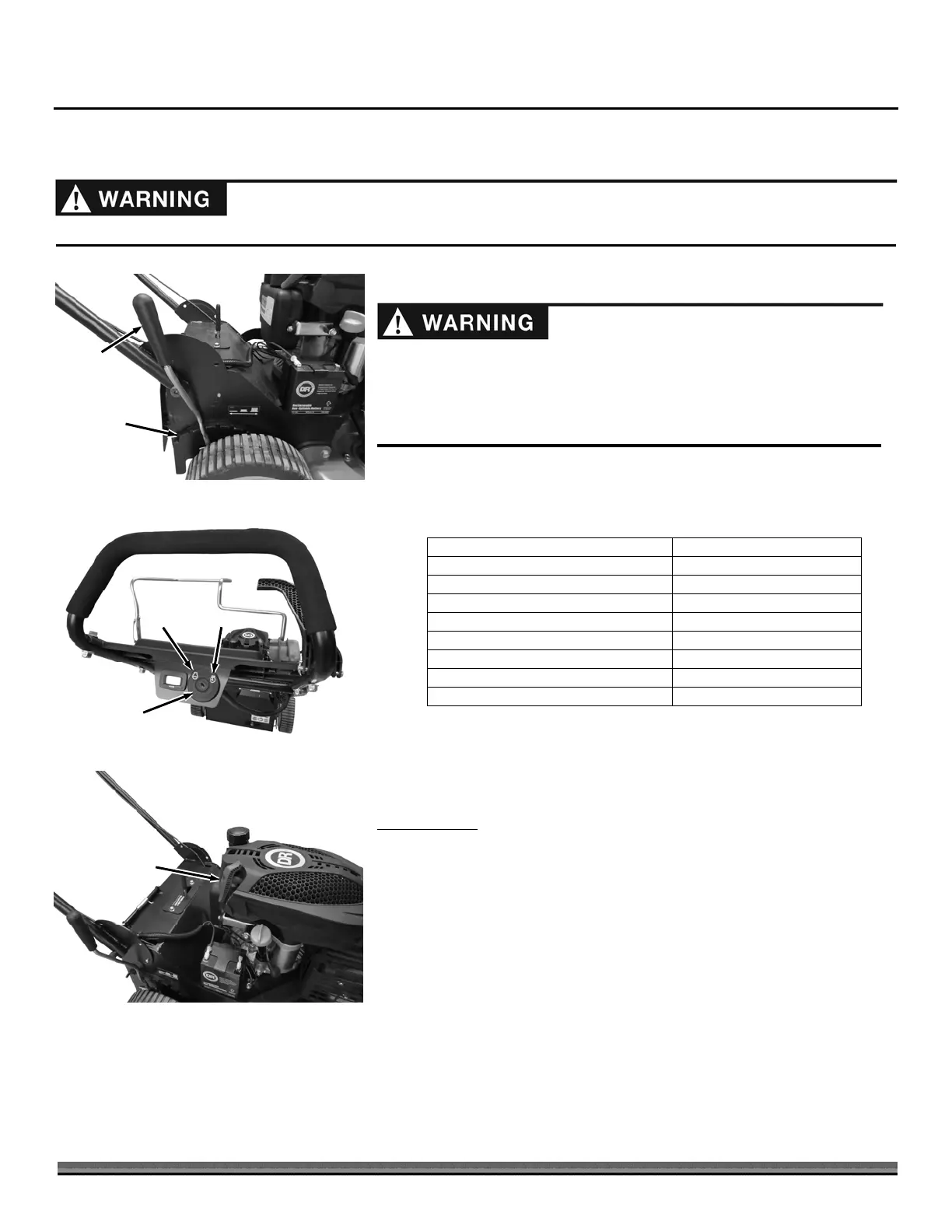

Chapter 3: Operating the DR WIDE-CUT LAWN MOWER
It may be helpful to better familiarize yourself with the features of your Mower by reviewing Figure 1 in Chapter 2 before beginning
the steps outlined in this chapter.
Adjusting the Cutting Height
Use the Height Adjustment Lever to set all four Wheels to the same cutting
height as desired (Figure 7). Pull Lever outward, move Lever to desired position,
and release Lever to lock in notch.
Notch Position Cutting Height
1st: Fully towards rear of mower
1.0 inch (2.5 cm)
2nd:
1.5 inch (3.8 cm)
3rd:
2 inch (5.1 cm)
4th:
2.4 inch (6.1 cm)
5th:
2.9 inch (7.4 cm)
6th:
3.4 inch (8.6 cm)
7th:
3.7 inch (9.4 cm)
8th: Fully towards front of mower
4 inch (10.2 cm)
Starting the Engine
Note: Your DR Engine has a fixed Throttle position and is equipped with an Auto-
Choke. No Throttle or Choke adjustment is required by the operator.
Manual Start
1. Turn the Key to the “RUN” position (Figure 8).
2. Grasp the Recoil Starter Handle and pull slowly until resistance is felt, then
pull rapidly to overcome engine compression and to prevent kick back to
start the engine (Figure 9).
Note: When starting the engine for the first time or if the engine has run out of fuel,
it will take extra cranking time to move fuel from the tank to the engine.
Recoil Starter
Handle
Figure 9
Key
Switch
Figure 8
Stop
Run
Height
djustment
Lever
Figure 7
1st Notch
(see table)
Adjusting the cutting height may bring you into contact with the mowing
blade causing serious injury.
Stop the engine and wait for all moving parts to stop.
Do not put your fingers under the housing when adjusting the cutting
height.
Read and understand all warnings listed in “Chapter 2 General Safety Rules” before operating this Mower.
