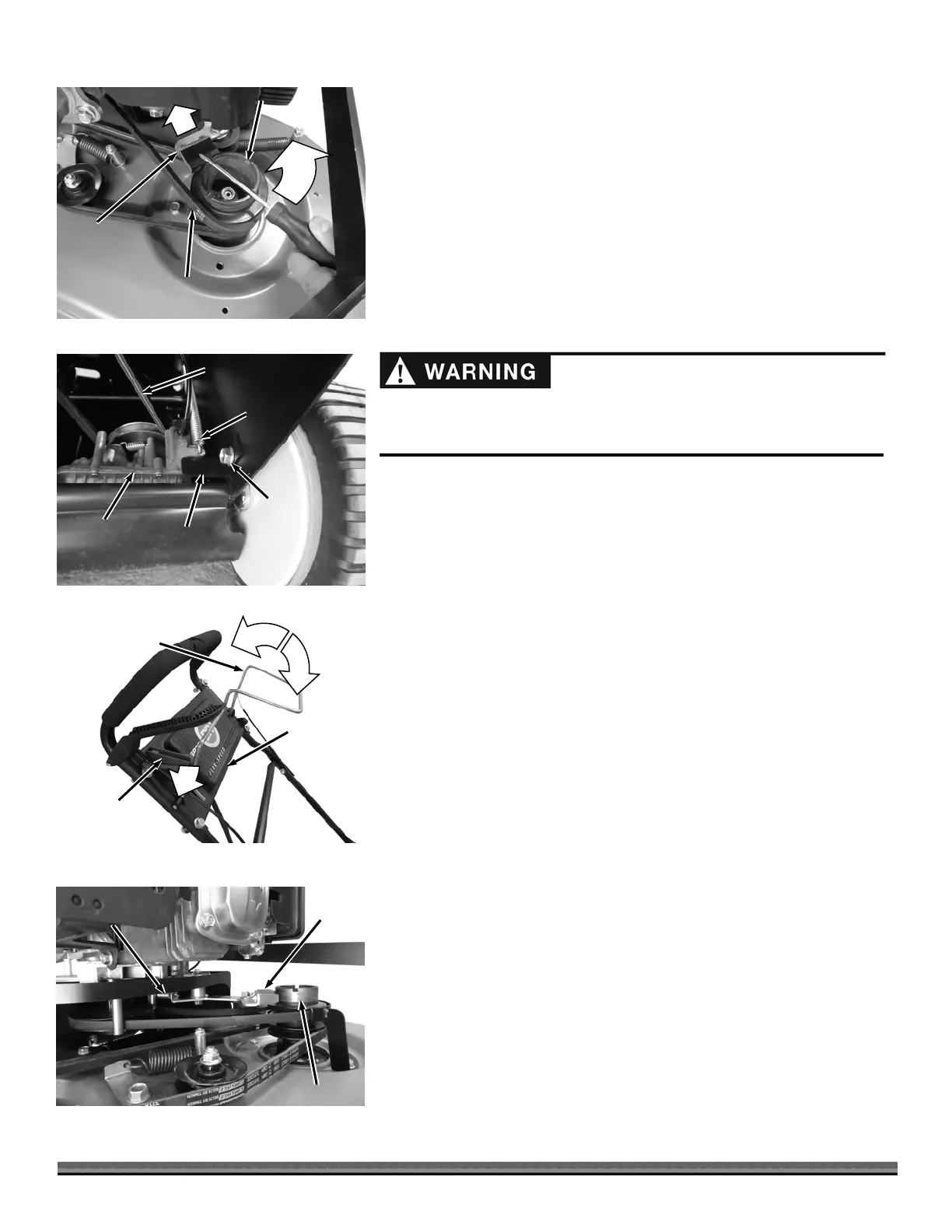

4. Remove the Blade Brake Belt from the Blade Pulley by rotating the Pulley
with a Screwdriver (in slots) as you roll the Blade Brake Belt over the top of
the Pulley (Figure 33).
5. Push the Blade Brake Arm back and remove the Blade Brake Belt from the
Blade and Engine Pulleys.
6. Install the new Belt onto the Engine Pulley and Blade Pulley.
7. Reinstall the Belt Guide.
8. Reinstall the Belt Cover.
9. Reinstall the traction Drive Belt.
Replacing the Traction Drive Belt
Tools and Supplies Needed:
 DR Belt #395651 (SP30), #396151 (SP26)
 9/16" Wrench
 Locking Pliers
1. Support the front of the Mower with Blocks or Jack Stands to gain access
under the Deck.
2. Remove the Bolt securing the Anti-Rotation Bracket and remove the Bracket
(Figure 34).
3. Remove the Spring end from the Transaxle using Locking Pliers.
4. Rotate the transaxle forward to remove the Belt from the Transaxle pulley
and Engine Pulley.
5. Install the new Belt onto the Pulleys.
6. Secure the Spring to the Transaxle using Locking Pliers.
7. Reinstall the Anti-Rotation Bracket.
Adjusting the Blade Engage Cable
The Blade Engage Belt will stretch slightly when new, then more over time. If
the Belt appears to be slipping when mowing, adjust the Blade Engage Cable to
tighten it. The Adjuster is located on the Cable itself. If adjusting the Cable
doesn’t stop the Belt from slipping, replace the Blade Engage Belt.
1. Remove the Belt Cover as described in “Idler Arm Lubrication” steps 1 thru 3
on page 17.
2. Engage and release the Blade Engage Bail Bar a few times, then fully release
it
(Figure 35).
3. With the Blade Engage Bail Bar released, ensure that the Brake Pad is resting
against the Blade Pulley and the Cable going from the Console to the Bail
Bar has a small amount of play(is slightly loose).
(Figure 36).
Brake
Pa
d
Figure 36
Spring and
Cable
Blade Pulley
Blade Engage
Bail Ba
r
Figure 35
2 Step
Lever
1
Handlebar
Console
2
3
A
nti-Rotation
Bracket
Figure 34
Spring
Bolt
Transaxle
Traction D
r
ive Belt
ONLY USE DR BELTS ON THE DR MOWER. The Belts have been tested and
are designed specifically to work with the Blade Braking system. Use of other
Belts could damage the machine and cause serious injury to the operator.
