46 DR
®
TRIMMER/MOWER

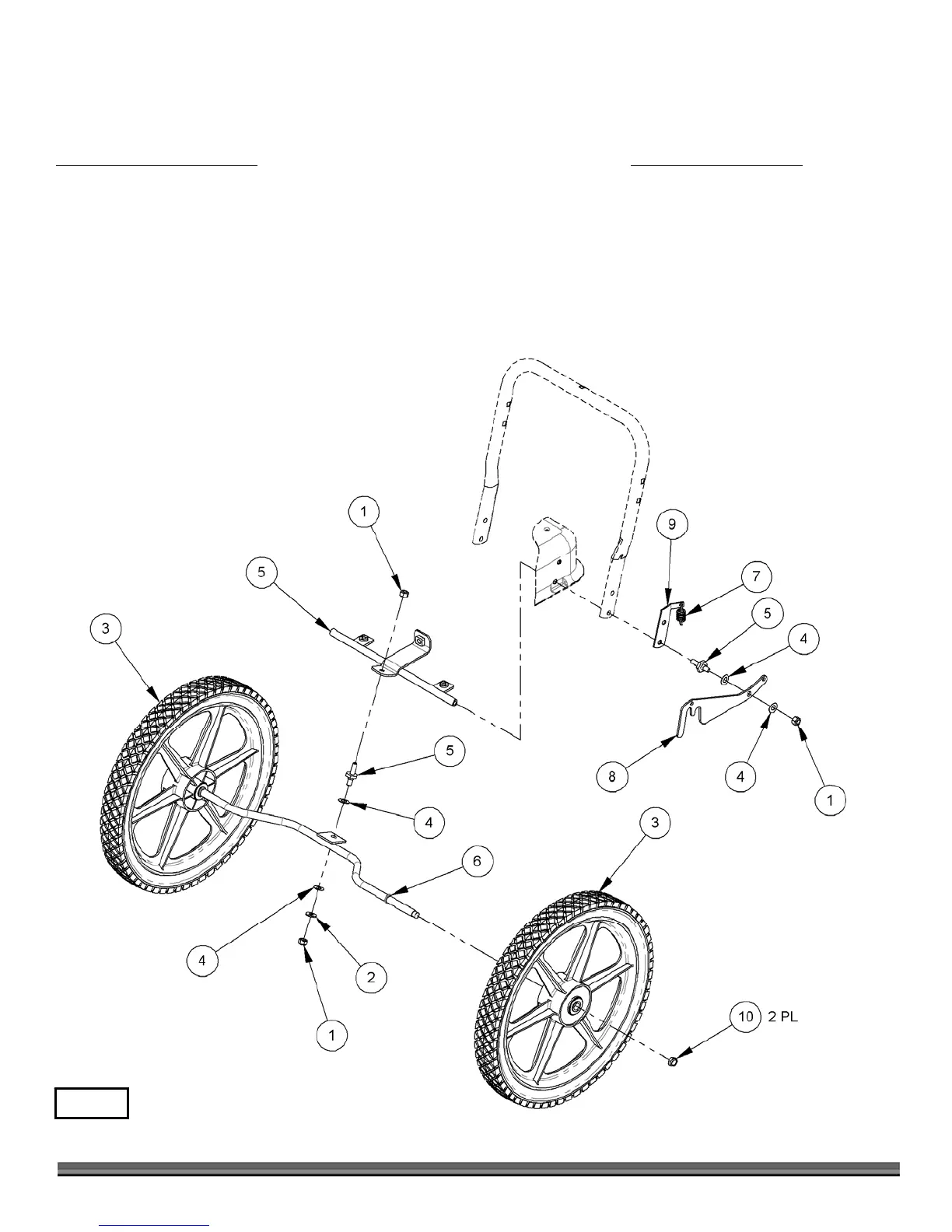

Parts List and Schematic - Axle Assembly - SPRINT
and PRO
NOTE: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
1 110761 Nut, Nylon Lock, 5/16-18
2 112381 Washer, Flat, 1/4", USS
3 147611 Wheel, 16", Nylon
4 121521 Washer, .380"ID X .750"OD, Nylatron
5 143761 Support, Pivot W/ Rod
6 147501 Axle, Trimmer
Ref# Part# Description
7 144011 Spring, Extension, .500"D X .075W X
1.75"L, ZP
8 143621 Arm, PTA Locking
9 143611 Support, PTA Spring
10 152331 Nut, Nylon Lock, 7/16-20, Low Profile
030411
To Next Page
