17.2.6 Volume-controlled ventilation
17.2.6.1 Compliance compensation
The applied VT is corrected by the determined breathing hose compliance, i.e., an
additional volume is delivered in order to ensure the application of the volume to the
patient. On the product variant with the integrated patient-gas measurement
module, the applied VT is corrected by the amount of suction flow as soon as CO
2
respiratory phases are detected.
17.2.6.2 VC
17.2.6.3 VC - CMV
– Volume-controlled
– Pressure-limited
– Time-controlled
– Machine-triggered
– Constant inspiratory flow

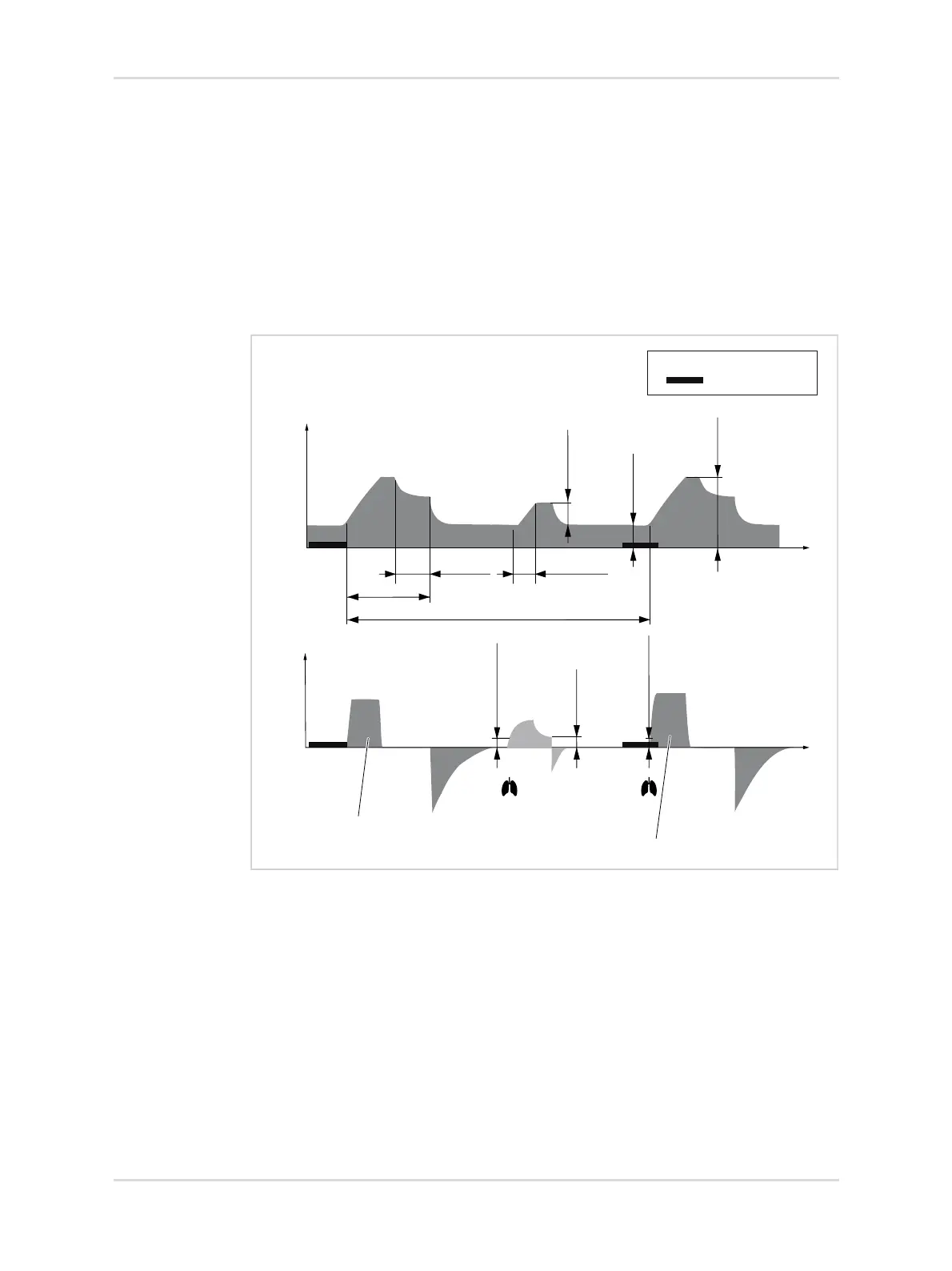

In this volume-controlled ventilation mode, the patient receives the set tidal volume
VT with each mandatory breath.
36287
7LPH
7LPH
7ULJJHUZLQGRZ
LQVS
0DFKLQHWULJJHUHGEUHDWK
3DWLHQWWULJJHUHGEUHDWK
Flow
Paw
Pmax
PEEP
% Tplat
Ti
1/RR
Trigger
Trigger
Insp term
Slope
∆Psupp
