Overview
22 Instructions for use Babytherm 8004/8010

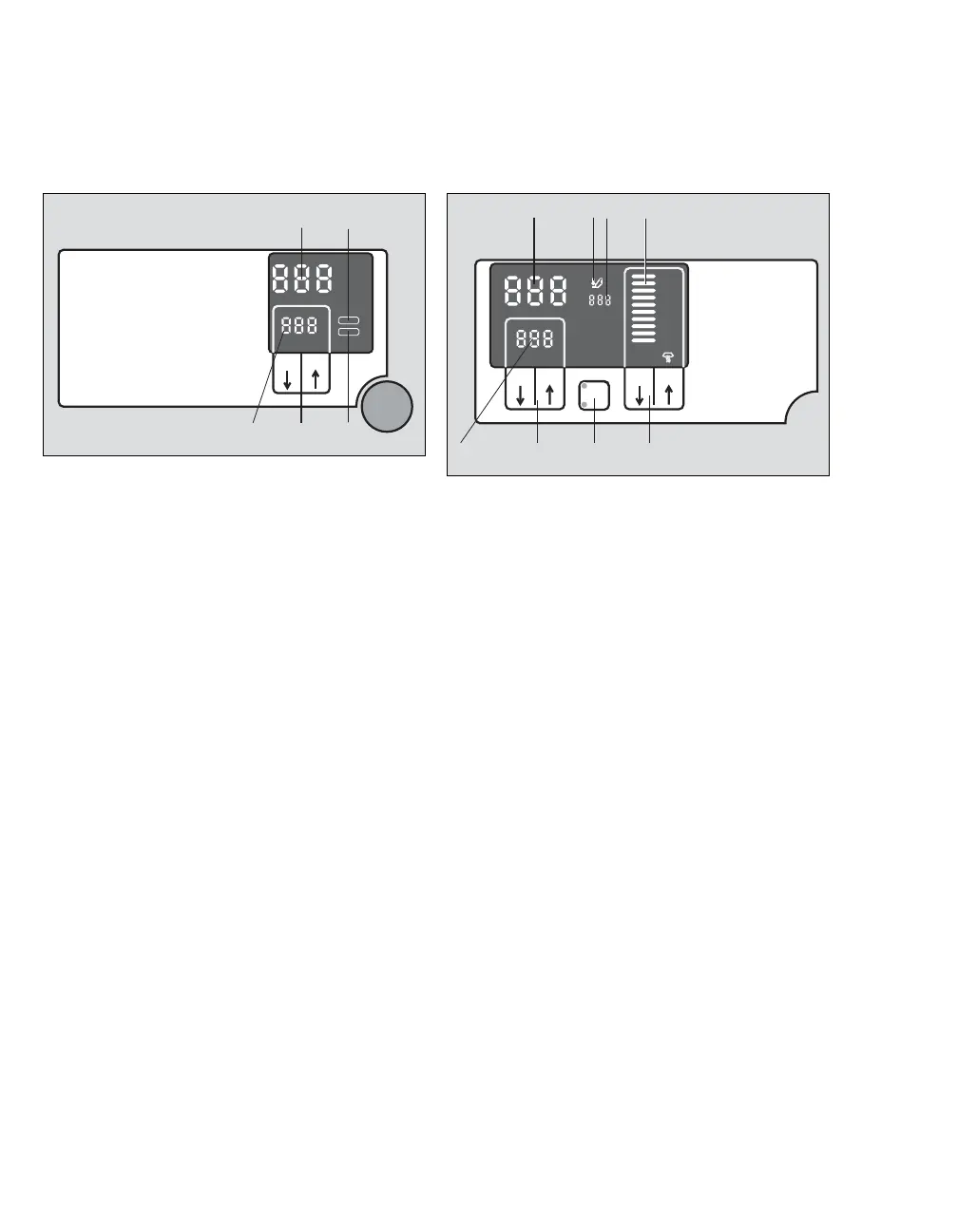

Display and control panel for mattress
heater, Babytherm 8010
1 Display of measured (actual) mattress
temperature
2 Indicator for upper extended range >38 °C
3 Indicator for lower extended range <36 °C
4 Keys (buttons) for setting the desired mattress
temperature
5 Displayed of set (desired) mattress temperature
Display and control panel for the radiant
warmer
1 Display of measured temperature for skin
temperature
2 Foot symbol for peripheral temperature; lit when
the peripheral skin temperature sensor is
connected.
3 Display of the measured value for peripheral
skin temperature; only possible when the
peripheral skin temperature sensor is
connected.
4 Display of radiant warmer heating levels;
levels 1 to 3: green,
levels 4 to 10: yellow.
5 Keys (buttons) for setting the radiant warmer
output level
6 Button for toggling between man. (manual
mode) and Skin (skin temperature mode); the
yellow LED lights up according to the selected
mode.
7 Keys (buttons) for setting the desired skin
temperature
8 Display for the skin temperature setting
083
OK
>
<
12
345
