Dräger Fabius GS - Wall Mounted Machine HBSPS Installation

Installation of HBSPS (Fabius Tiro) Supplement
Fabius GS/GS pr emium/Tiro/OS Supplement Supplement #9038278, Rev. 07 9

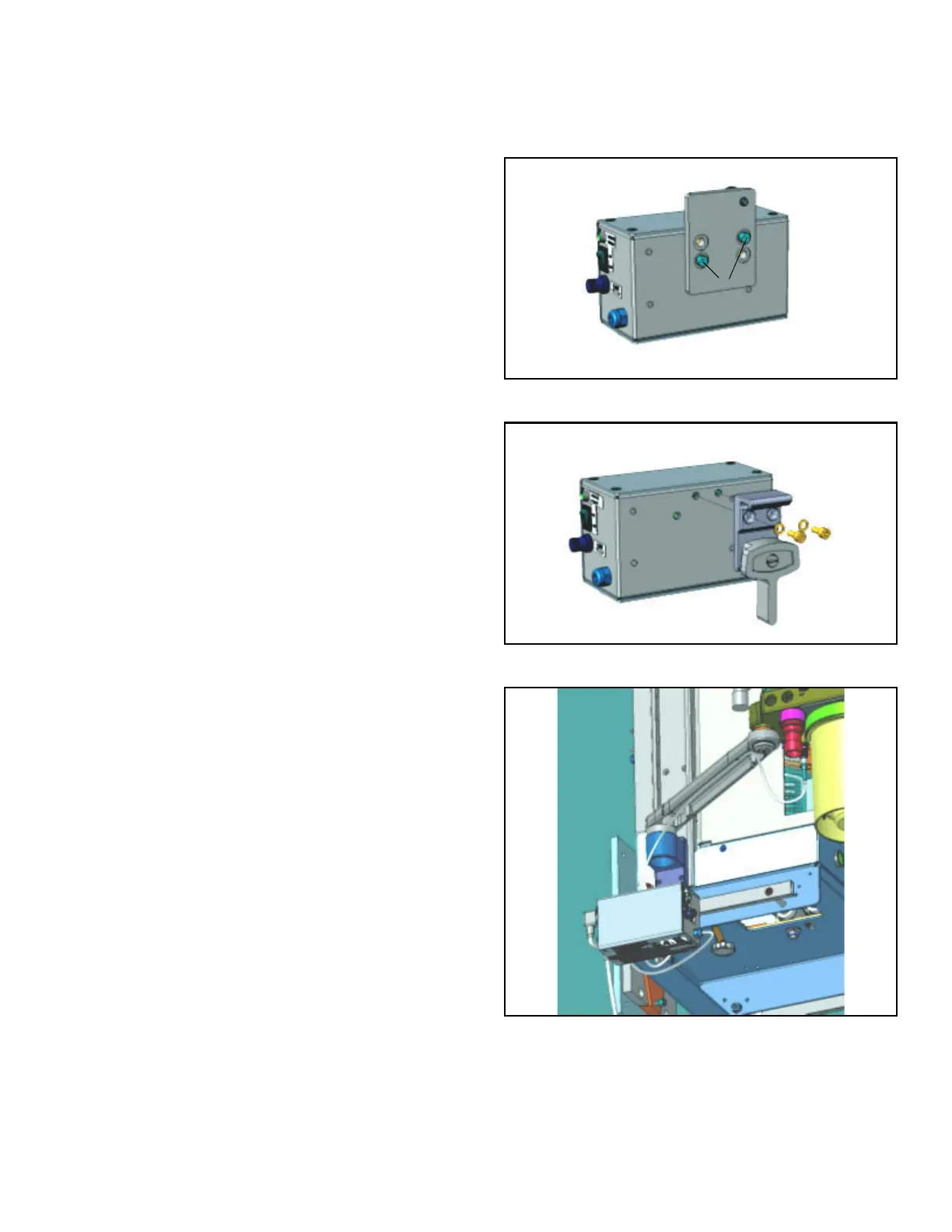

Figure 7. HBSPS Installation on Wall Mounted Machine -
Step 1
Wall Mounted Machine HBSPS
Installation
1. Remove the GCX slide plate (1 in Figure 7) from
the side of the power supply by removing the two
screws (2 in Figure 7).
Figure 8. HBSPS Installation on Wall Mounted Machine -
Step 2
2. Install the Draeger clamp onto the rear side of
the power supply box using the two screws and
lockwashers included with the clamp assembly
(Figure 8).
Figure 9. HBSPS Installation on Wall Mounted Machine -
Step 3
3. Clamp the power supply onto the rear area of the
left hand Drager rail (1 in Figure 9).
1
2
1
