Supplement Installation of HBSPS (Fabius Tiro)
10 Supplement #9038278, Rev. 07 Fabius GS/GS premium/Tiro/OS Supplement
Left Mounted COSY HBSPS Wall Mounted
Installation

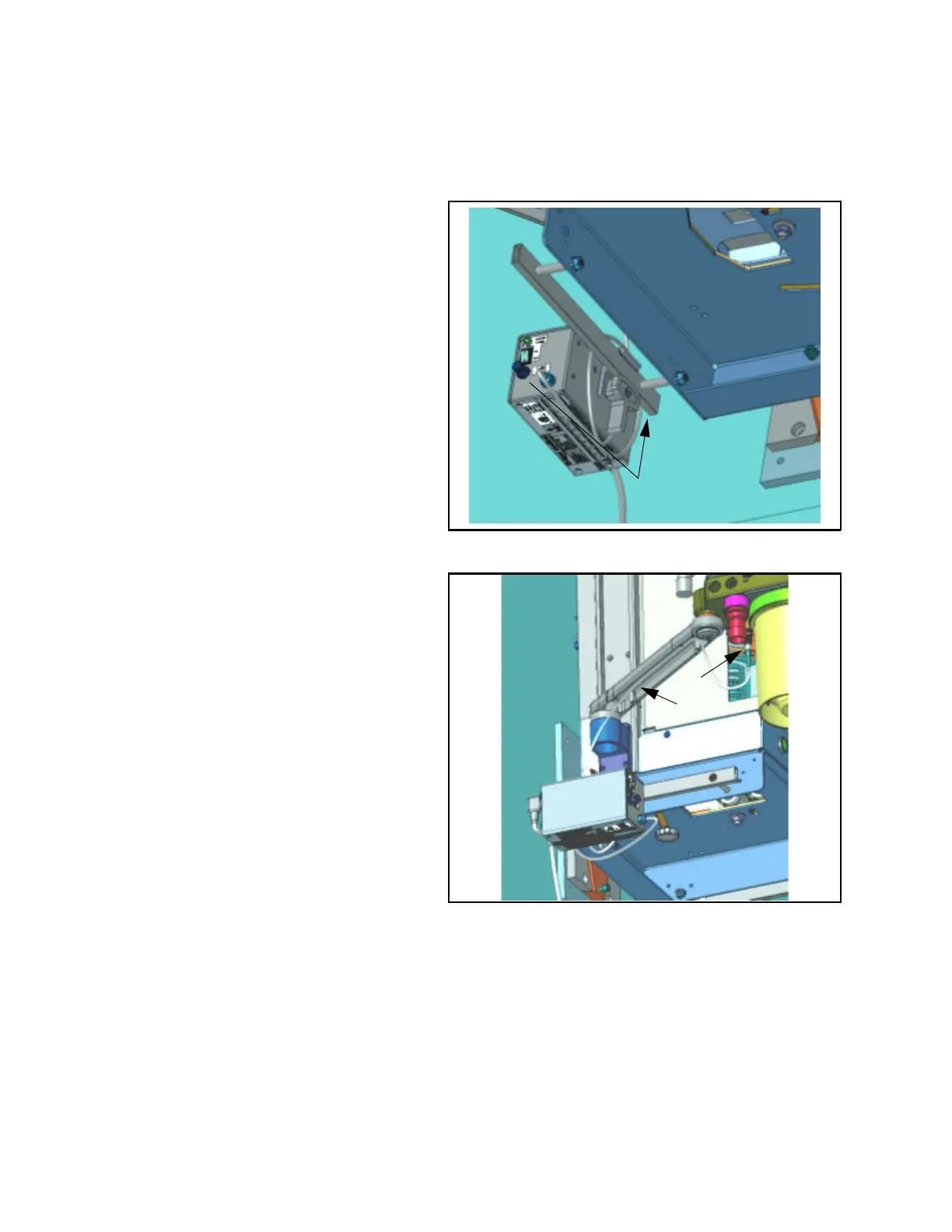

Figure 10. HBSPS Installation on Wall Mounted Machine
(Left Mount COSY) 1
4. On a left mounted COSY, route the power cable
for the heater below and behind the power
supply and then up to the rear of the COSY arm
(1 in Figure 10). Extra cable can be coiled
around the clamp. Push the cable into the cable
management cavity on the bottom of the COSY
arm (1 in Figure 11).
5. Plug the connector at the end of the cable into
the mating connector on the rear, underside of
the COSY (2 in Figure 11). Orient the connector
so that the red mark on the connector plug aligns
with the red mark on the receptacle.
Figure 11. HBSPS Installation on Wall Mounted Machine
(Left Mount COSY) 2
1
1
2
To Next Page
