Dräger Flame 3000
1. Fix the mounting bracket to the mounting location using 8 mm fastenings.

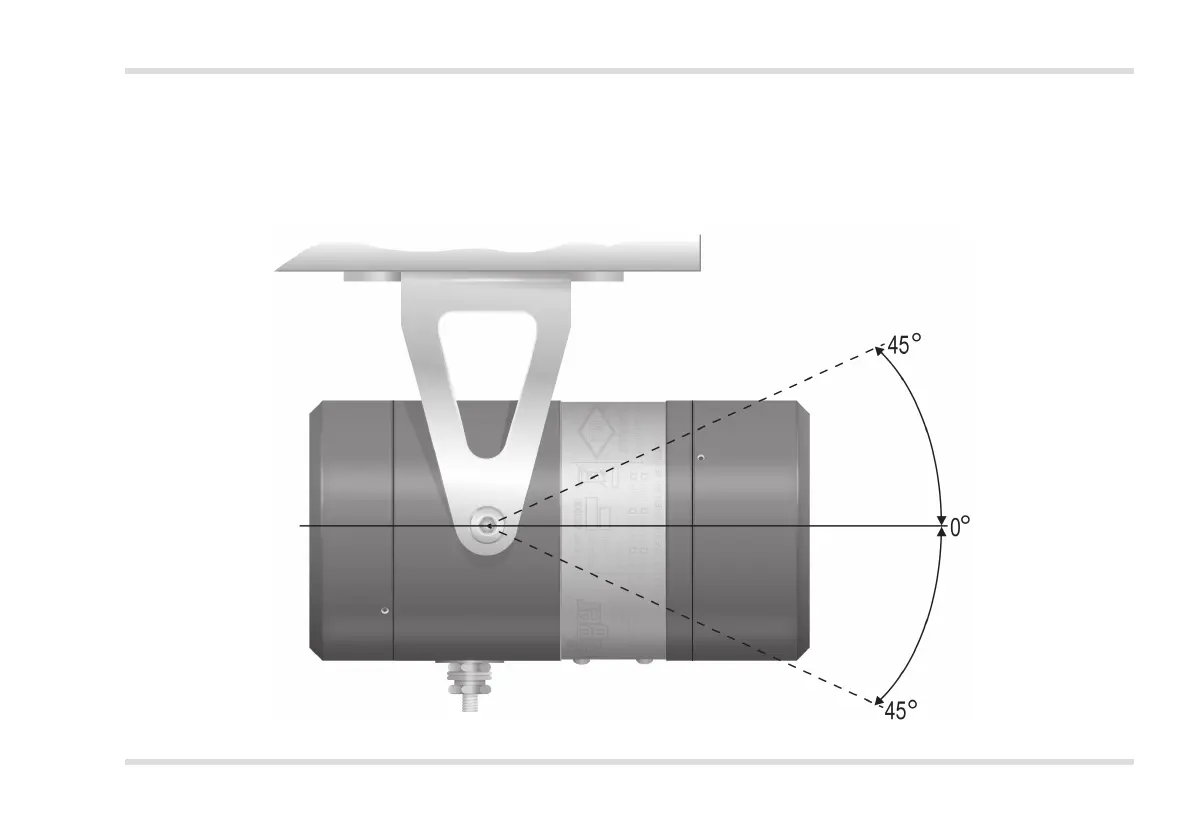

2. Orientate the Dräger Flame 3000 so that it provides the desired coverage and securely x in place. Ensure that it is orientated so that the status
LED and earthing stud are directly beneath the lens.
3901
Use
