Dräger Oxylog User Manual

Waste-gas
socket or
PEEP valve
connection
Patient connection
Connection
to Oxylog

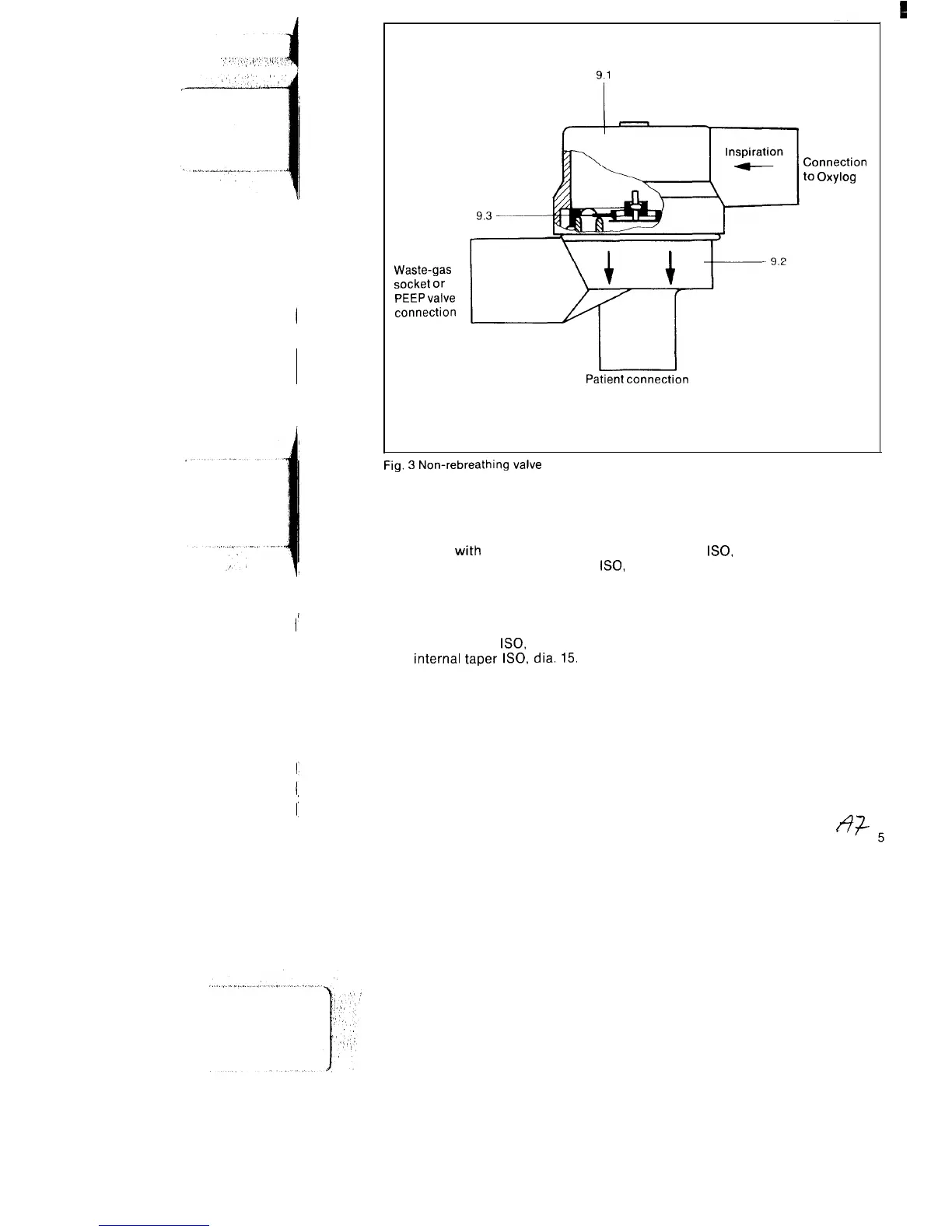

Fig. 3 Non-rebreathing valve
Non-rebreathing valve
(Fig. 3, Items 9.1-9.3)
9.1 Cover with connection for ventila-
tion tubing (external taper ISO,
dia. 22)
9.2
Valve housing with patient connec-
tion and waste-gas socket.
The patient connection features an
external taper ISO, dia. 22 and an
internal taper ISO, dia. 15. The
waste-gas socket has an internal
taper ISO, dia. 22 for connection of
a PEEP valve.
9.3 Diaphragm (complete) comprising
control diaphragm and checkvalve.
The control diaphragm and check
valve are marked yellow and red to
enable their presence and correct
installation position in the valve
housing to be checked.

Dräger Oxylog Specifications

General

Power Source	AC Power, Internal Battery
Peak Flow	Up to 120 L/min
Type	Ventilator
Operating Modes	SIMV
Tidal Volume Range	50 mL to 2000 mL
PEEP	0 to 20 cm H2O
FiO2	21 to 100 %
