Apgar Timer display When the Apgar Timer is running, the Apgar Timer display
shows the elapsed minutes and seconds, and the alert sounds at a
1, 5, and 10 min Apgar time intervals.
Baby Temp alarm indicator
(located in the upper right section
of the controller panel)
Flashes with a three-level audible alarm to indicate that the baby’s
skin temperature is more than 1°C above or below the set
temperature. To silence the alarm for 10 min, press the
Silence/Reset key.
High Temp alarm indicator When the skin temperature probe is attached to the infant and the
skin temperature exceeds 39.0°C (102.2°F), the indicator flashes,
the alarm sounds continuously, and the heater turns off. To silence
the alarm for 2 min, press the Silence/Reset key. When the skin
temperature falls to 38.5°C (101.3°F), the alarm automatically
resets.
Probe alarm indicator In Baby Mode, if the skin temperature probe fails or is worn out,
the indicator flashes, and a three-level alarm sounds. After the
skin temperature probe is replaced, the alarm automatically resets.
If the skin temperature probe fails due to a shorted probe, the Sys-
tem Fail indicator lights, and an alarm sounds. You cannot silence
this alarm. To reset this alarm condition, turn the power off, and
then turn it back on.
Chk Patient alarm indicator In Manual Mode, if the warmer is in operation for longer than 10
min, the indicator illuminates and the alarm sounds one time.
Thereafter, the Chk Patient indicator remains on, and the alarm
sounds every 30 s for the next 5 min. To silence the Chk Patient
alarm for 10 minutes, press the Silence/Reset key within 5
minutes. If, at the end of 5 min (15 min total), the Silence/Reset
key has not been pressed, the heater shuts down and a three-level
alarm sounds continuously.

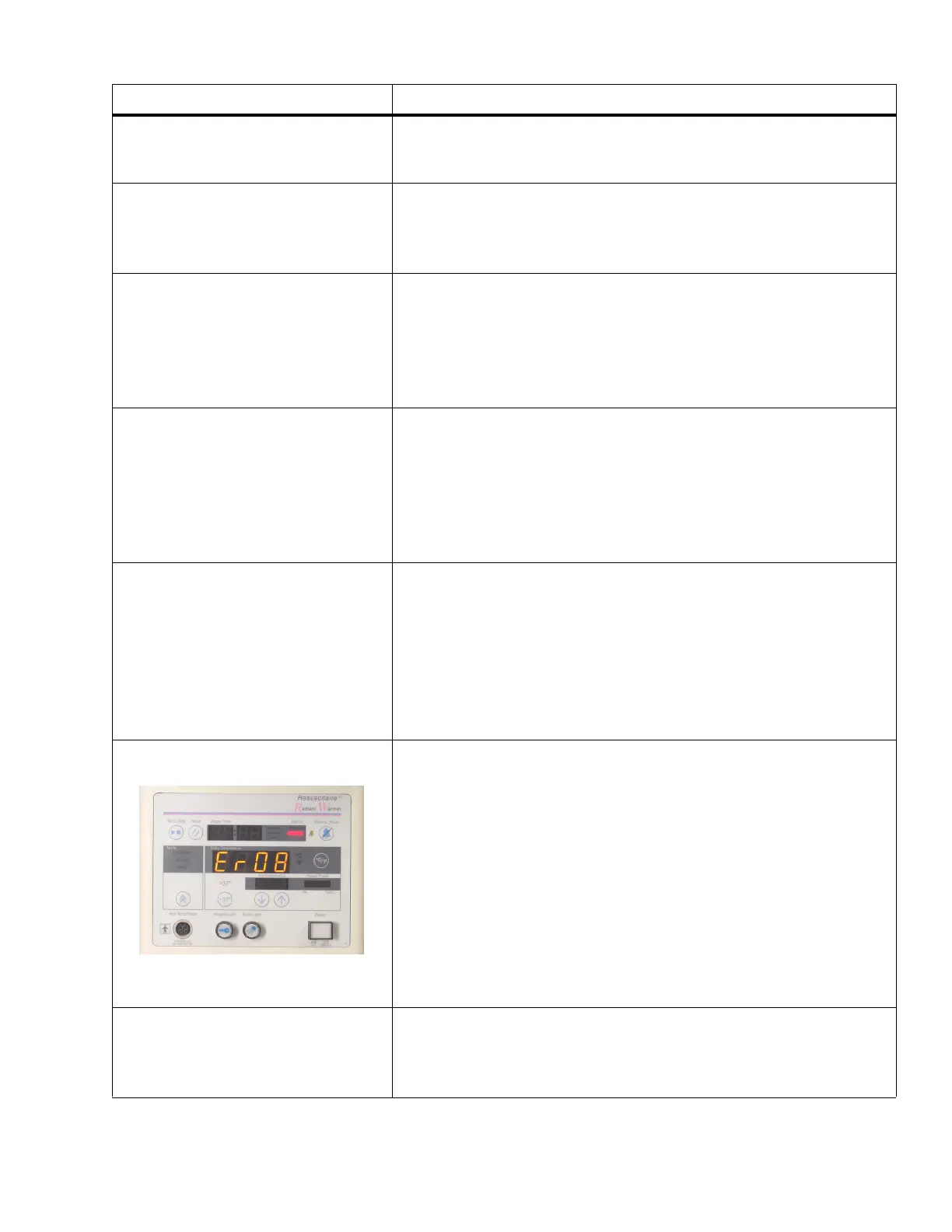

System Fail alarm indicator When an internal malfunction or operator error is detected, the
indicator illuminates, and the alarm sounds continuously. In addi-
tion, an error code, such as Er01 to Er023, appears in the Baby
Temperature display. When a malfunction is detected, the
controller automatically performs the self-test function to
determine whether the fault corrects itself. If the fault does not
correct itself, the error code appears until it is corrected. This
alarm is not resettable. Refer the unit to qualified service
personnel or correct operator error.
NOTE:
The operator can correct Error Code 023 by reducing the
ambient temperature to below 32°C (90°F).
Power Fail alarm indicator When power to the unit is interrupted while the controller is on,
the indicator flashes, and the alarm beeps. When power is restored
to the unit, the alarm automatically resets. Push the power key to
silence the alarm.
