LSN50 LoRa Sensor Node User Manual
16
/
60

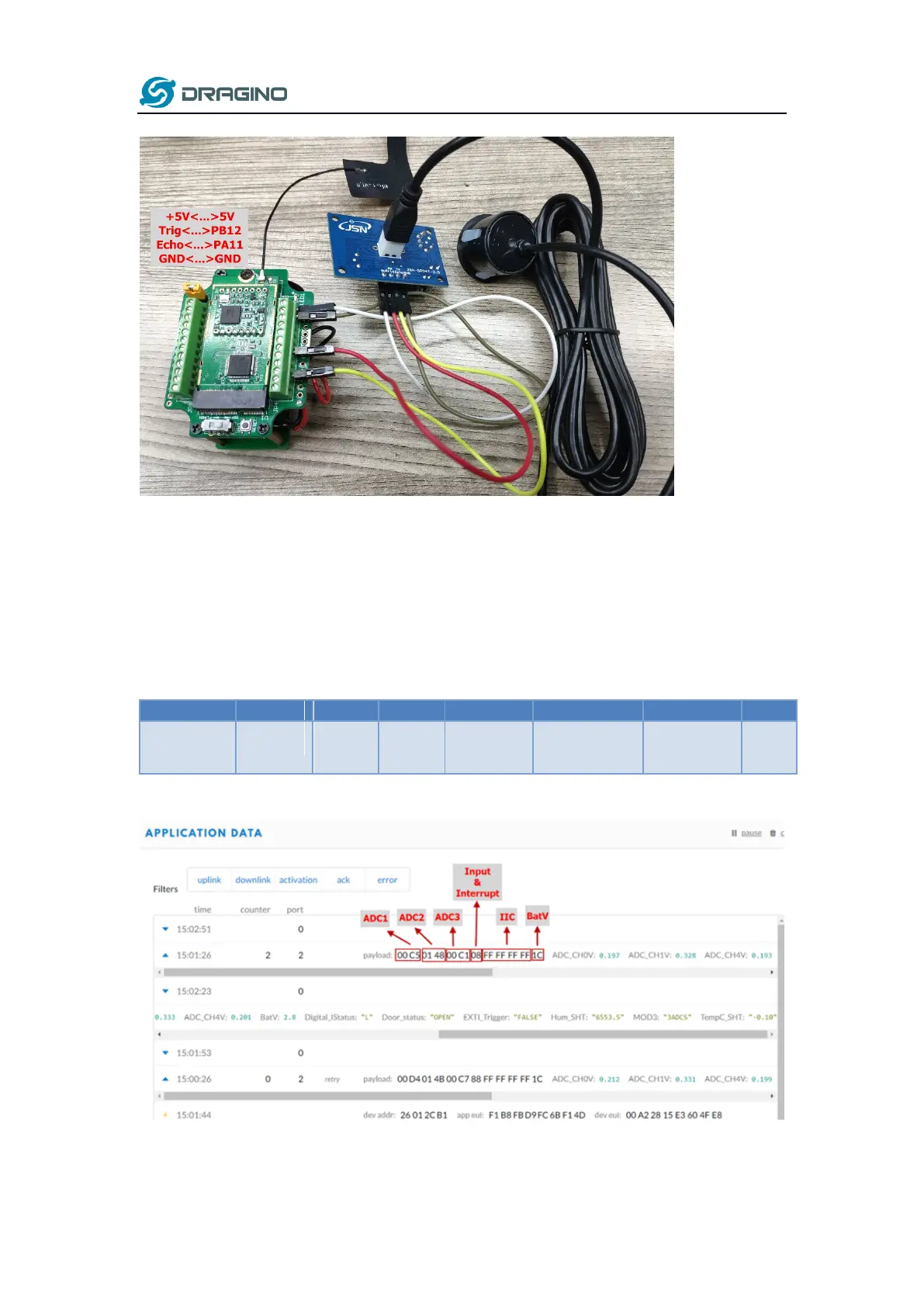

Connection to Ultrasonic Sensor
:
While connecting to Ultrasonic sensor, the sleep c
urrent will jump to 250uA. It is
recommend to use external power source for ultrasonic sensor.
2.3.3
MOD=3 (3 ADC + I2C)
This mode has total 12 bytes. Include 3 x ADC + 1x I2C
Size(bytes)
2
2
2
1
2
2
1
Value
ADC1
(Pin PA0)
ADC2
(PA1)
ADC3
(PA4)
Digital in &
Digital
Interrupt
Temperature
(SHT20 or
SHT31)
Humidity
(SHT20 or
SHT31)
BAT
15
17
