2.3.2 MOD=2 (Distance Mode)

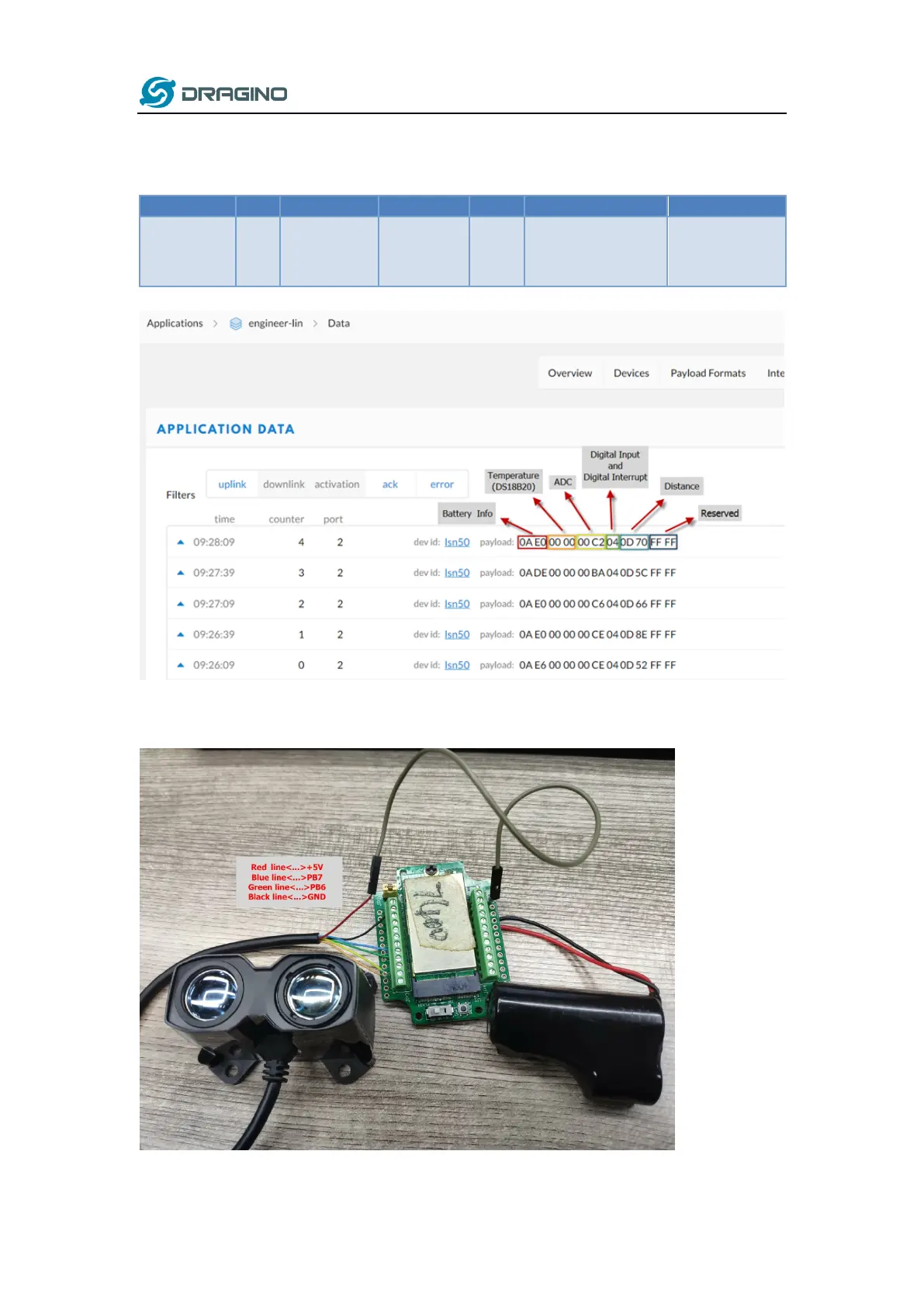

This mode is target to measure the distance. The payload of this mode is totally 11
bytes. The 8
th
and 9
th
bytes is for the distance.
Connection of LIDAR-Lite V3HP:
Size(bytes)
2
2
1
2
2
2
Value
BAT
Temperature
(DS18B20)
Digital in &
Digital
Interrupt
ADC
Distance measure by:
1) LIDAR-Lite V3HP
Or
2) Ultrasonic Sensor
Humidity
(SHT20)
