User Manual for LoRaWAN End Nodes - RS485-LN – RS485 to LoRaWAN Converter User Manual
Step1
:
Download
flash loader
.
Step2
:
Download the
LT Image files
.
Step3
:

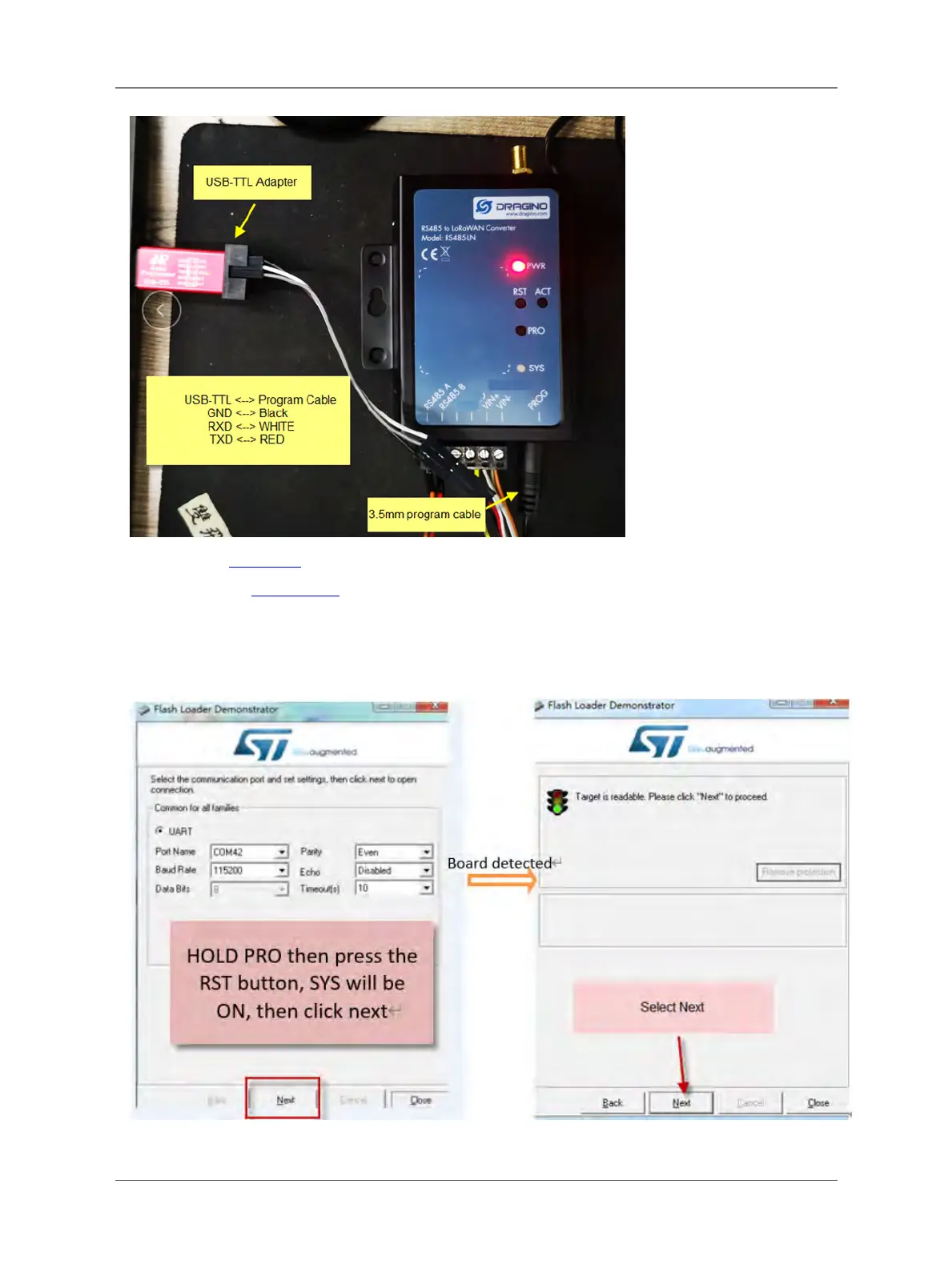

Open flashloader; choose the correct COM port to update.
Hold down the PRO button and then momentarily press the RST reset button and the SYS led will change from
OFF to ON, While SYS LED is RED ON, it means the RS485-LN is ready to be program.
