3.3.5 Uplink on demand
Except uplink periodically, RS485-LN is able to uplink on demand. The server send downlink command to RS485-
LN and RS485 will uplink data base on the command.
Downlink control command:
0x08 command: Poll an uplink with current command set in RS485-LN.
0xA8 command: Send a command to RS485-LN and uplink the output from sensors.

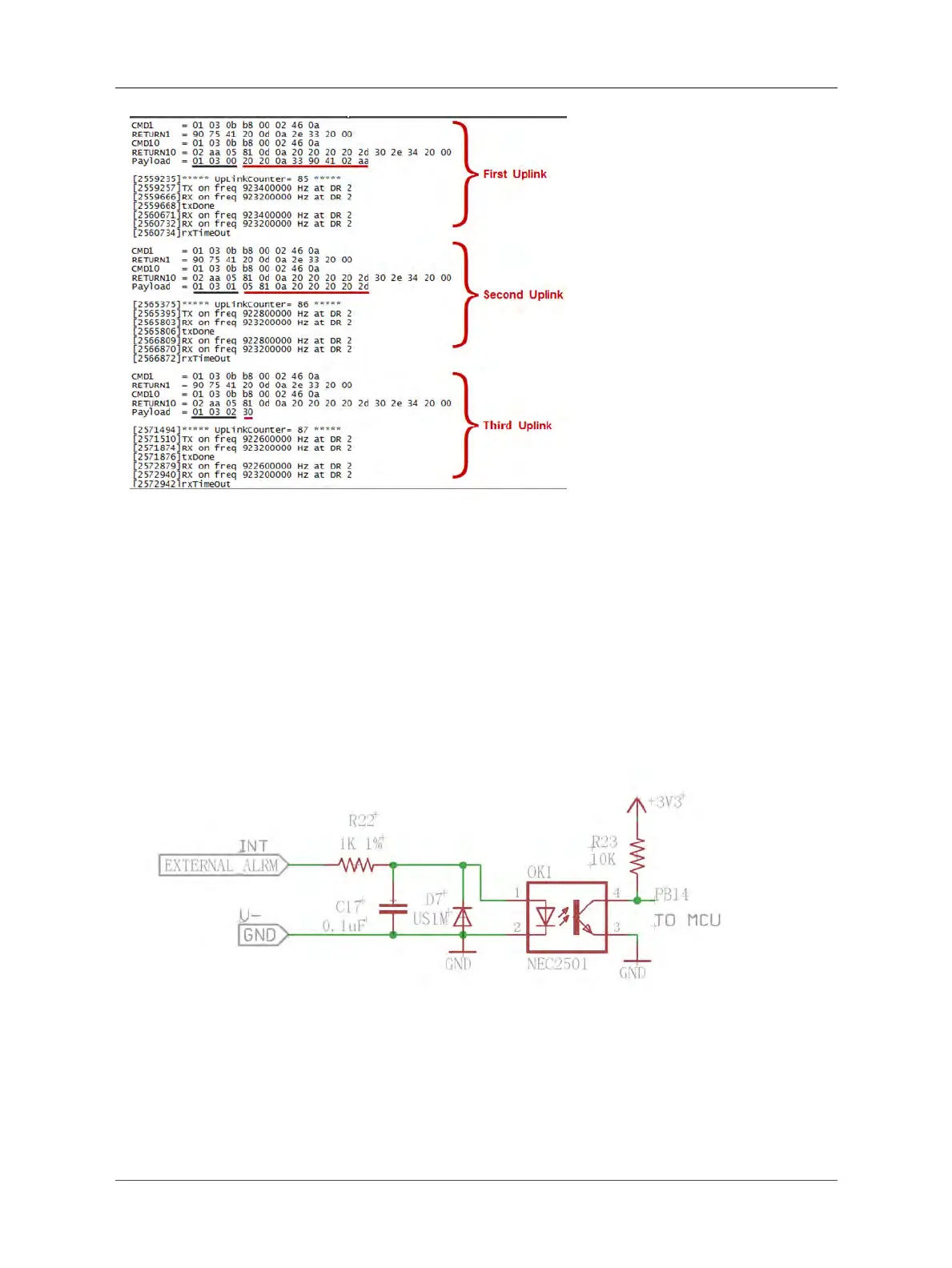

3.3.6 Uplink on Interrupt
RS485-LN support external Interrupt uplink since hardware v1.2 release.
Connect the Interrupt pin to RS485-LN INT port and connect the GND pin to V- port. When there is a high voltage
(Max 24v) on INT pin. Device will send an uplink packet.
3.4 Uplink Payload
Page 22 / 38 - last modified by Bei Jinggeng on 2022/07/08 16:50
