25

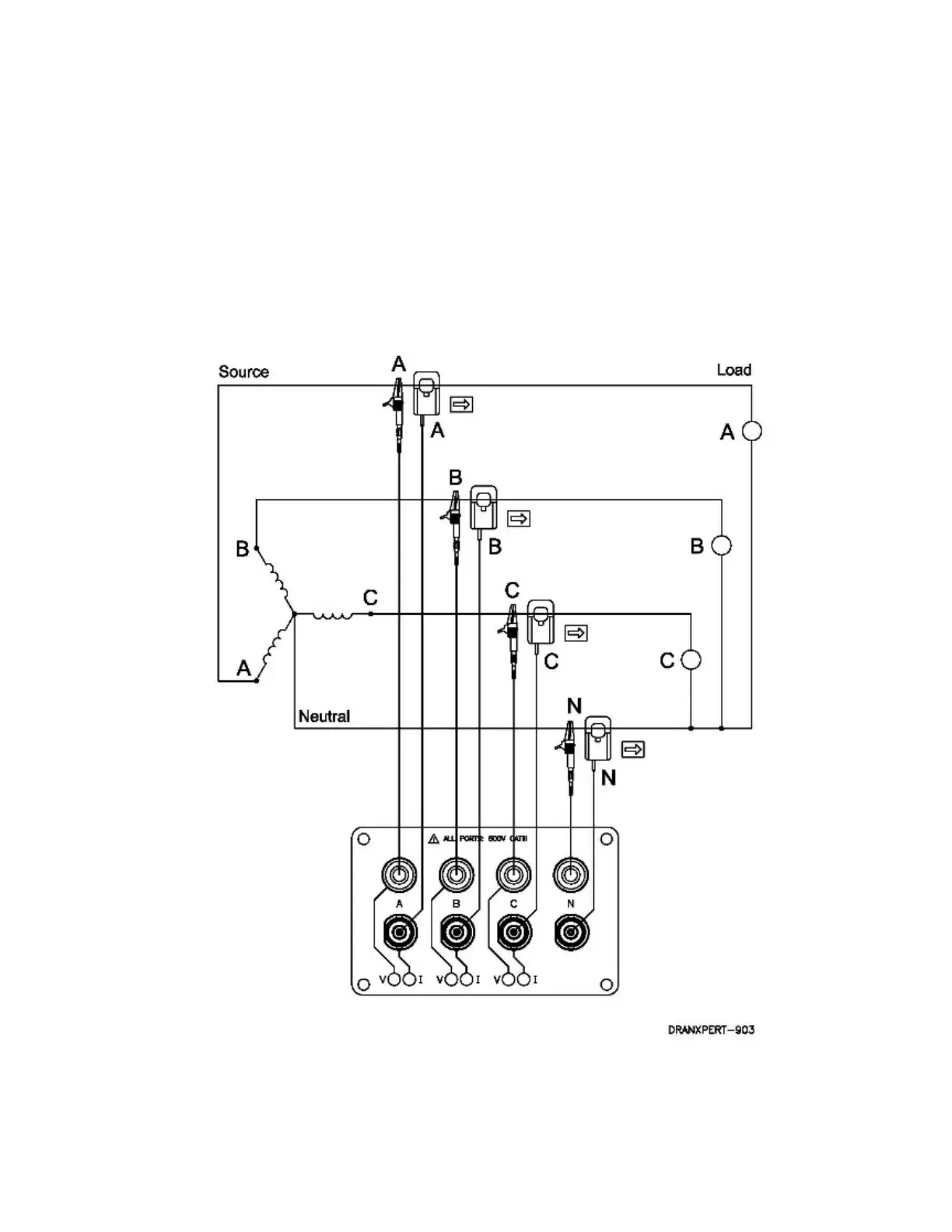

3 Phase, Four Wire Wye
Channels A, B, and C are connected to the voltage and current probes.
The neutral is connected to common and is the reference for the three
voltage channels. Note that the Neutral current measurement is optional.
NOTE Be sure to connect the current probes with the arrow
pointing towards the load or an erroneous power reading
will result.
