Single Phase

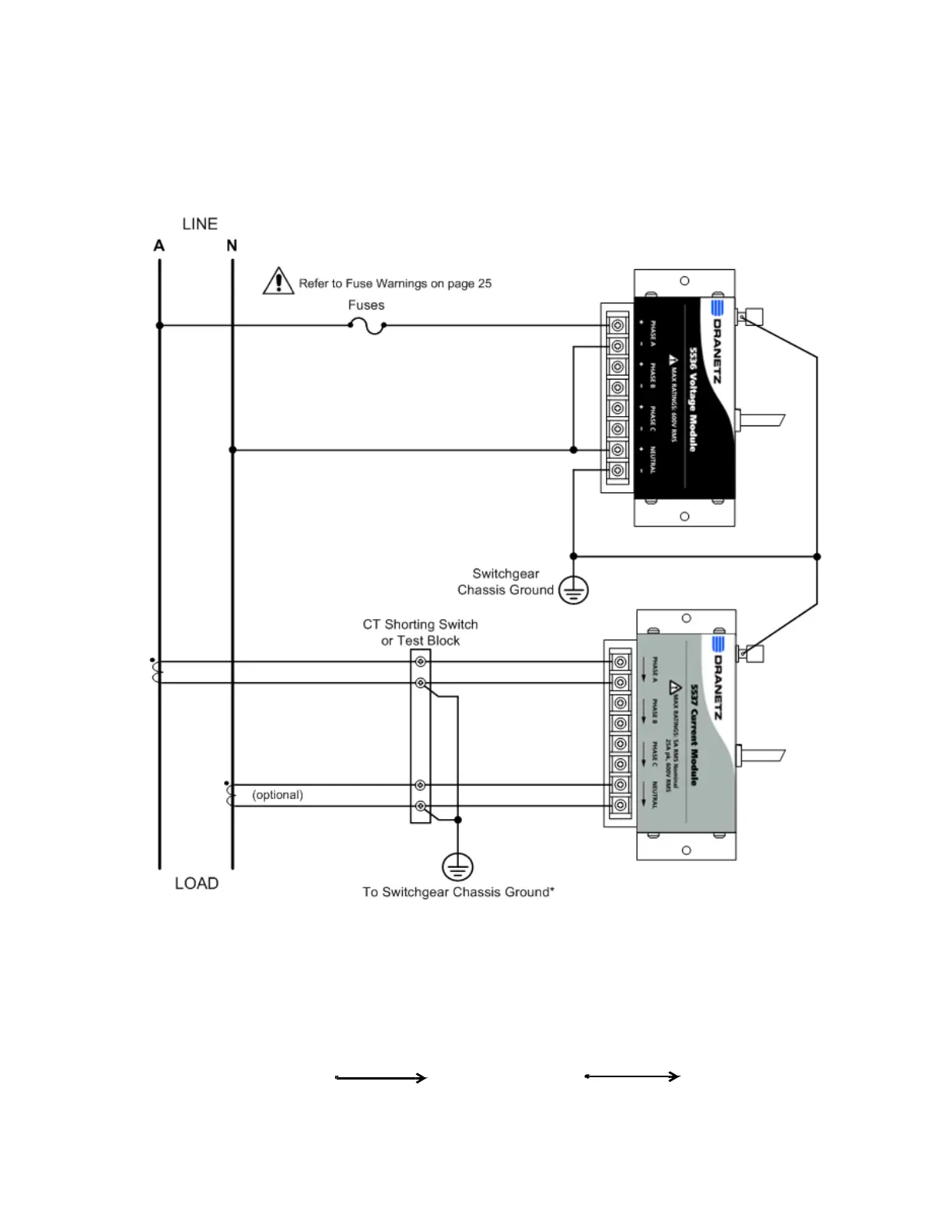

When making connections to a single phase circuit, connect the voltage
and current as shown below. The figure also includes monitoring the
Neutral to Ground voltage and Neutral currents. Neutral to ground
measurements are important but optional.
CAUTION Connections must be performed in compliance with all
safety requirements applicable to your installation.
*NOTE Connections of the CT leg to ground is recommended,
but not required for proper operation.
Phasor Diagrams
V
A
0
º
I
A
HDPQ-DN-MZP-101
