Dranetz HDPQ-DN-MZP User Manual

33

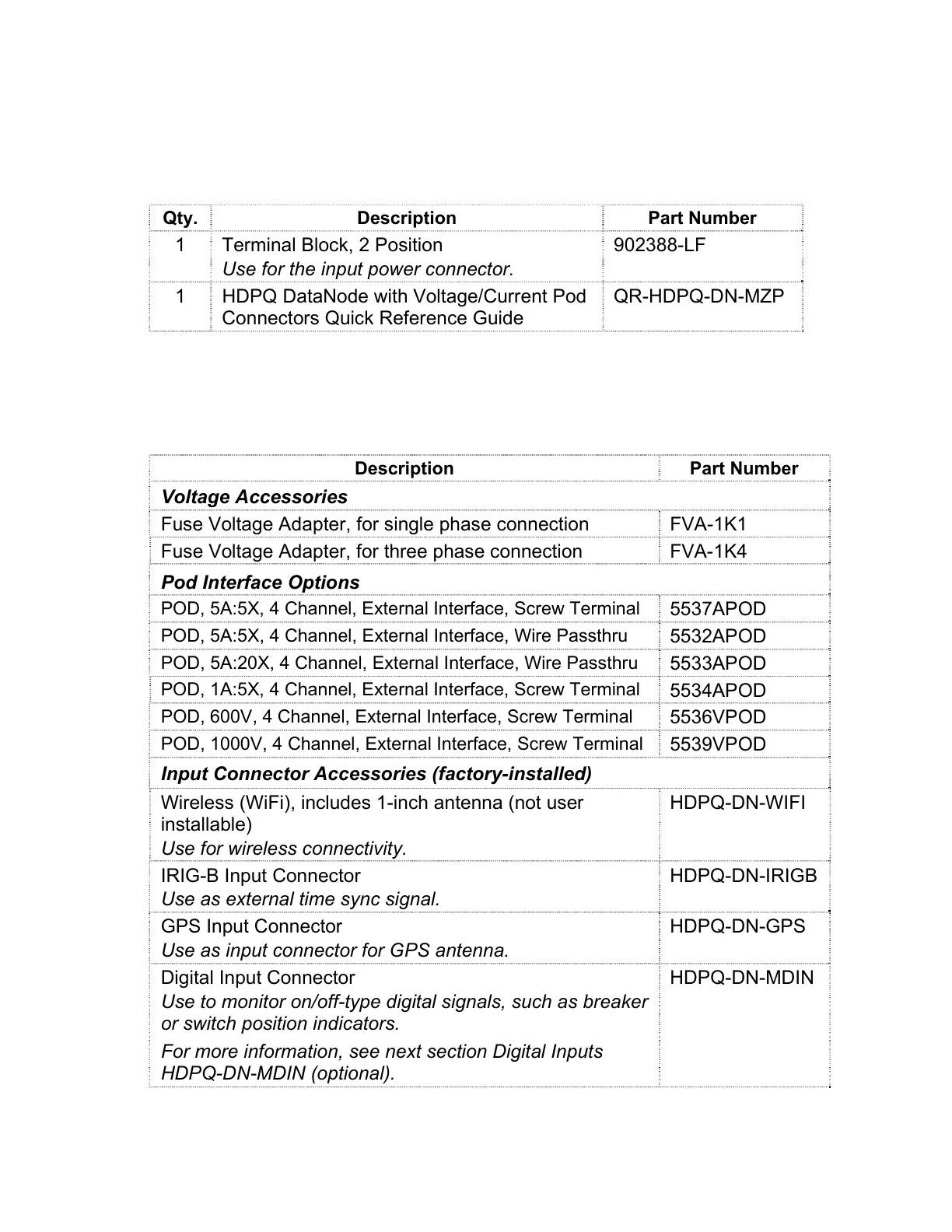

ACCESSORIES LIST
Standard Accessories
The following table lists the standard accessories for Dranetz HDPQ-DN-
MZP.
Qty. Description Part Number
1 Terminal Block, 2 Position
Use for the input power connector.
902388-LF
1 HDPQ DataNode with Voltage/Current Pod
Connectors Quick Reference Guide
QR-HDPQ-DN-MZP
Optional Accessories
The following table lists the optional accessories for Dranetz HDPQ-DN-
MZP.
Description Part Number
Voltage Accessories
Fuse Voltage Adapter, for single phase connection FVA-1K1
Fuse Voltage Adapter, for three phase connection FVA-1K4
Pod Interface Options
POD, 5A:5X, 4 Channel, External Interface, Screw Terminal
5537APOD
POD, 5A:5X, 4 Channel, External Interface, Wire Passthru
5532APOD
POD, 5A:20X, 4 Channel, External Interface, Wire Passthru
5533APOD
POD, 1A:5X, 4 Channel, External Interface, Screw Terminal
5534APOD
POD, 600V, 4 Channel, External Interface, Screw Terminal
5536VPOD
POD, 1000V, 4 Channel, External Interface, Screw Terminal
5539VPOD
Input Connector Accessories (factory-installed)
Wireless (WiFi), includes 1-inch antenna (not user
installable)
Use for wireless connectivity.
HDPQ-DN-WIFI
IRIG-B Input Connector
Use as external time sync signal.
HDPQ-DN-IRIGB
GPS Input Connector
Use as input connector for GPS antenna.
HDPQ-DN-GPS
Digital Input Connector
Use to monitor on/off-type digital signals, such as breaker
or switch position indicators.
For more information, see next section Digital Inputs
HDPQ-DN-MDIN (optional).
HDPQ-DN-MDIN

Dranetz HDPQ-DN-MZP Specifications

General

Brand	Dranetz
Model	HDPQ-DN-MZP
Category	Measuring Instruments
Language	English
