Controls, Indicators and Connectors
Top View and Front View
Top Panel
The top panel shows the user replaceable Battery compartment.
Internal Battery
Sealed, rechargeable NiMH (Nickel Metal Hydride) cell
The unit will always operate on the normal power
source 50/60Hz, 90-250VAC or 100-300VDC. In the
event of loss of power, the unit will seamlessly
switch to the internal battery backup and will switch
back to the normal power source when restored.
Front Panel

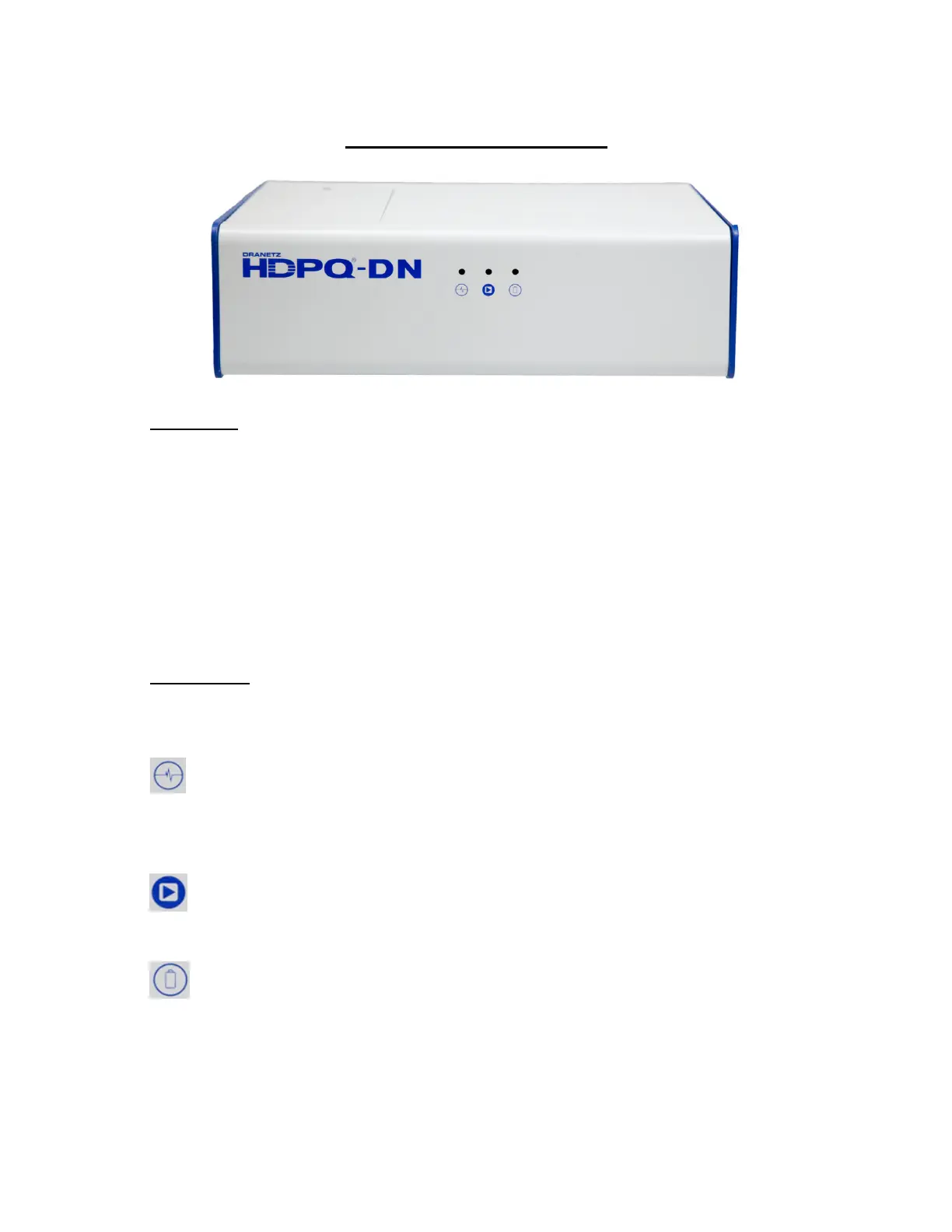

The front panel shows the following three (3) LED indicators:
Status Indicator
Monitoring On
Indicator
LED will blink in a heartbeat fashion when power
switch is turned on and the unit is operating normally.
LED will light steadily if monitoring is on. Monitoring
is off when light is off.
Battery Indicator
LED will light steadily when operating on battery
backup.
