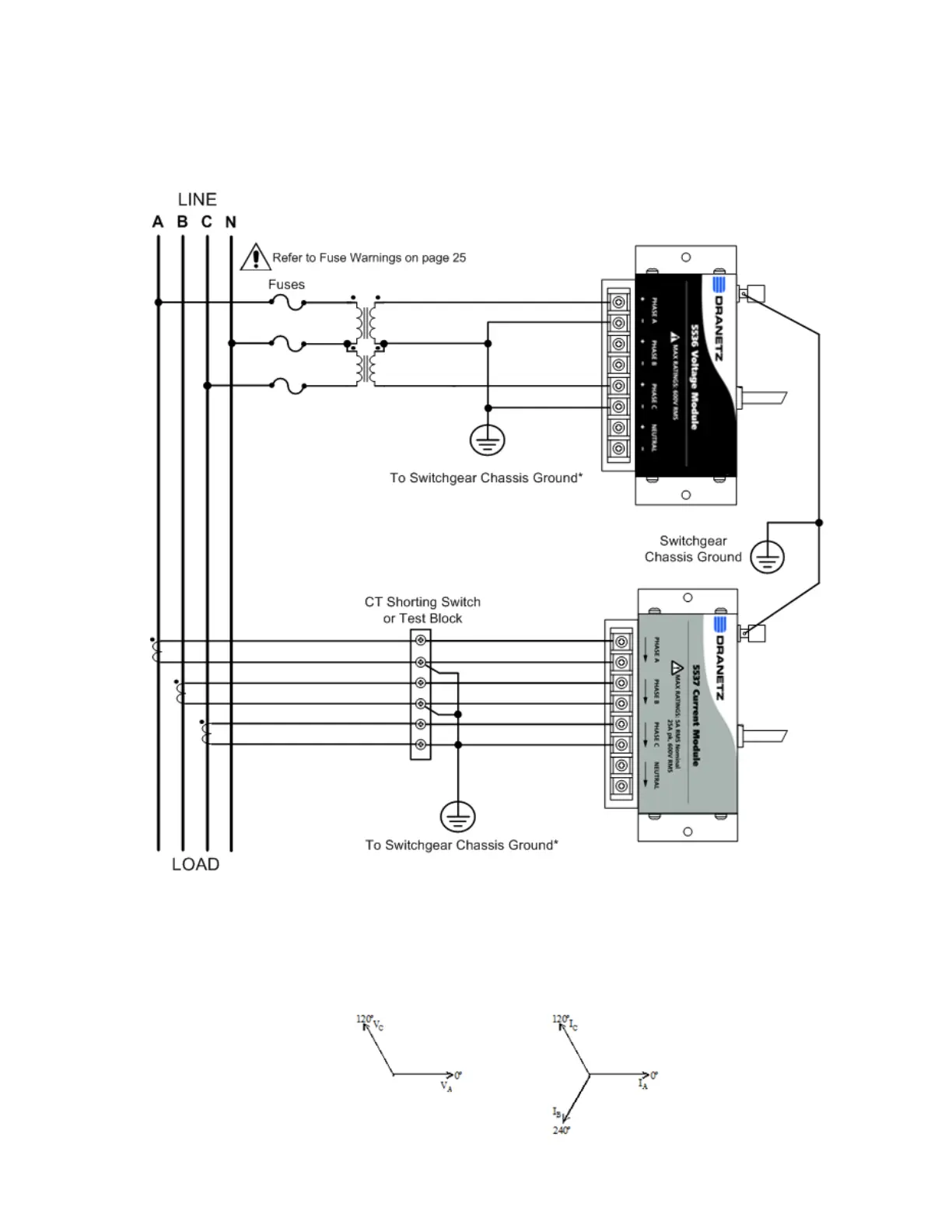

2 ½ Element Without Voltage Channel B

Channels A and C are connected to the voltage source. Channels A, B

and C are connected to current sources. The neutral is connected to

common and is the reference for the three channels.

CAUTION Connections must be performed in compliance with all

safety requirements applicable to your installation.

*NOTE Connections of the CT leg to ground is recommended,

but not required for proper operation.

Phasor Diagrams

HDPQ-DN-MZP-106
